AA60-ACKFS (1981)

Toyota Carina Fr

Production Sep 1981 - Jul 1985
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)CP

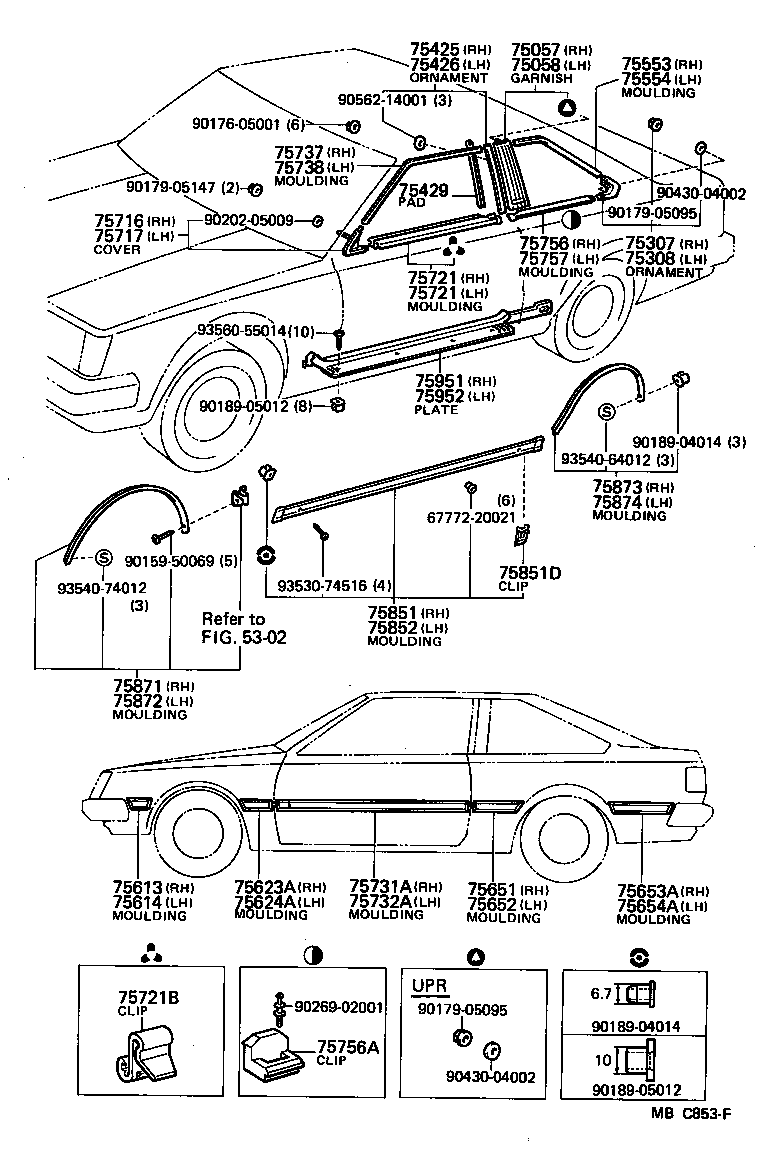

Click highlighted areas on diagram

diagram 5302 6777220021 75057 75058 75307 75308 75425 75426 75429 75553 75554 75613 75614 75623A 75624A 75651 75652 75653A 75654A 75716 75717 75721 75721 75721B 75731A 75732A 75737 75738 75756 75756A 75757 75851 75851D 75852 75871 75872 75873 75874 75951 75952 9015950069 9017605001 9017905095 9017905095 9017905147 9018904014 9018904014 9018905012 9018905012 9020205009 9026902001 9043004002 9043004002 9056214001 9353074516 9354064012 9354074012 9356055014
Part # Description Qty Price
75057 - GARNISH SUB-ASSY, CENTER PILLAR, OUTER RH
75057-19175

AA60,SA60..CP..SG

 1
75057-19145

AA60,SA60..CP..SG

 1
75057-19205

AA60..CP..SG

 1
75058 - GARNISH SUB-ASSY, CENTER PILLAR, OUTER LH
75058-19145

AA60,SA60..CP..SG

 1
75058-19205

AA60..CP..SG

 1
75058-19175

AA60,SA60..CP..SG

 1
75307 - ORNAMENT SUB-ASSY, QUARTER PANEL, RH
75307-19045

AA60,SA60,TA63..CP..(SE,SG)

 1
75308 - ORNAMENT SUB-ASSY, QUARTER PANEL, LH
75308-19045

AA60,SA60,TA63..CP..(SE,SG)

 1
75425 - ORNAMENT, FRONT DOOR, RH
75425-14020

AA60,RA63,SA60,TA61,63..CP..(GT,SG,ST)

 1
75425-14030

AA60,SA60,TA61,63..CP..(GT,GTT,SG,ST)

 1
75425-14030

AA6#,SA60,TA63..CP

 1
75426 - ORNAMENT, FRONT DOOR, LH
75426-14030

AA6#,SA60,TA63..CP

 1
75426-14020

AA60,RA63,SA60,TA61,63..CP..(GT,SG,ST)

 1
75426-14030

AA60,SA60,TA61,63..CP..(GT,GTT,SG,ST)

 1
75429 - PAD, FRONT DOOR ORNAMENT
75429-14010

AA6#,RA63,SA60,TA61,63..CP

 2
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75643-14020

AA60,SA60,TA63..CP..(SE,SG)

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75644-14020

AA60,SA60,TA63..CP..(SE,SG)

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-14070

AA60,CA60,SA60..SG

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75611-14070

AA60,CA60,SA60..SG

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-14040

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-14050

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-14150

AA6#,RA63,SA60,TA61,63..CP

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-14120

AA6#,RA63,SA60,TA61,63..CP

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-14140

AA60,CA60,SA60..SG

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-14130

AA60,CA60,SA60..SG

 1
75716 - COVER, FRONT DOOR BELT MOULDING END, FRONT RH
75716-14070

AA60,SA60,TA63..CP..(SE,SG)

 1
75717 - COVER, FRONT DOOR BELT MOULDING END, FRONT LH
75717-14070

AA60,SA60,TA63..CP..(SE,SG)

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-14170

AA60,SA60,TA63..CP..(SE,SG)

 1
75710-14180

AA60,SA60..CP..(SE,SG)

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-14170

AA60,SA60,TA63..CP..(SE,SG)

 1
75710-14180

AA60,SA60..CP..(SE,SG)

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
68211-14090

AA60,RA63,SA60,TA61,63..CP

 14
68211-14120

AA6#,SA60,TA63..CP

 14
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-14170

AA6#,RA63,SA60,TA61,63..CP

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-14150

AA6#,RA63,SA60,TA61,63..CP

 1
75737 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75751-14070

AA60,SA60,TA63..CP..(SE,SG)

 1
75738 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75752-14070

AA60,SA60,TA63..CP..(SE,SG)

 1
75756 - MOULDING, QUARTER BELT, RH
75647-14010

AA60,SA60,TA63..CP..(SE,SG)

 1
75756A - CLIP, BELT SIDE MOULDING
75395-14050

AA6#,RA63,SA60,TA61,63..CP

 12
75757 - MOULDING, QUARTER BELT, LH
75648-14010

AA60,SA60,TA63..CP..(SE,SG)

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-19135

AA6#,CA6#,KA67,RA63,SA60,TA6#..GT,GTT,SE,SG,ST

 1
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-14050

AA6#,CA6#,KA67,RA63,SA60,TA6#..GT,GTT,SE,SG,ST

 6
75852 - MOULDING, ROCKER PANEL, LH
75860-19155

AA6#,CA6#,KA67,RA63,SA60,TA6#..GT,GTT,SE,SG,ST

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1411001

AA6#,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
67913-1411004

AA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
67913-1411006

AA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-1409001

AA6#,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
67914-1409006

AA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
67914-1409004

AA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
Common parts
67772-20021
90159-50069
90176-05001
90179-05095
90179-05147
90189-04014
90189-05012
90202-05009
90269-02001
90430-04002
90562-14001
93530-74516
93540-64012
93540-74012
93560-55014
Linked diagrams
5302
