AA60-ACHSS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )AA60,CA6#,KA67,SA60,TA67

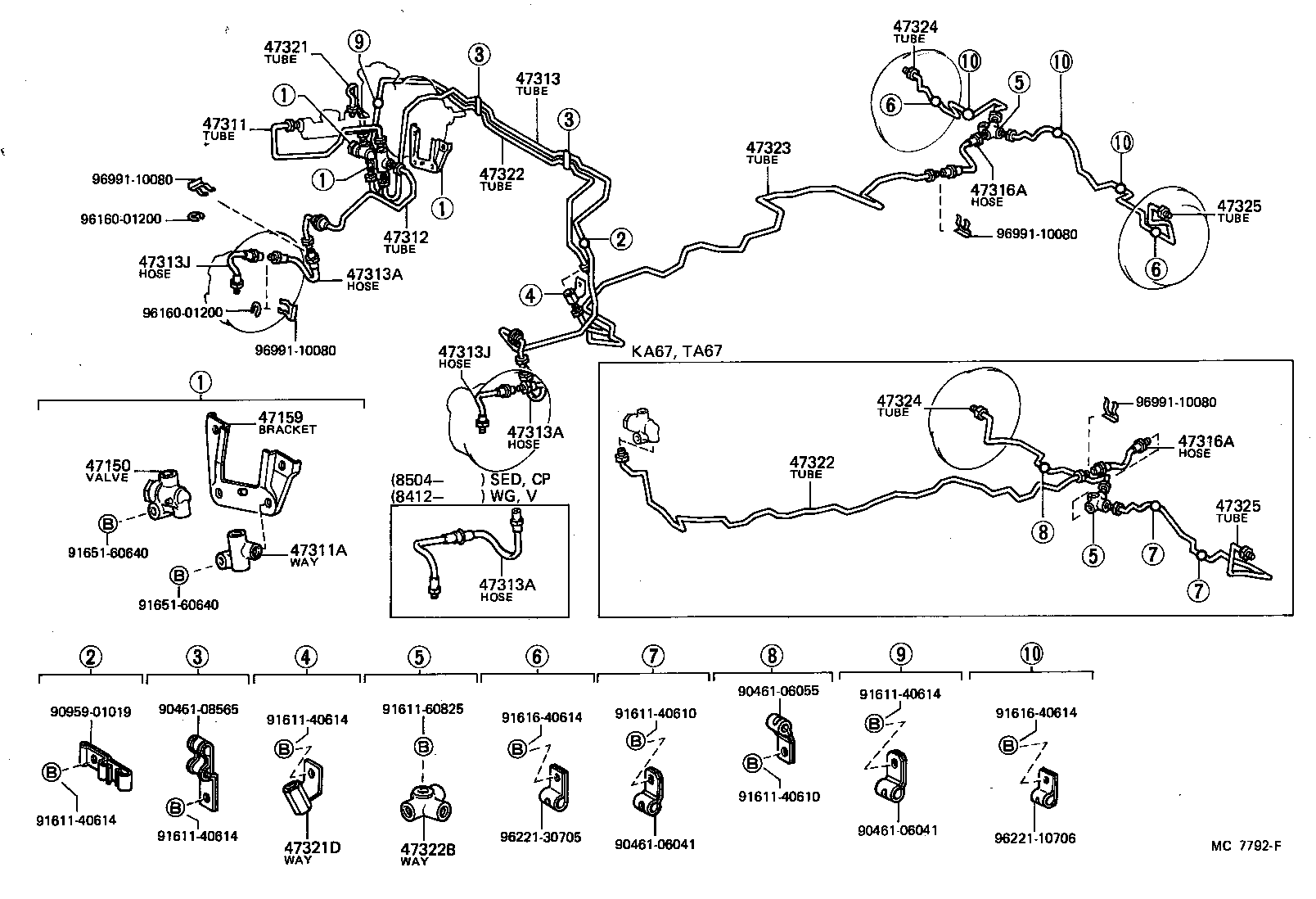

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313J 47313J 47316A 47316A 47321 47321D 47322 47322 47322B 47323 47324 47324 47325 47325 9046106041 9046106041 9046106055 9046108565 9095901019 9161140610 9161140610 9161140614 9161140614 9161140614 9161140614 9161160825 9161640614 9161640614 9165160640 9165160640 9616001200 9616001200 9622110706 9622130705 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14020

AA60,CA6#,KA67,SA60,TA67

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

AA60,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14110

AA60,RA63,SA60,TA6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

AA60,CA60,SA60

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

AA60,CA60,SA60

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

AA60,RA63,SA60,TA6#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10056

AA60,CA6#,SA60

 1
47322 - TUBE, REAR BRAKE, NO.2
47329-14010

AA60,CA6#,SA60

 1
47322 - TUBE, REAR BRAKE, NO.2
47329-14010

AA60,CA6#,SA60

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

AA60,CA6#,KA67,SA60,TA67

 1
47323 - TUBE, REAR BRAKE, NO.3
47322-14060

AA60,SA60

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-14042

AA60,CA60,SA60

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-14042

AA60,CA60,SA60

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-14052

AA60,CA60,SA60

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-14052

AA60,CA60,SA60

 1
Common parts
90461-06041
90461-06055
90461-08565
90959-01019
91611-40610
91611-40614
91611-60825
91616-40614
91651-60640
96160-01200
96221-10706
96221-30705
96991-10080
