AA60-ACHSS (1981)
Toyota Carina Fr
Production
Sep 1981
-
May 1983
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )3AU

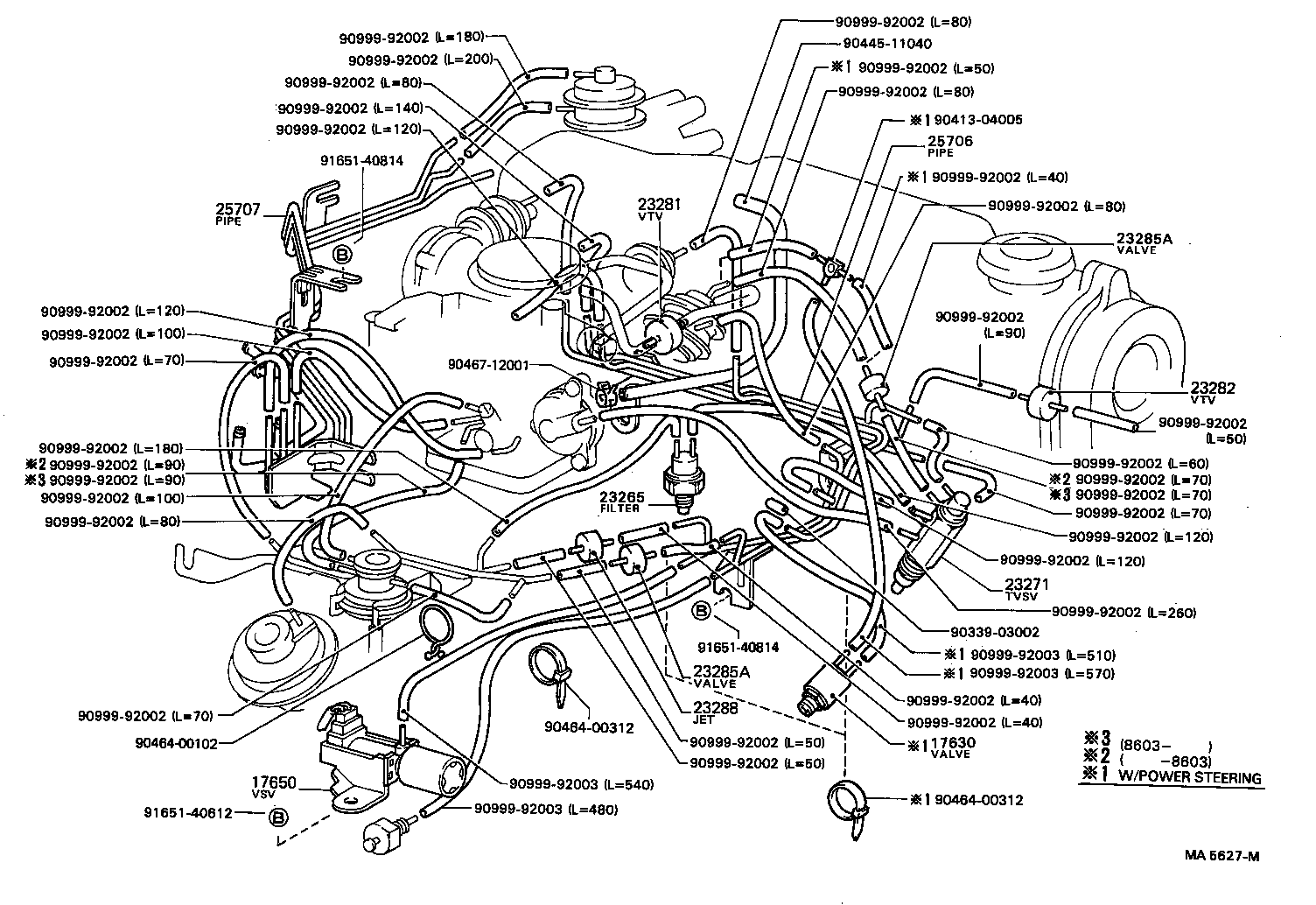

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
3AU..AA60..SE,SG,ST W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-14130 |
3AU..AA60 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3AU..AA60 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02073 |
3AU..AA60 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01086 |
3AU..AA60 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01084 |
3AU..AA60 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3AU..AA60 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3AU..AA60 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04013 |
3AU..AA60 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-15100 |
3AU..AA60 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-15070 |
3AU..AA60 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90445-11040 | ||||
| 90464-00102 | ||||
| 90464-00312 | ||||
| 90467-12001 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
(8109- )3AU,4AGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
