AA60-ACHFS (1981)

Toyota Carina Fr

Production Sep 1981 - Jul 1985
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8804)

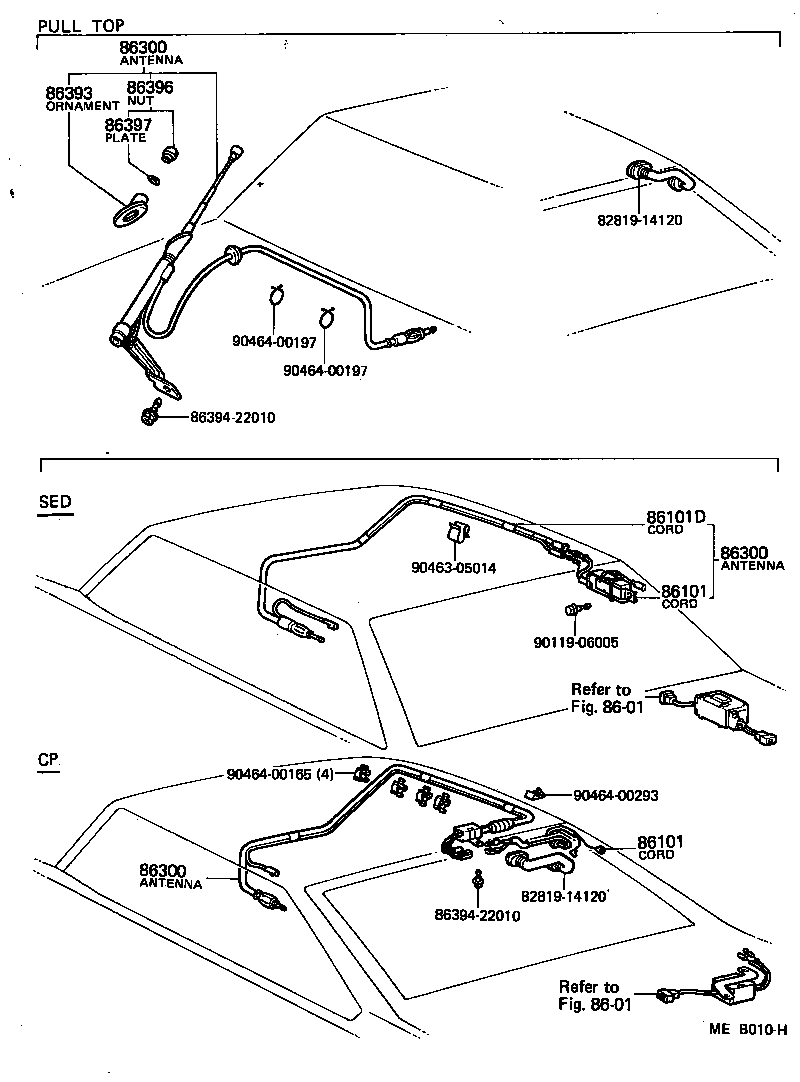

Click highlighted areas on diagram

diagram 8281914120 8281914120 8601 8601 86101 86101 86101D 86300 86300 86300 86393 8639422010 8639422010 86396 86397 9011906005 9046305014 9046400165 9046400197 9046400197 9046400293
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-14300

AA60,SA60,TA63..CP..(GTT,SG,ST)

PULL TOP

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14300

AA60,SA60,TA63..CP..(GTT,SG,ST)

PULL TOP

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14300

AA60,SA60,TA63..CP..(GTT,SG,ST)

PULL TOP

 1
86393 - ORNAMENT, ANTENNA
86392-14020

AA60,SA60,TA63..CP..(GTT,SG,ST)

 1
86396 - NUT, ANTENNA
86396-14010

AA6#,CA6#,KA67,SA60,TA63,67..DLX,GT,GTT,SG,ST,STD

 1
Common parts
82819-14120
86394-22010
90119-06005
90463-05014
90464-00165
90464-00197
90464-00293
Linked diagrams
8601
