AA60-ACHFS (1981)

Toyota Carina Fr

Production Sep 1981 - Jul 1985
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)CP

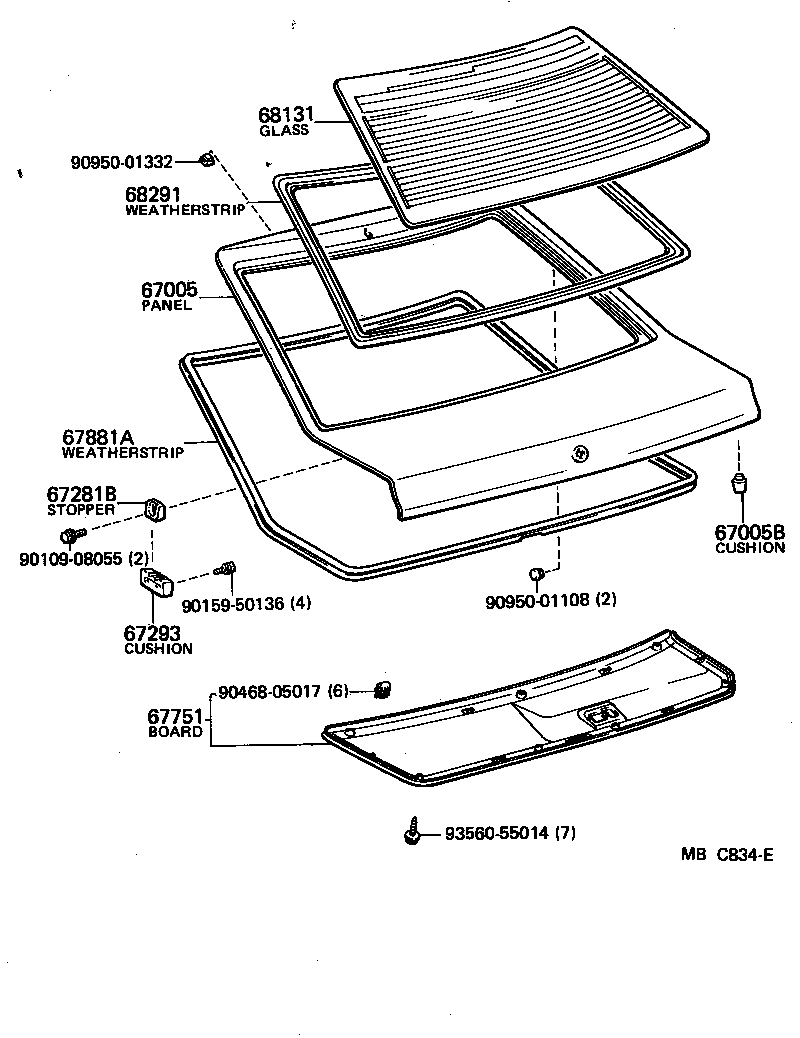

Click highlighted areas on diagram

diagram 67005 67005B 67281B 67293 67751 67881A 68131 68291 9010908055 9015950136 9046805017 9095001108 9095001332 9356055014
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-14400

AA60,SA60,TA63..CP..(SG,ST)

 1
67005-14440

AA6#,SA60..CP..(GT,SG,ST)

W/7 WAY PARCEL TRAY

 1
67005-14400

AA60..CP..SG

 1
67005-14440

AA6#..CP..(GT,SG,ST)

W/7 WAY PARCEL TRAY

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09020

AA6#,RA63,SA60,TA61,63..CP

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-14030

AA6#,RA63,SA60,TA61,63..CP

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-14020

AA6#,RA63,SA60,TA61,63..CP

 2
67751 - BOARD, BACK DOOR TRIM
64781-1404001

AA6#,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
64781-1404004

AA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
64781-1404006

AA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-14090

AA6#,SA60,TA63..CP

 1
67881-14070

AA6#,RA63,SA60,TA61,63..CP

 1
68131 - GLASS, BACK DOOR
68131-14130

AA60..CP..SG

MY ROAD,BRONZE

 1
68131-14050

AA6#,SA60,TA63..CP..(GT,GTT,SG,ST)

*EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,T=4.0,*EHTT

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-14030

AA6#,RA63,SA60,TA61,63..CP

 1
Common parts
90109-08055
90159-50136
90468-05017
90950-01108
90950-01332
93560-55014
