AA60-ACHFS (1981)

Toyota Carina Fr

Production Sep 1981 - Jul 1985
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

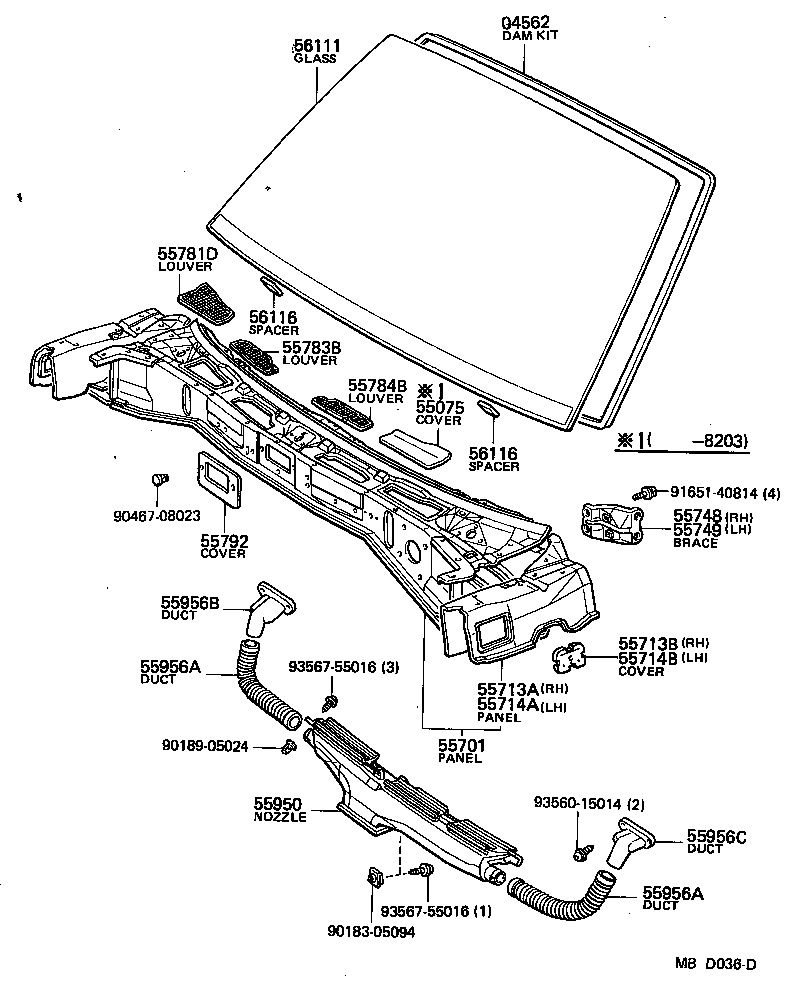

Click highlighted areas on diagram

diagram 04562 55075 55701 55713A 55713B 55714A 55714B 55748 55749 55781D 55783B 55784B 55792 55950 55956A 55956A 55956B 55956C 56111 56116 56116 9018305094 9018905024 9046708023 9165140814 9356015014 9356755016 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30030

AA6#,CA6#,RA63,SA60,TA6#

 1
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55792-14020

AA60,CA6#,RA63,SA60,TA6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-14400

AA60,RA63,SA60,TA6#

 1
55700-14401

AA6#,SA60,TA63

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
62161-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
62162-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55748 - BRACE, COWL TOP TO PILLAR, RH
55748-14020

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55749 - BRACE, COWL TOP TO PILLAR, LH
55749-14050

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14070

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14090

AA60,CA6#,RA63,SA60,TA6#

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-14020

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
56111 - GLASS, WINDSHIELD
56111-14380

AA60,SA60,TA63..CP..(GTT,SG,ST)

*TZT,T=5.0

 1
56111-14300

AA60..CP..SG

MY ROAD,BRONZE

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14020

AA6#,CA6#,KA67,RA63,SA60,TA6#

LWR,20 X 7.5 X 11.5

 2
56116 - SPACER, WINDSHIELD GLASS
56116-14020

AA6#,CA6#,KA67,RA63,SA60,TA6#

LWR,20 X 7.5 X 11.5

 2
Common parts
90183-05094
90189-05024
90467-08023
91651-40814
93560-15014
93567-55016
