AA60-ACHFS (1981)

Toyota Carina Fr

Production Sep 1981 - Jul 1985
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )3AU

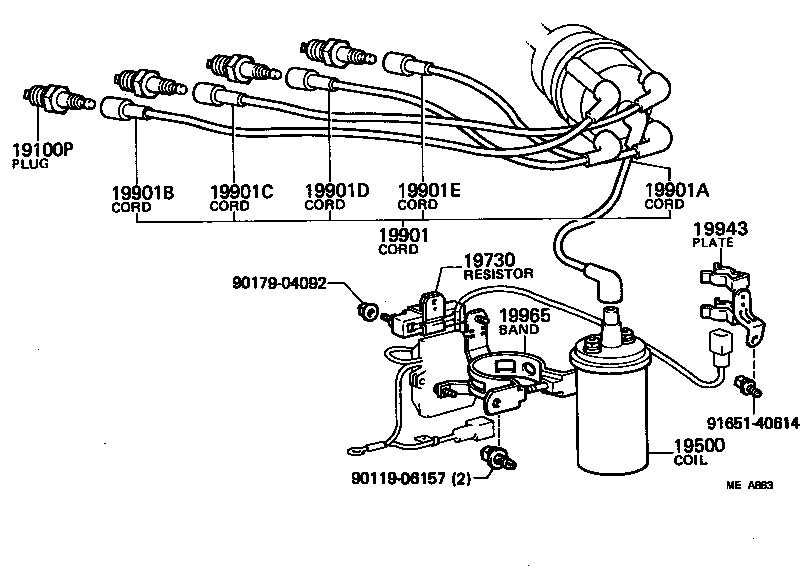

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19943 19965 9011906157 9017904092 9165140614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01085

3AU..AA60

W14EX−U11,W14EX-U 11

 4
19500 - COIL ASSY, IGNITION
90919-02083

3AU..AA60

 1
19730 - RESISTOR, IGNITION COIL
90919-04030

3AU..AA60

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21284

3AU..AA60

 1
19901A - CORD, COIL RESISTIVE
90919-13131

3AU..AA60

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12356

3AU..AA60

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12357

3AU..AA60

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12358

3AU..AA60

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12359

3AU..AA60

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-15011

3AU..AA60

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03077

3AU..AA60

 1
Common parts
90119-06157
90179-04092
91651-40614
