AA60-ACHES (1982)

Toyota Carina Fr

Production May 1982 - May 1983
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8804)CP,WG

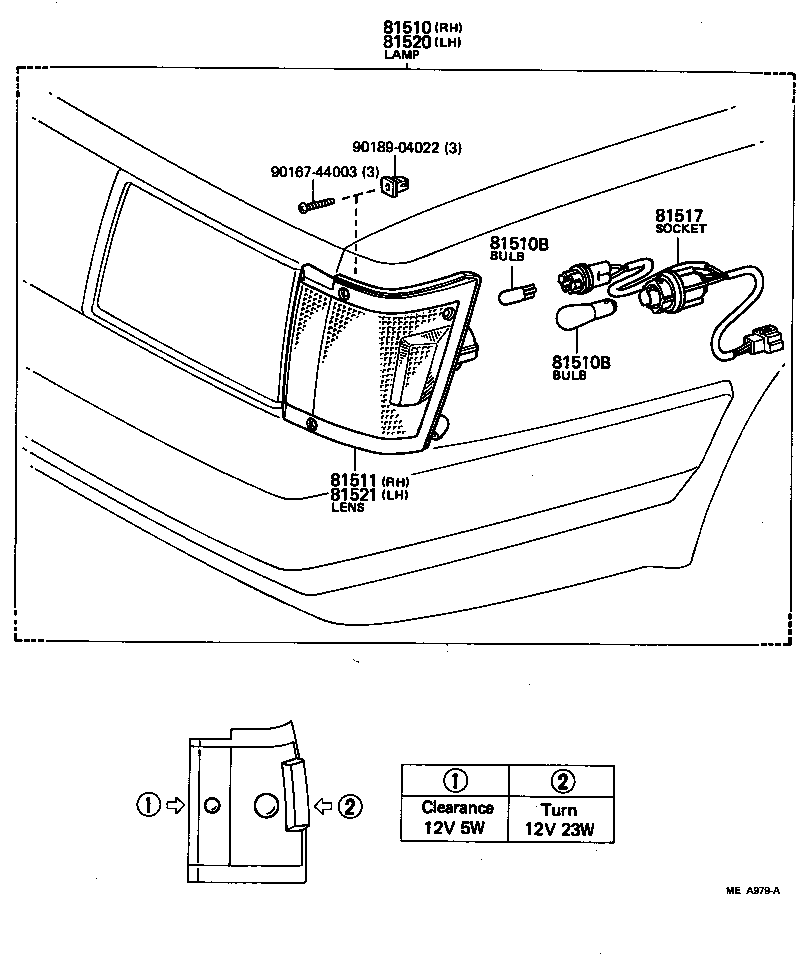

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81517 81520 81521 9016744003 9018904022
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19715

AA60,RA63,SA60,TA61,63..CP

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 2
99132-12050

AA60,CA67,KA67,RA63,SA60,TA6#..CP,V,WG

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 2
99132-12050

AA60,CA67,KA67,RA63,SA60,TA6#..CP,V,WG

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14300

AA60,RA63,SA60,TA61,63..CP

 1
81517 - SOCKET, FRONT TURN SIGNAL LAMP
81515-14300

AA6#,RA63,SA60,TA61,63..CP,WG

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19715

AA60,RA63,SA60,TA61,63..CP

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14300

AA60,RA63,SA60,TA61,63..CP

 1
Common parts
90167-44003
90189-04022
