ST215-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Aug 1998
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9808)ST215..4FC

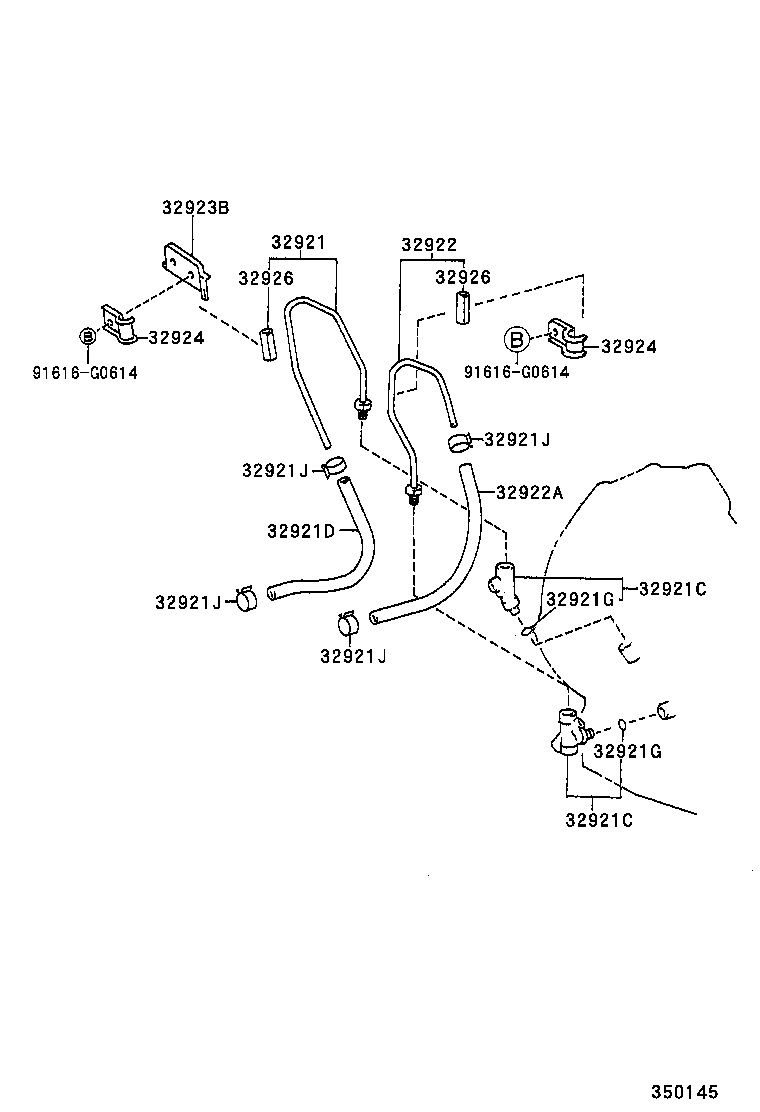

Click highlighted areas on diagram

A540H

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923B 32924 32924 32926 32926 91616G0614 91616G0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20420

ST215..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32060

ST215..4FC

ｱｳﾄﾚｯﾄ

 1
32918-32010

ST215..4FC

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32060

ST215..4FC

ｱｳﾄﾚｯﾄ

 1
32918-32010

ST215..4FC

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
32942-35011

ST215..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT212,CT210,211,216,ST215..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT212,CT210,211,216,ST215..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

AT210,211,ST215..4FC..(GT,SI)

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-20430

ST215..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17127

ST215..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-32060

ST215..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12071

ST215..4FC

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12071

ST215..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-20010

ST215..4FC

長さ=25,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-20010

ST215..4FC

長さ=25,内径=10

 2
Common parts
91616-G0614
