ST215-CEMMK (1998)

Toyota Carina Ff

Production Aug 1998 - Dec 2001
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )

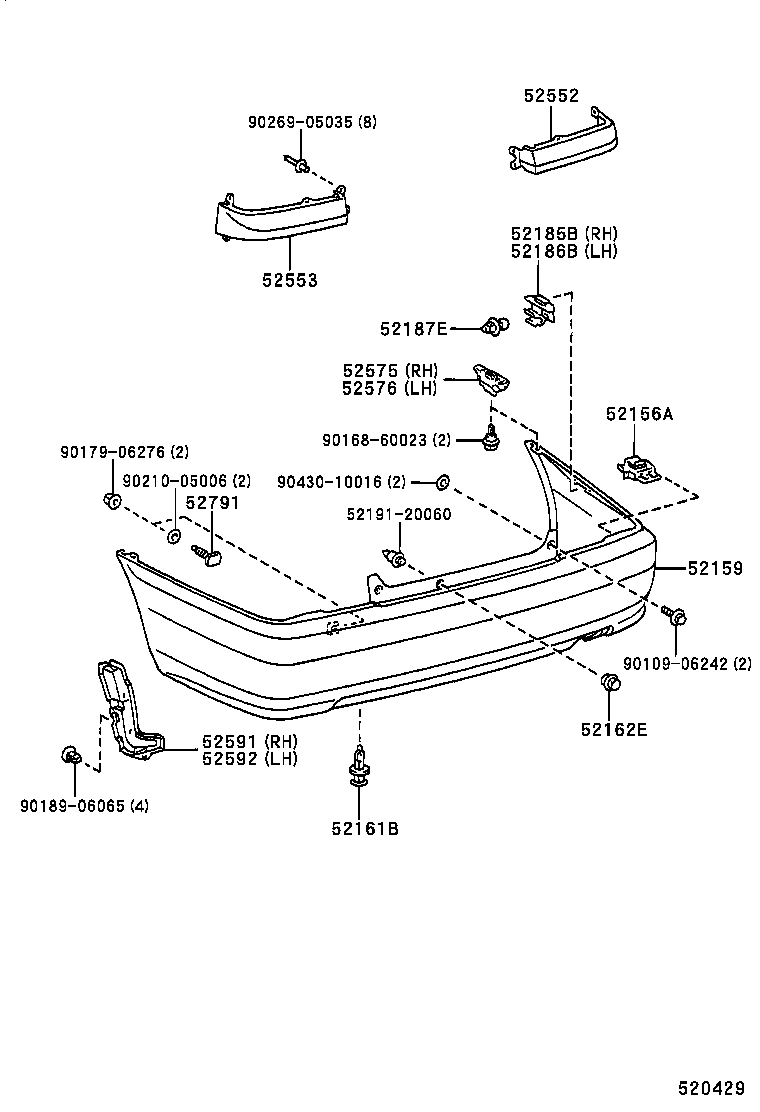

Click highlighted areas on diagram

diagram 52156A 52159 52161B 52162E 52185B 52186B 52187E 5219120060 52552 52553 52575 52576 52591 52592 52791 9010906242 9016860023 9017906276 9018906065 9021005006 9026905035 9043010016
Part # Description Qty Price
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-20220

AT21#,CT21#,ST215

 2
52159 - COVER, REAR BUMPER
52159-20830B0

AT21#,CT21#,ST215

BL.GRAY ME,199 ,6P7 ,925

 1
52159-20830E0

AT21#,CT21#,ST215

GRAYISH BROWN ME.,040

 1
52159-20880J0

AT211,212,CT21#,ST215

DK.BLUE M.M.,8L2

 1
52159-20880G0

AT211,212,CT21#,ST215

LT.GREEN ME.OP.,6P7

 1
52159-20830E1

AT21#,CT21#,ST215

DK. GRAY ME.,6P2 ,8L2

 1
52159-20880K0

AT211,212,CT21#,ST215

DK.PURPLE MC.,936

 1
52159-20880A0

AT211,212,CT21#,ST215

SUPER WHITE 2,040

 1
52159-20880D0

AT211,212,CT21#,ST215

RED MC.,3M8

 1
52159-20880B0

AT211,212,CT21#,ST215

SILVER ME.,1C0

 1
52159-20880A1

AT211,212,CT21#,ST215

WHITE PEARL CS.,064

 1
52161B - PIECE, REAR BUMPER
52161-16010

AT21#,CT21#,ST215

 4
52162E - PIECE, REAR BUMPER
52162-20050

AT21#,CT21#,ST215

 1
52162-20040

AT21#,CT21#,ST215

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-20180

AT21#,CT21#,ST215

 1
52185-20160

AT21#,CT21#,ST215

 2
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-20180

AT21#,CT21#,ST215

 1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070

AT21#,CT21#,ST215

 2
52552 - FILLER, REAR BUMPER, RH
52552-20050

AT21#,CT21#,ST215

 1
52552-20090

AT21#,CT21#,ST215

 1
52553 - FILLER, REAR BUMPER, LH
52553-20050

AT21#,CT21#,ST215

 1
52553-20090

AT21#,CT21#,ST215

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20030

AT21#,CT21#,ST215

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20030

AT21#,CT21#,ST215

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-20040

AT21#,CT21#,ST215

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-20020

AT21#,CT21#,ST215

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-33010

AT21#,CT21#,ST215

 2
52791-12010

AT21#,CT21#,ST215

 2
Common parts
52191-20060
90109-06242
90168-60023
90179-06276
90189-06065
90210-05006
90269-05035
90430-10016
