ST215-CEMMK (1998)
Toyota Carina Ff
(9808- )ST215..5F
S55F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

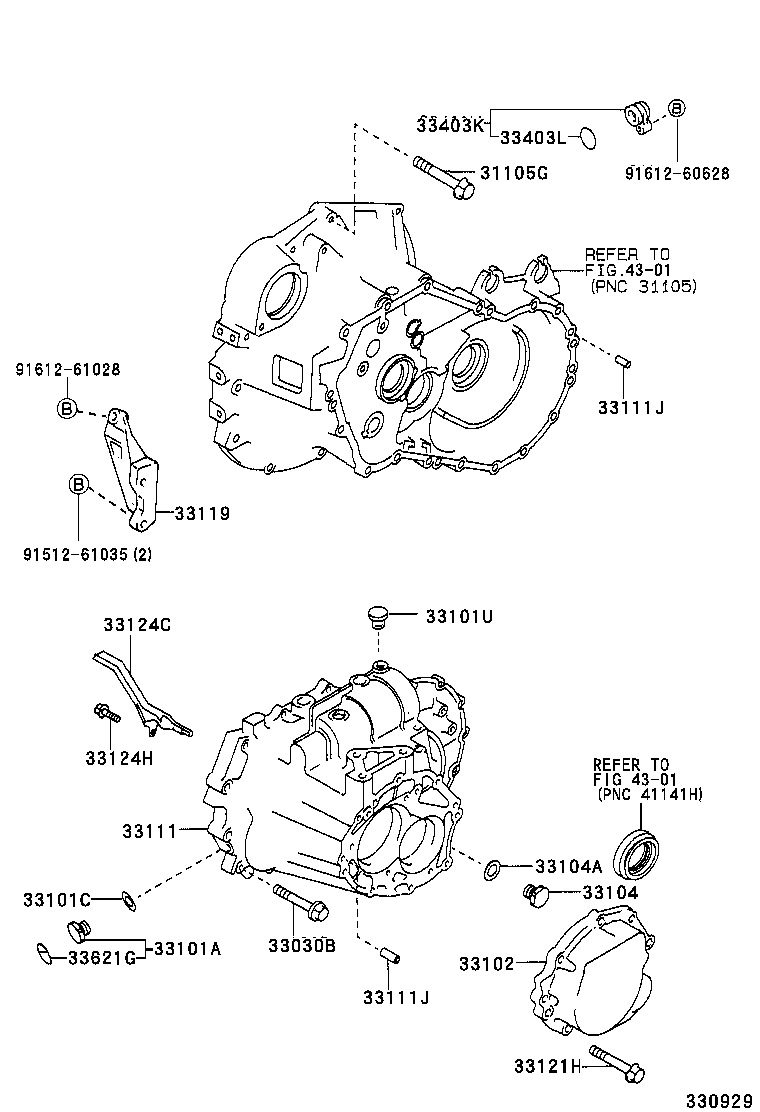

| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91651-41022 |
CT215,ST215..5F *10−1.25PX22−22 |
1 | ||
| 90105-10077 |
AT21#,CT210,211,215,ST215..MTM *10−1.25PX43−26 |
1 | ||
| 90105-08040 |
CT210,211,215,ST215..5F *8−1.25PX18−15 |
1 | ||
| 91651-41022 |
ST215..5F *10−1.25PX22−22 |
1 | ||
| 91651-61025 |
ST215..5F *10−1.25PX25−25 |
1 | ||
| 90119-12168 |
CT210,211,215,ST215..5F *12−1.25PX55−30 |
3 | ||
| 90105-08040 |
ST215..5F *8−1.25PX18−15 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08042 |
CT210,211,ST215..5F..TI *8−1.25PX45−27.5 |
17 | ||
| 90105-08126 |
CT215,ST215..5F *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18054 |
ST215..5F |
1 | ||
| 90341-18033 |
CT215,ST215..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03148 |
CT215,ST215..5F |
1 | ||
| 90930-03133 |
ST215..5F..TI;AT21#,CT210,211..5F |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12041 |
CT215,ST215..5F |
1 | ||
| 33102-33020 |
CT210,211,ST215..5F..TI |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AT21#,CT210,211,215,ST215..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-12170 |
CT215,ST215..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CT210,211,ST215..5F..TI 長さ=23,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
CT210,211,ST215..5F..TI 長さ=23,外径=8 |
6 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-20090 |
ST215..5F |
1 | ||
| 33119-32020 |
ST215..5F |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
CT215,ST215..5F |
10 | ||
| 90105-08273 |
CT210,211,ST215..5F..TI |
8 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-33010 |
CT210,211,ST215..5F..TI |
1 | ||
| 33124-12030 |
CT215,ST215..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
CT215,ST215..5F |
1 | ||
| 91651-60618 |
CT210,211,ST215..5F..TI |
1 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-20230 |
CT210,211,ST215..5F..TI |
1 | ||
| 33403-20240 |
CT215,ST215..5F |
1 | ||
| 33403L - RING, O | ||||
| 96711-24018 |
CT210,211,ST215..5F..TI |
1 | ||
| 33621G - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-21010 |
ST215..5F |
1 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91612-60628 | ||||
| 91612-61028 | ||||
| Linked diagrams | ||||
| 4301 | ||||
