ST195-CEPMK (1992)
Toyota Carina Ff
ILLUST NO. 2 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-20110 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-20080 |
CT19#,ST19# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33080 |
CT19#,ST19# |
1 | ||

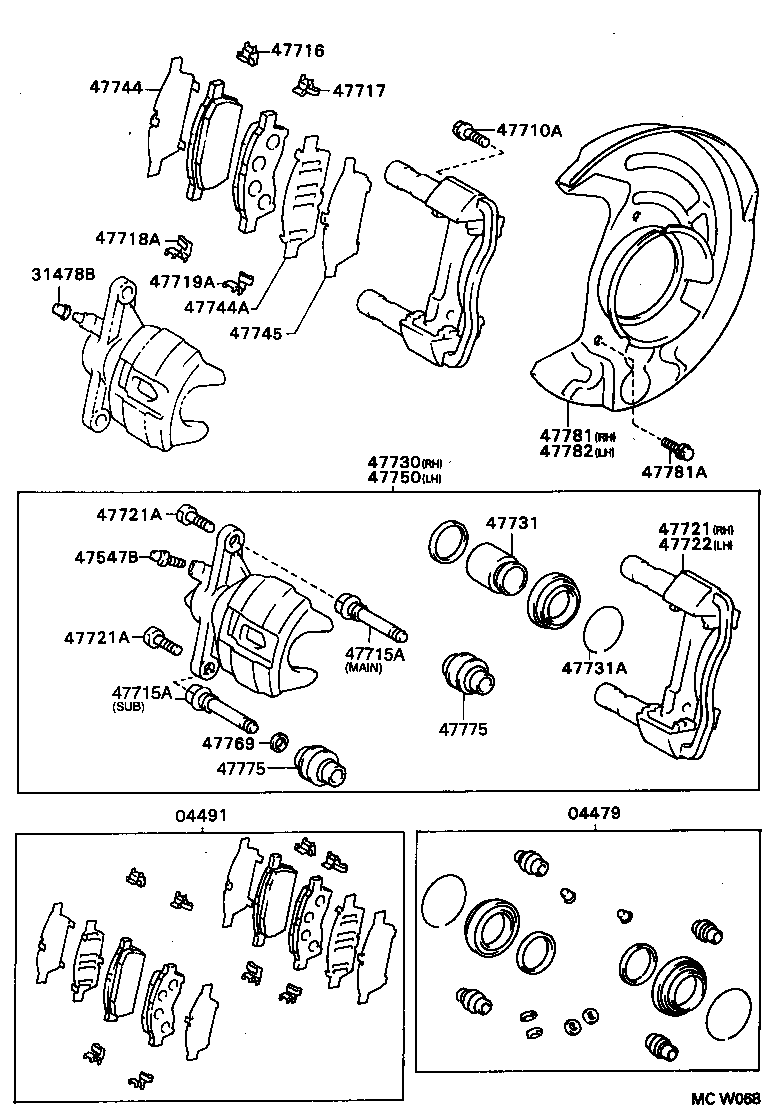

ILLUST NO. 1 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20170 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20880 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT19#,CT19#,ST19# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AT19#,CT19#,ST19# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
AT19#,CT19#,ST19# *12−1.25PX25.8−19.5 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50030 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI MAIN PIN SIDE |
2 | ||
| 47715-50010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
4 | ||
| 47715-50010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI SUB PIN SIDE |
2 | ||
| 47715-50010 |
AT19#,CT19#,ST195 SUB PIN SIDE |
2 | ||
| 47715-50030 |
AT19#,CT19#,ST195 MAIN PIN SIDE |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50030 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI MAIN PIN SIDE |
2 | ||
| 47715-50010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
4 | ||
| 47715-50010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI SUB PIN SIDE |
2 | ||
| 47715-50010 |
AT19#,CT19#,ST195 SUB PIN SIDE |
2 | ||
| 47715-50030 |
AT19#,CT19#,ST195 MAIN PIN SIDE |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33020 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-33010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47717-33010 |
AT19#,CT19#,ST195 |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-33020 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47717-33020 |
AT19#,CT19#,ST195 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20370 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-20080 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20480 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20190 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-66001 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20120 |
CT19#,ST19# |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47744-33010 |
CT19#,ST19# |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-33010 |
CT19#,ST19# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20480 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-20080 |
CT19#,ST195;AT19#..SEEXT,SL,SX,SXI |
4 | ||
| 47775-20080 |
CT19#,ST195 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-20080 |
CT19#,ST195;AT19#..SEEXT,SL,SX,SXI |
4 | ||
| 47775-20080 |
CT19#,ST195 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20280 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06134 |
AT19#,CT19#,ST19# |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20280 |
CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI |
1 | ||
