ST195-CEPMK (1992)
Toyota Carina Ff
Production
Aug 1992
-
Aug 1996
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

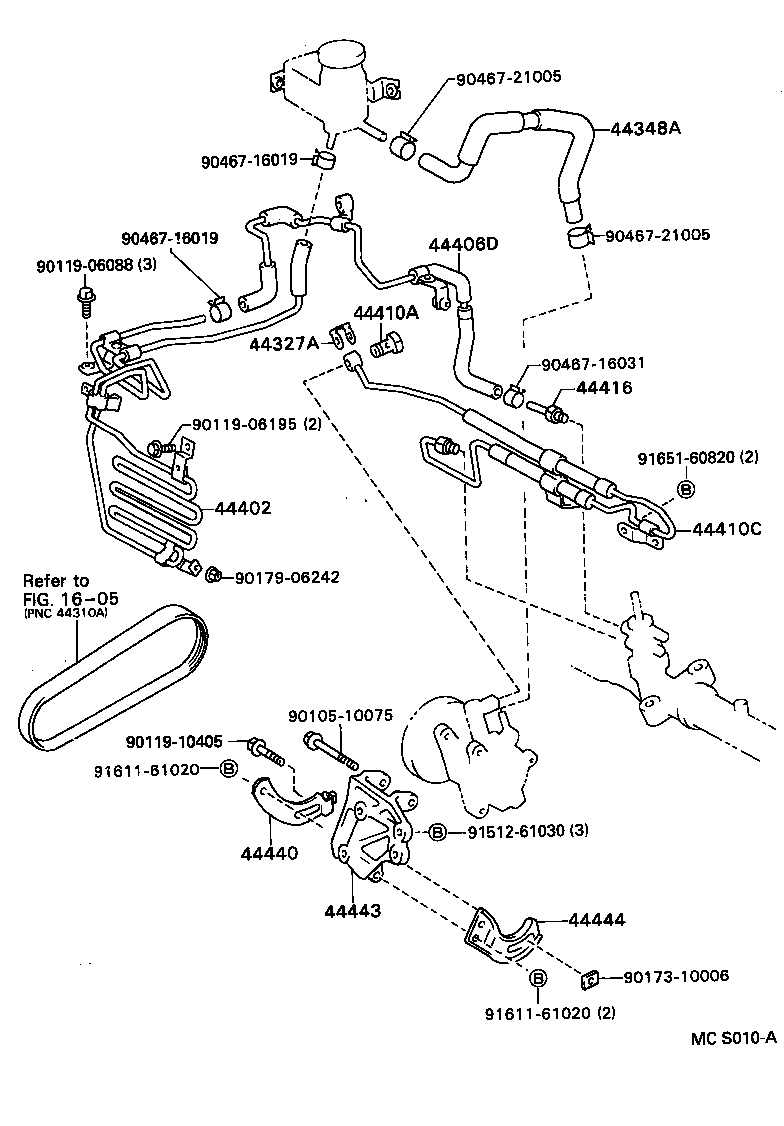

(9208-9305)ST195
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT19#,CT19#,ST19# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20280 |
ST19# |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-20410 |
ST195 |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-20490 |
ST195 |
1 | ||
| 44406-20560 |
ST195 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT19#,CT19#,ST19# |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-2B181 |
ST195 |
1 | ||
| 44410-2B140 |
ST195 |
1 | ||
| 44410-20730 |
ST195 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
AT19#,CT19#,ST19# |
1 | ||
| 44440 - BRACKET ASSY, PUMP | ||||
| 44440-20040 |
ST195 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
ST195 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
ST195 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06088 | ||||
| 90119-06195 | ||||
| 90119-10405 | ||||
| 90173-10006 | ||||
| 90179-06242 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91512-61030 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||

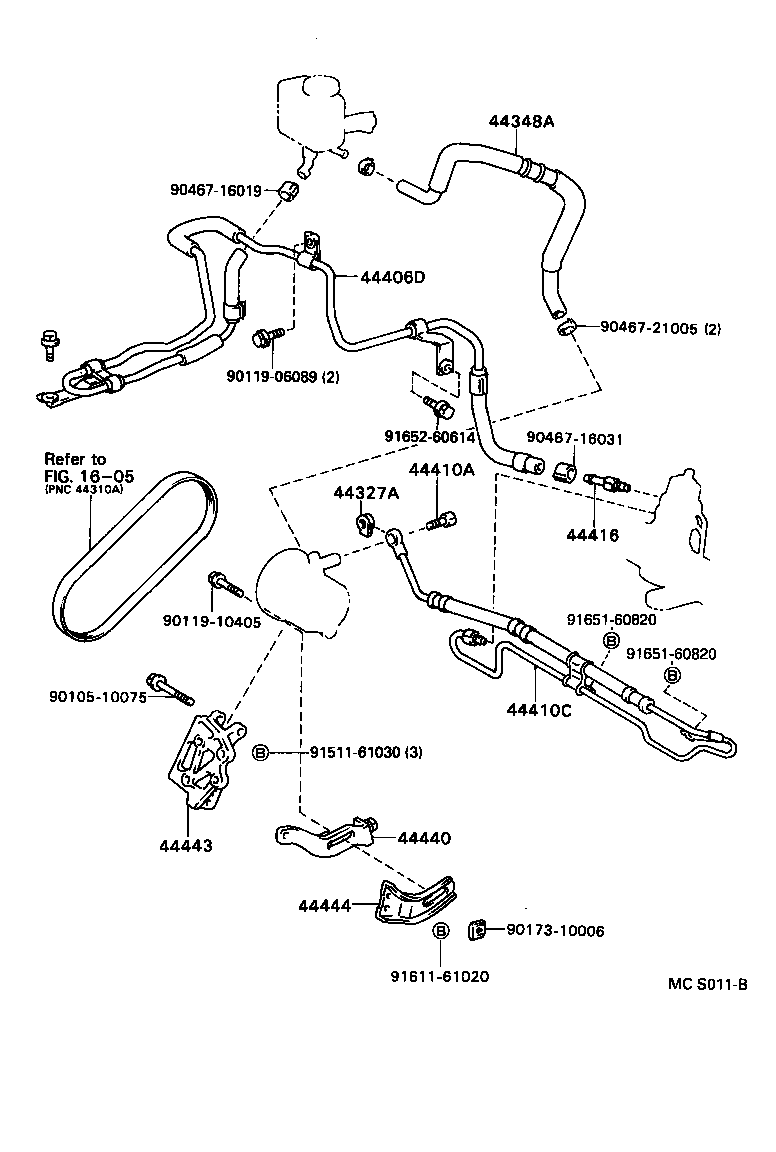

(9305- )ST195
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT19#,CT19#,ST19# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20280 |
ST19# |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-20490 |
ST195 |
1 | ||
| 44406-20560 |
ST195 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT19#,CT19#,ST19# |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-2B181 |
ST195 |
1 | ||
| 44410-2B140 |
ST195 |
1 | ||
| 44410-20730 |
ST195 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
AT19#,CT19#,ST19# |
1 | ||
| 44440 - BRACKET ASSY, PUMP | ||||
| 44440-20040 |
ST195 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
ST195 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
ST195 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06089 | ||||
| 90119-10405 | ||||
| 90173-10006 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 91652-60614 | ||||
| Linked diagrams | ||||
| 1605 | ||||
