ST195-CEPEK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

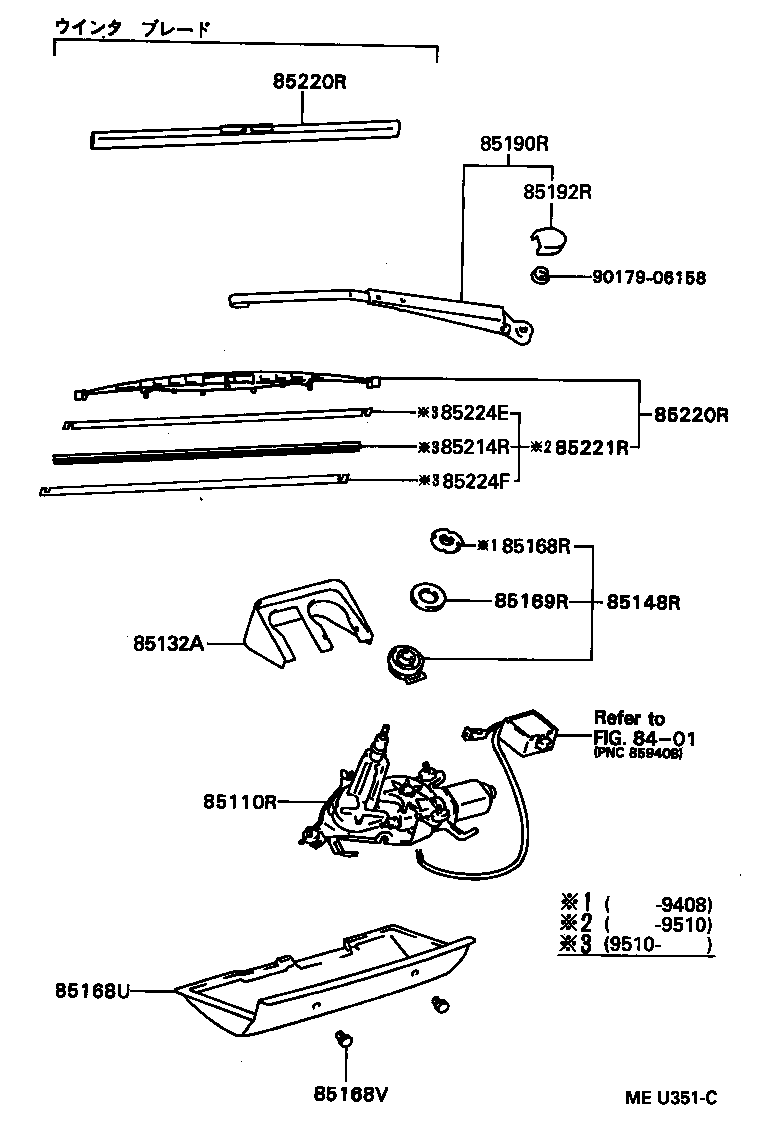

Click highlighted areas on diagram

diagram 8401 85110R 85132A 85148R 85168R 85168U 85168V 85169R 85190R 85192R 85214R 85220R 85220R 85221R 85224E 85224F 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-20710

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85132A - COVER, REAR WIPER SHAFT
85132-20700E1

AT190,191,CT19#,ST195..SE,SXI

ANTELOPE,TRIM4#

 1
85132-20700E0

CT19#,ST19#..SE

DK. ROSE,TRIM4#

 1
85132-20700B1

AT190..M;AT191,CT19#,ST19#..SE,SXI

SHADOW GRAY,TRIM1#

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85148-12020

CT19#,ST19#..SE

 1
85133-12770

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90179-22013

CT19#,ST19#..SE

 1
85168U - COVER, REAR WIPER
85131-20700

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85168V - CLIP, WIPER LINK COVER
90467-07117

AT190..M;AT191,CT19#,ST19#..SE,SXI

 2
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85190R - ARM ASSY, REAR WIPER
85241-20040

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85192R - COVER, REAR WIPER ARM
85192-13060

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85214R - RUBBER, REAR WIPER
85214-20340

AT190,191,CT19#,ST195..SE,SXI

 1
85220R - BLADE ASSY, REAR WIPER
85242-20010

AT19#,CT19#,ST195..SE,SL,SX,SXI

 1
85242-20010

AT190,CT19#,ST19#..SE,SL,SXI

 1
85291-60060

AT190..M;AT191,CT19#,ST19#..SE,SXI

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85220R - BLADE ASSY, REAR WIPER
85242-20010

AT19#,CT19#,ST195..SE,SL,SX,SXI

 1
85242-20010

AT190,CT19#,ST19#..SE,SL,SXI

 1
85291-60060

AT190..M;AT191,CT19#,ST19#..SE,SXI

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85221R - BLADE, REAR WIPER
85243-20010

AT190..M;AT191,CT19#,ST19#..SE,SXI

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-50040

AT190,191,CT19#,ST195..SE,SXI

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-50030

AT190,191,CT19#,ST195..SE,SXI

 1
Common parts
90179-06158
Linked diagrams
8401
