ST195-CEMNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9307- )AT19#,ST19#

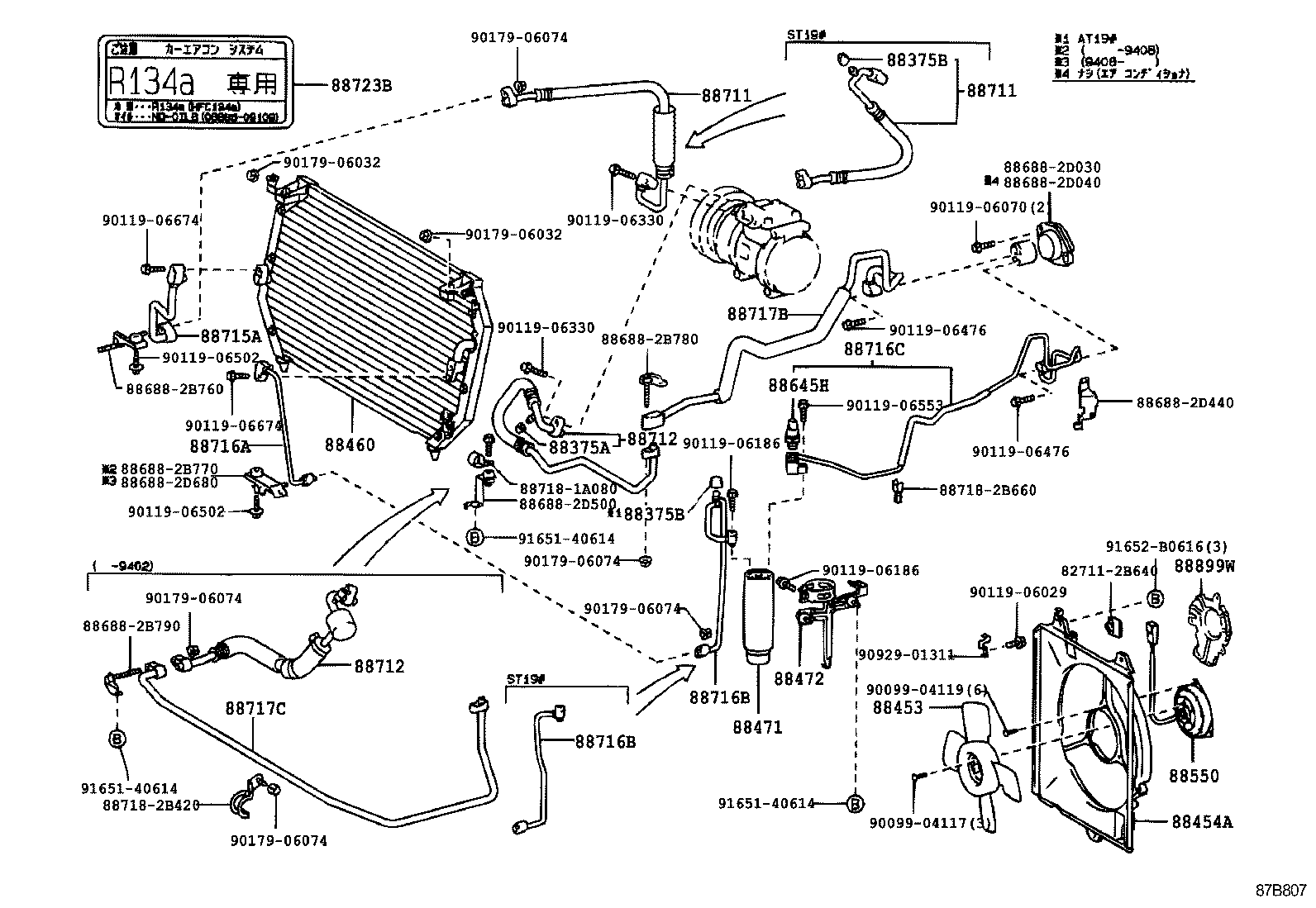

Click highlighted areas on diagram

MAKER OPTION

diagram 827112B640 88375A 88375B 88375B 88453 88454A 88460 88471 88472 88550 88645H 886882B760 886882B770 886882B780 886882B790 886882D030 886882D040 886882D440 886882D500 886882D680 88711 88711 88712 88712 88715A 88716A 88716B 88716B 88716C 88717B 88717C 887181A080 887182B420 887182B660 88723B 88899W 9009904117 9009904119 9011906029 9011906070 9011906186 9011906186 9011906330 9011906330 9011906476 9011906476 9011906502 9011906502 9011906553 9011906674 9011906674 9017906032 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9092901311 9165140614 9165140614 9165140614 91652B0616
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT19#,ST19#..SG,SGI,SX

 1
88375-30290

AT19#,CT19#,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

CT190..MTM;AT19#,ST19#

 1
88454A - SHROUD, FAN
88454-20020

AT19#,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20390

AT19#,ST195..SG,SGI

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88460-20370

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88460-20390

AT192,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT19#,CT19#,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-46030

AT19#,ST195

 1
88550-12130

AT19#,ST19#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT19#,CT19#,ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST19#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B220

ST19#

 1
88712-2B220

ST195..SG

 1
88712-2B790

ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B220

ST19#

 1
88712-2B220

ST195..SG

 1
88712-2B790

ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT19#,CT19#,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT19#,CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D220

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88710-20370

AT19#,ST195..SG,SGI

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88710-20370

AT19#,ST19#

 1
88710-20370

ST195;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(*66)

 1
88710-20370

ST195..SG

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B450

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88717-2B160

AT19#,ST19#

 1
88717-2B160

ST195;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(*66)

 1
88717-2B160

ST195..SG

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B160

AT19#,ST195..SG,SGI

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B221

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88717-2B220

AT192,ST19#..SG,SX

 1
88717-2B220

AT19#,ST195..SG,SGI

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B220

AT19#,ST19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

AT19#,CT19#,ST19#

 1
88899W - SUPPORT SUB-ASSY, B
88899-20270

AT19#,ST19#

 1
Common parts
82711-2B640
88688-2B760
88688-2B770
88688-2B780
88688-2B790
88688-2D030
88688-2D040
88688-2D440
88688-2D500
88688-2D680
88718-1A080
88718-2B420
88718-2B660
90099-04117
90099-04119
90119-06029
90119-06070
90119-06186
90119-06330
90119-06476
90119-06502
90119-06553
90119-06674
90179-06032
90179-06074
90929-01311
91651-40614
91652-B0616

(9208- )AT19#,ST19#

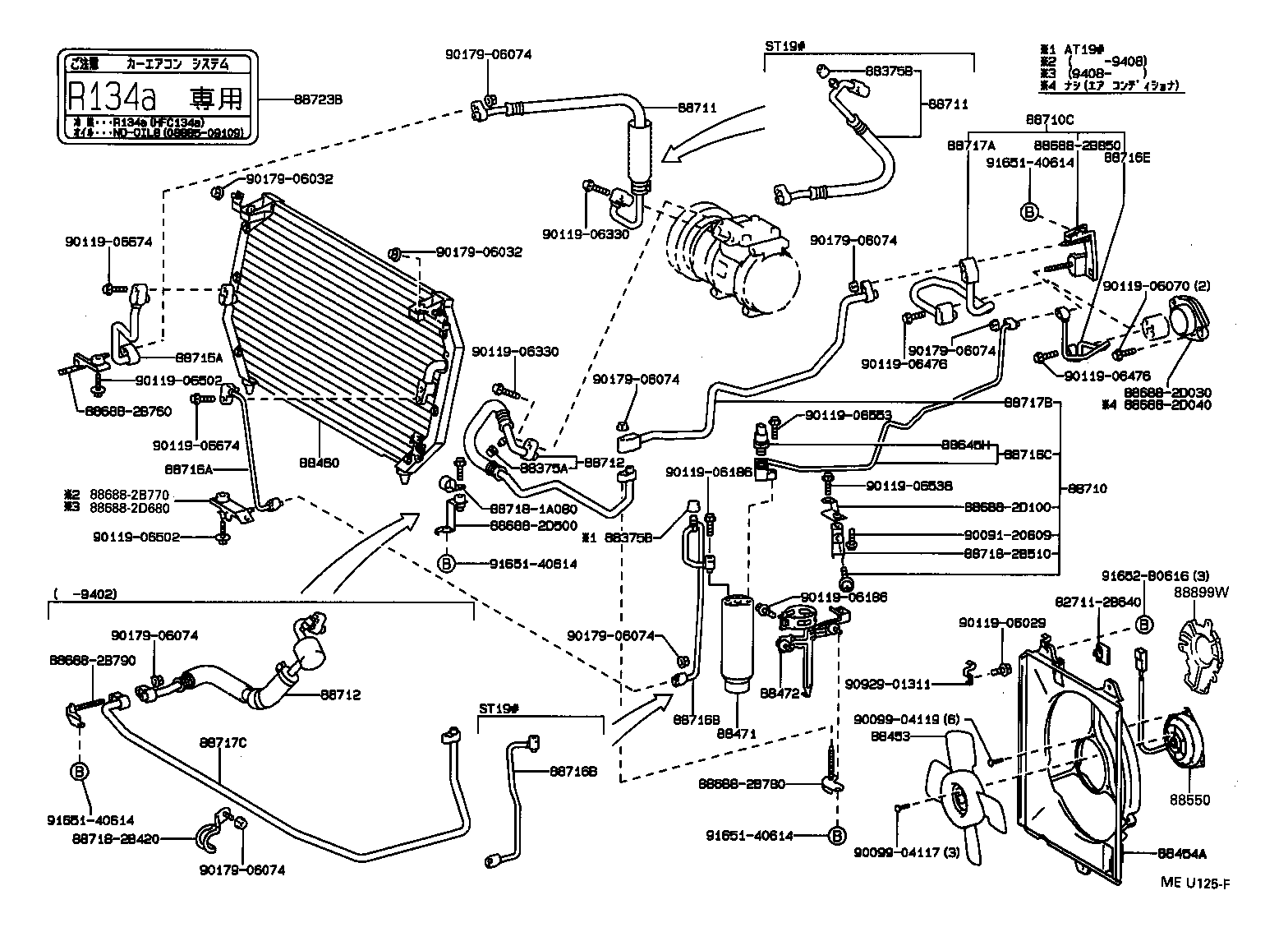

Click highlighted areas on diagram

MAKER OPTION,ｱﾘ(ABS)

diagram 827112B640 88375A 88375B 88375B 88453 88454A 88460 88471 88472 88550 88645H 886882B760 886882B770 886882B780 886882B790 886882B850 886882D030 886882D040 886882D100 886882D500 886882D680 88710 88710C 88711 88711 88712 88712 88715A 88716A 88716B 88716B 88716C 88716E 88717A 88717B 88717C 887181A080 887182B420 887182B510 88723B 88899W 9009120609 9009904117 9009904119 9011906029 9011906070 9011906186 9011906186 9011906330 9011906330 9011906476 9011906476 9011906502 9011906502 9011906538 9011906553 9011906674 9011906674 9017906032 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9017906074 9017906074 9092901311 9165140614 9165140614 9165140614 9165140614 91652B0616
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT19#,ST19#..SG,SGI,SX

 1
88375-30290

AT19#,CT19#,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

CT190..MTM;AT19#,ST19#

 1
88454A - SHROUD, FAN
88454-20020

AT19#,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20390

AT19#,ST195..SG,SGI

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88460-20370

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88460-20390

AT192,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT19#,CT19#,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20140

CT19#,ST19#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-46030

AT19#,ST195

 1
88550-12130

AT19#,ST19#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT19#,CT19#,ST19#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20230

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-20250

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST19#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B220

ST19#

 1
88712-2B220

ST195..SG

 1
88712-2B790

ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B220

ST19#

 1
88712-2B220

ST195..SG

 1
88712-2B790

ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT19#,CT19#,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT19#,CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D220

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88710-20370

AT19#,ST195..SG,SGI

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88710-20370

AT19#,ST19#

 1
88710-20370

ST195;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(*66)

 1
88710-20370

ST195..SG

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

AT19#,CT19#,ST19#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230

AT19#,ST19#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B450

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88717-2B160

AT19#,ST19#

 1
88717-2B160

ST195;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(*66)

 1
88717-2B160

ST195..SG

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B160

AT19#,ST195..SG,SGI

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B221

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88717-2B220

AT192,ST19#..SG,SX

 1
88717-2B220

AT19#,ST195..SG,SGI

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B220

AT19#,ST19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

AT19#,CT19#,ST19#

 1
88899W - SUPPORT SUB-ASSY, B
88899-20270

AT19#,ST19#

 1
Common parts
82711-2B640
88688-2B760
88688-2B770
88688-2B780
88688-2B790
88688-2B850
88688-2D030
88688-2D040
88688-2D100
88688-2D500
88688-2D680
88718-1A080
88718-2B420
88718-2B510
90091-20609
90099-04117
90099-04119
90119-06029
90119-06070
90119-06186
90119-06330
90119-06476
90119-06502
90119-06538
90119-06553
90119-06674
90179-06032
90179-06074
90929-01311
91651-40614
91652-B0616

(9208- )AT19#,ST19#

Click highlighted areas on diagram

DEALER OPTION

diagram 827112B640 88375A 88375B 88453 88454A 88460 88471 88472 88479 88550 88645H 886882B780 886882B850 886882D030 886882D050 886882D060 886882D130 886882D170 886882D220 88710 88711 88711 88712 88715A 88716A 88716B 88716C 88716E 88717A 88717C 887181A540 887182B290 887182B500 88723B 9009120607 9009120609 9009904117 9009904119 9011906029 9011906070 9011906186 9011906336 9011906336 9011906336 9011906553 9011906730 9011906730 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9165140614 9165160630 9165160630 9165160630 9165160630 9331554008 9338516025
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT19#,ST19#..SG,SGI,SX

 1
88375-30290

AT19#,CT19#,ST19#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AT19#,CT19#,ST19#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

CT190..MTM;AT19#,ST19#

 1
88454A - SHROUD, FAN
88454-20020

AT19#,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20390

AT19#,ST195..SG,SGI

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88460-20370

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88460-20390

AT192,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT19#,CT19#,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20140

CT19#,ST19#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

AT192,CT19#,ST19#..SG,SX

250G

 3
90986-02007

AT19#,CT19#,ST19#..SG,SGI,SX

250G

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-46030

AT19#,ST195

 1
88550-12130

AT19#,ST19#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT19#,CT19#,ST19#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20230

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST19#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST19#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B220

ST19#

 1
88712-2B220

ST195..SG

 1
88712-2B790

ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT19#,CT19#,ST19#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT19#,CT19#,ST19#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150

CT19#,ST195..SG

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716-2D151

CT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88716-2D150

CT19#,ST19#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D220

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88710-20370

AT19#,ST195..SG,SGI

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88710-20370

AT19#,ST19#

 1
88710-20370

ST195;AT19#..SEEXT,SL,SX,SXI

ｱﾘ(*66)

 1
88710-20370

ST195..SG

ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

AT19#,CT19#,ST19#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230

AT19#,ST19#

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B221

AT19#,ST19#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88717-2B220

AT192,ST19#..SG,SX

 1
88717-2B220

AT19#,ST195..SG,SGI

ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88717-2B220

AT19#,ST19#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

AT19#,CT19#,ST19#

 1
Common parts
82711-2B640
88688-2B780
88688-2B850
88688-2D030
88688-2D050
88688-2D060
88688-2D130
88688-2D170
88688-2D220
88718-1A540
88718-2B290
88718-2B500
90091-20607
90091-20609
90099-04117
90099-04119
90119-06029
90119-06070
90119-06186
90119-06336
90119-06553
90119-06730
90179-06032
91651-40614
91651-60630
93315-54008
93385-16025

(9208- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
