Toyota Carina ff ST195 FRONT TURN SIGNAL LAMP

Manufacturers Home
Toyota
JP
CARINA FF
ST195-CEMNK (1992)
8103 - FRONT TURN SIGNAL LAMP

ST195-CEMNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9208- )

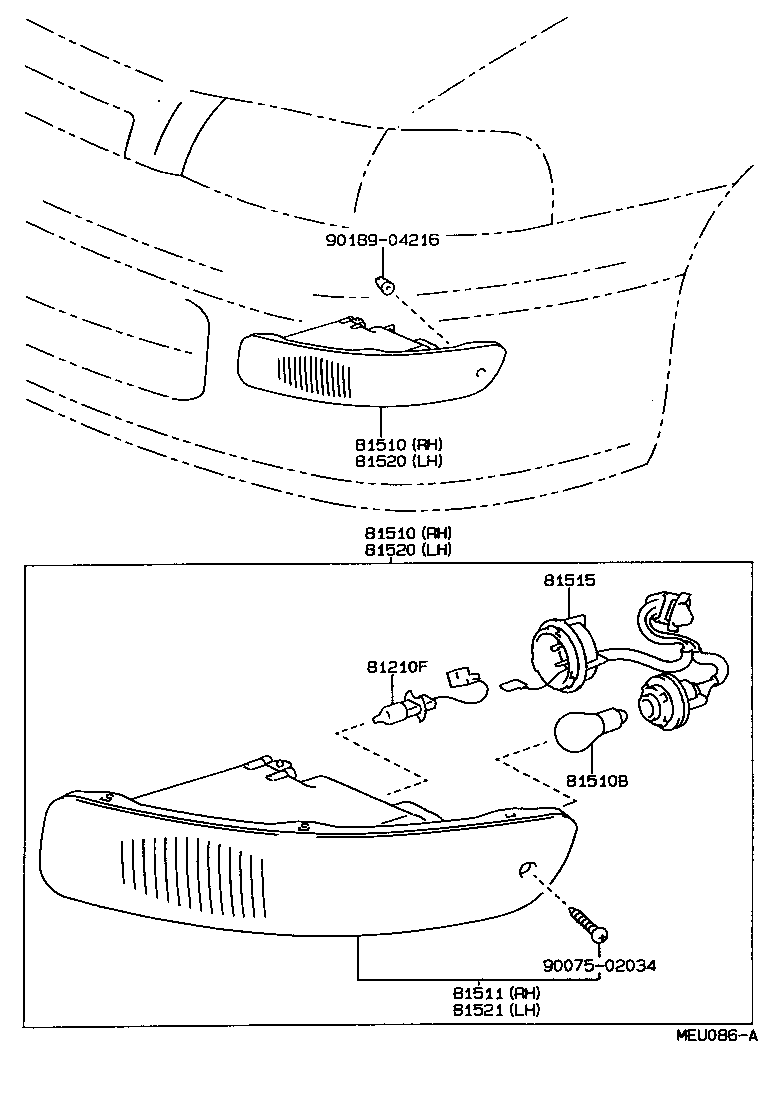

Click highlighted areas on diagram

ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)

Part #	Description	Period	Qty
81210F - BULB, FOG LAMP
90981-13018	ST195;CT190..SE;AT19#,CT195,ST190..SE,SEEXT,SG,SGI,SL,SXI 12V 55W,ﾊﾛｹﾞﾝ	08/1993 - 08/1994	2
90981-13018	AT19#,CT19#,ST195 12V 55W,ﾊﾛｹﾞﾝ	08/1994 - 03/1995	2
90981-13018	AT19#,CT19#,ST19# 12V 55W,ﾊﾛｹﾞﾝ	12/1992 - 08/1993	2
90981-13071	AT19#,CT19#,ST195 12V 55W,ﾊﾛｹﾞﾝ	03/1995 - 08/1996	2
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81510-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81510-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT19#,CT19#,ST19# 12V 21W	08/1992 - 08/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81511-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81211-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81211-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81215-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	2
81515-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	2
81515-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	2
81215-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81220-20310	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81520-20680	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81220-20310	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81520-20680	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81220-20310	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81520-20680	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81220-20310	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81520-20680	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81221-20310	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81221-20310	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81521-20680	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81521-20680	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
Common parts
90075-02034
90189-04216

(9208- )

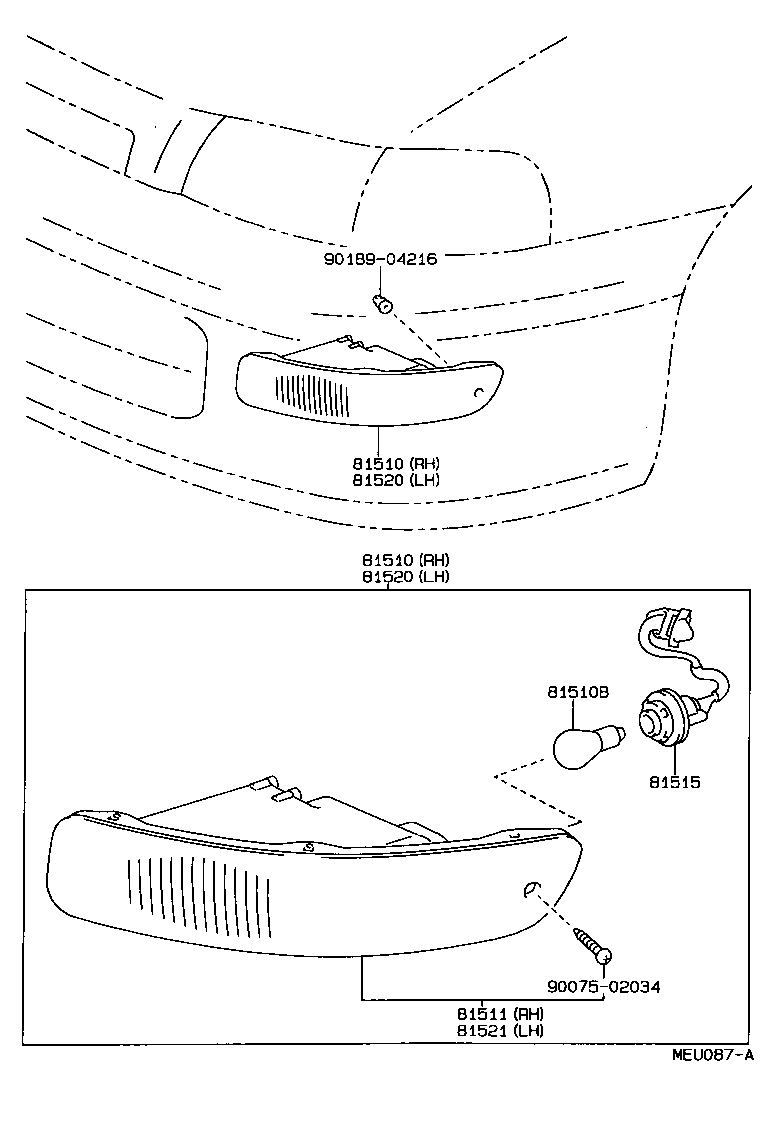

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81510-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81510-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81210-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT19#,CT19#,ST19# 12V 21W	08/1992 - 08/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81511-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81211-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81211-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81215-20320	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	2
81515-20690	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	2
81515-20690	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	2
81215-20320	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81220-20310	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81520-20680	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81220-20310	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81520-20680	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81220-20310	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81520-20680	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81220-20310	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81520-20680	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81221-20310	AT19#,CT19#,ST19#..SG,SGI,SX ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	12/1992 - 08/1994	1
81221-20310	AT19#,CT19#,ST195..SG,SGI ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/1994 - 08/1996	1
81521-20680	AT19#,CT19#,ST195..SG,SGI	08/1994 - 08/1996	1
81521-20680	AT19#,CT19#,ST19#..SG,SGI,SX	08/1992 - 08/1994	1
Common parts
90075-02034
90189-04216
