ST195-CEMNK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )ST19#

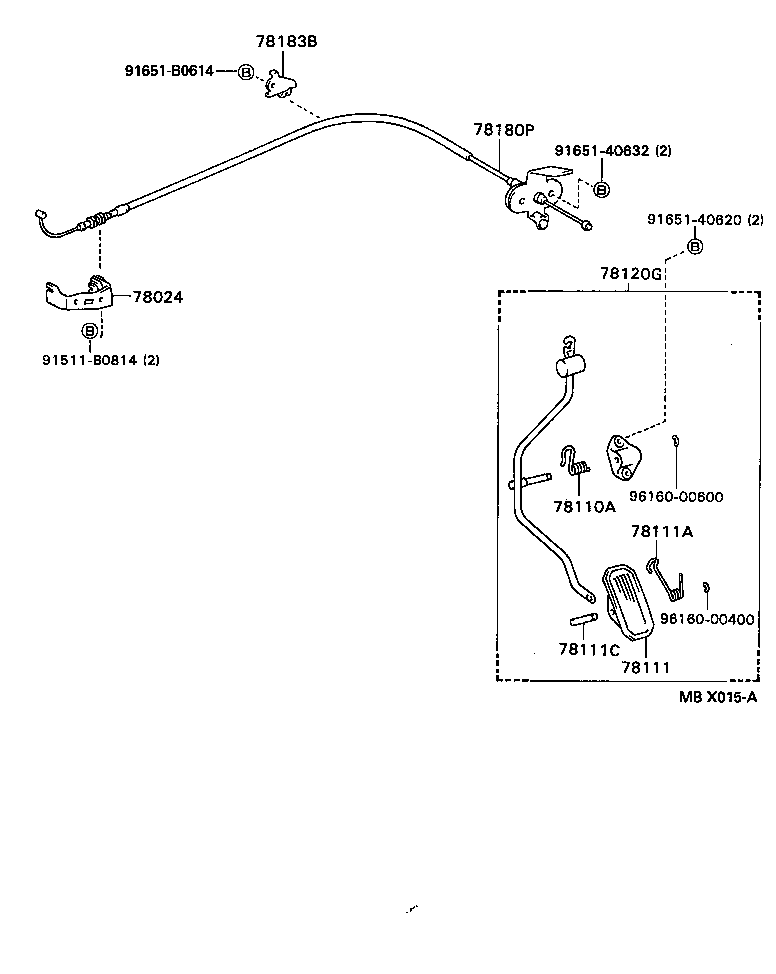

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 91511B0814 9165140620 9165140632 91651B0614 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20140

ST19#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

AT190,191,CT19#,ST19#..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-32010

CT190..ATM;AT19#,ST19#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT19#,CT19#,ST19#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT19#,CT19#,ST19#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20550

AT190,191,ST19#..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B881

ST19#

 1
78180-2B880

ST19#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

AT19#,CT19#,ST19#

 1
Common parts
91511-B0814
91651-40620
91651-40632
91651-B0614
96160-00400
96160-00600
