ST195-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

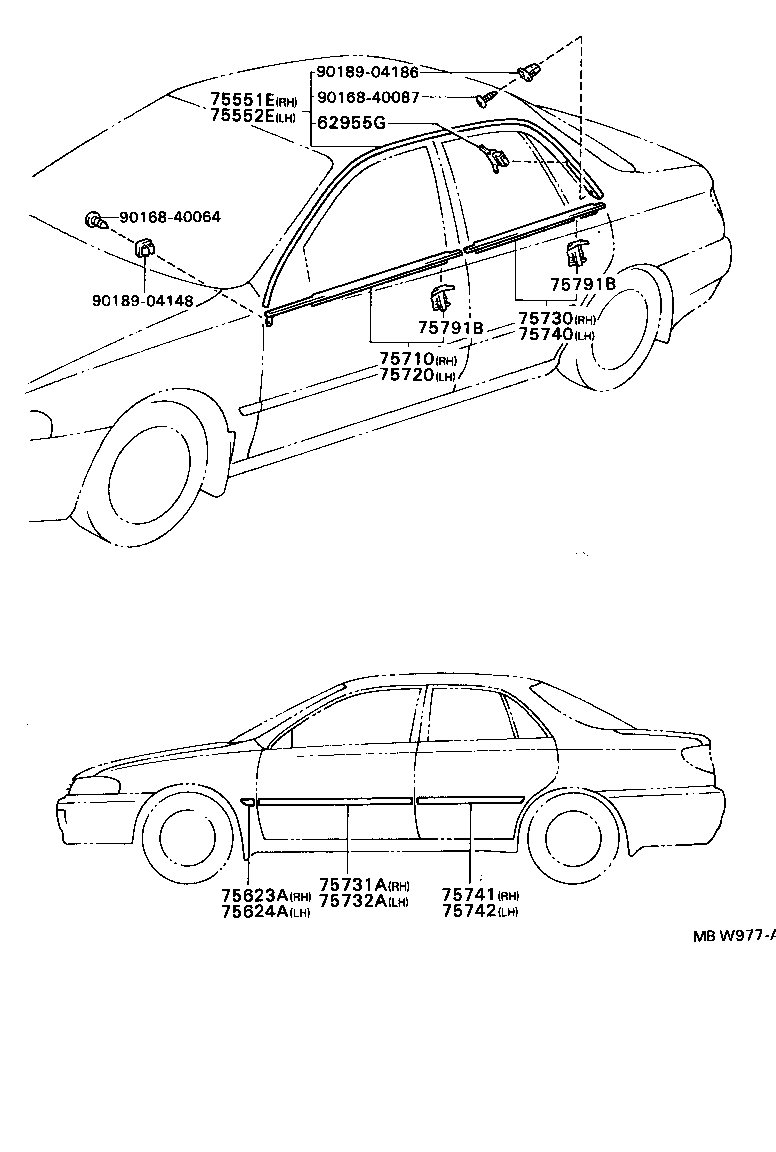

Click highlighted areas on diagram

diagram 62955G 75551E 75552E 75623A 75624A 75710 75720 75730 75731A 75732A 75740 75741 75742 75791B 75791B 9016840064 9016840087 9018904148 9018904186
Part # Description Qty Price
62955G - RETAINER, QUARTER VENT LOUVER
62955-20140

AT19#,CT19#,ST19#

 6
62955-20140

AT19#,CT19#,ST19#

 4
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-20110

AT19#,CT19#,ST19#

 1
75505-20170

AT19#,CT19#,ST19#

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-20110

AT19#,CT19#,ST19#

 1
75506-20170

AT19#,CT19#,ST19#

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20390B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

BLUEISH GRAY ME,040 ,574

 1
75623-20391B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

GRAY,040 ,574

 1
75623-20380

AT19#,CT19#,ST19#

ﾌﾞﾗｯｸ

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20390B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

BLUEISH GRAY ME,040 ,574

 1
75624-20380

AT19#,CT19#,ST19#

ﾌﾞﾗｯｸ

 1
75624-20391B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

GRAY,040 ,574

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-20390

AT19#,CT19#,ST19#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-20390

AT19#,CT19#,ST19#

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-20210

AT19#,CT19#,ST19#

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20610B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

BLUEISH GRAY ME,040 ,574

 1
75731-20611B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

GRAY,040 ,574

 1
75731-20600

AT19#,CT19#,ST19#

ﾌﾞﾗｯｸ

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20610B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

BLUEISH GRAY ME,040 ,574

 1
75732-20600

AT19#,CT19#,ST19#

ﾌﾞﾗｯｸ

 1
75732-20611B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

GRAY,040 ,574

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-20280

AT19#,CT19#,ST19#

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20650

AT19#,CT19#,ST19#

ﾌﾞﾗｯｸ

 1
75741-20660B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

BLUEISH GRAY ME,040 ,574

 1
75741-20661B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

GRAY,040 ,574

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20640B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

BLUEISH GRAY ME,040 ,574

 1
75742-20630

AT19#,CT19#,ST19#

ﾌﾞﾗｯｸ

 1
75742-20641B0

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

GRAY,040 ,574

 1
75791B - CLIP, BELT MOULDING SIDE
75791-20090

AT19#,CT19#,ST19#

 22
75791B - CLIP, BELT MOULDING SIDE
75791-20090

AT19#,CT19#,ST19#

 22
Common parts
90168-40064
90168-40087
90189-04148
90189-04186
