ST195-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

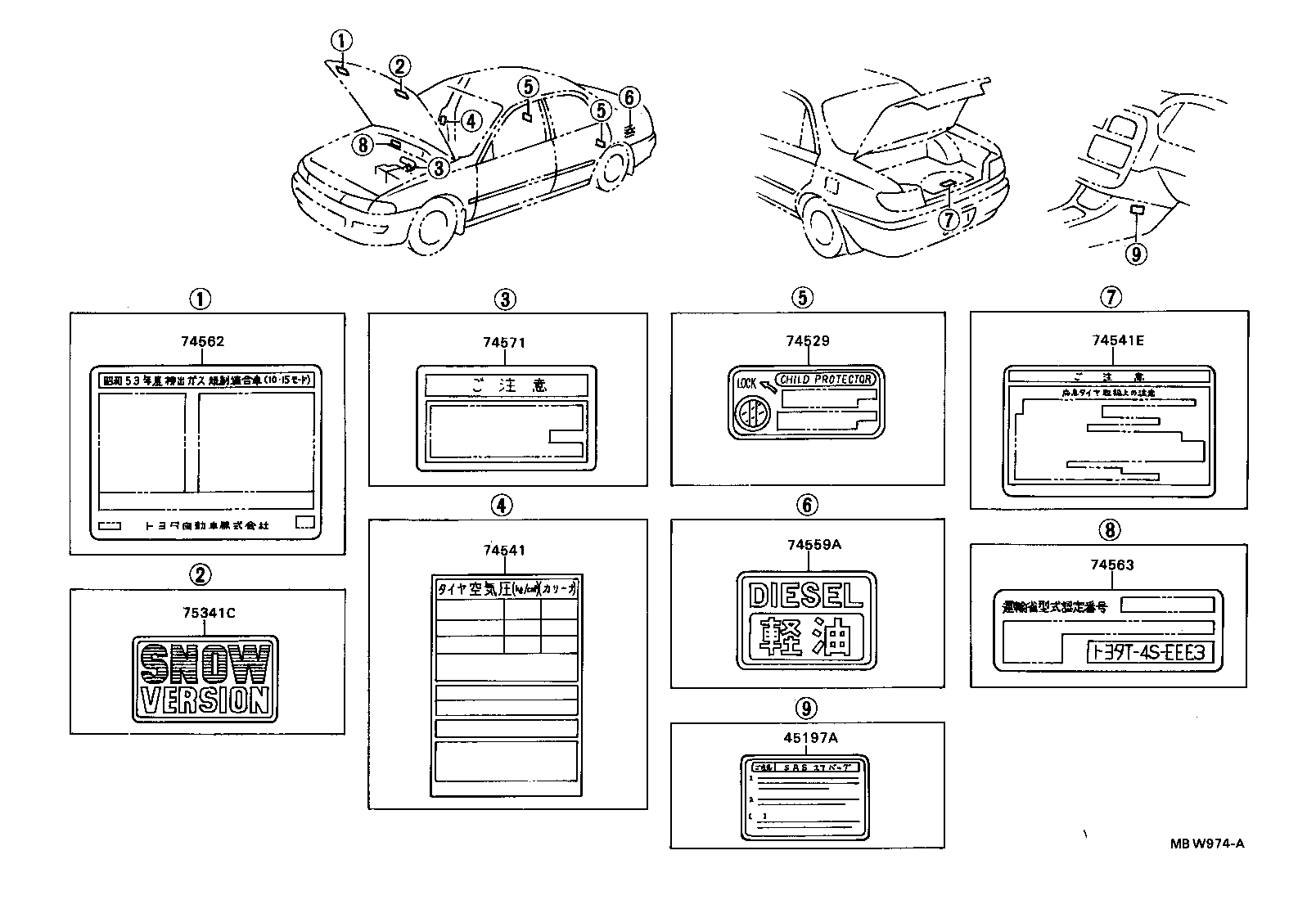

Click highlighted areas on diagram

diagram 45197A 74529 74541 74541E 74559A 74562 74563 74571 75341C
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-20050

AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI

 1
45197-20050

AT19#,CT19#,ST195

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-32010

AT19#,CT19#,ST19#

右側

 1
69349-32010

AT19#,CT19#,ST19#

左側

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-2B331

CT195,ST195

 1
42661-2B193

CT195,ST195

 1
42661-2B192

CT195,ST195

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

AT19#,CT19#,ST19#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-20590

ST195

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

AT19#,CT19#,ST19#

 1
75341C - PLATE, HOOD NAME
75341-20060

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
