ST195-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )CT195,ST195..MTM

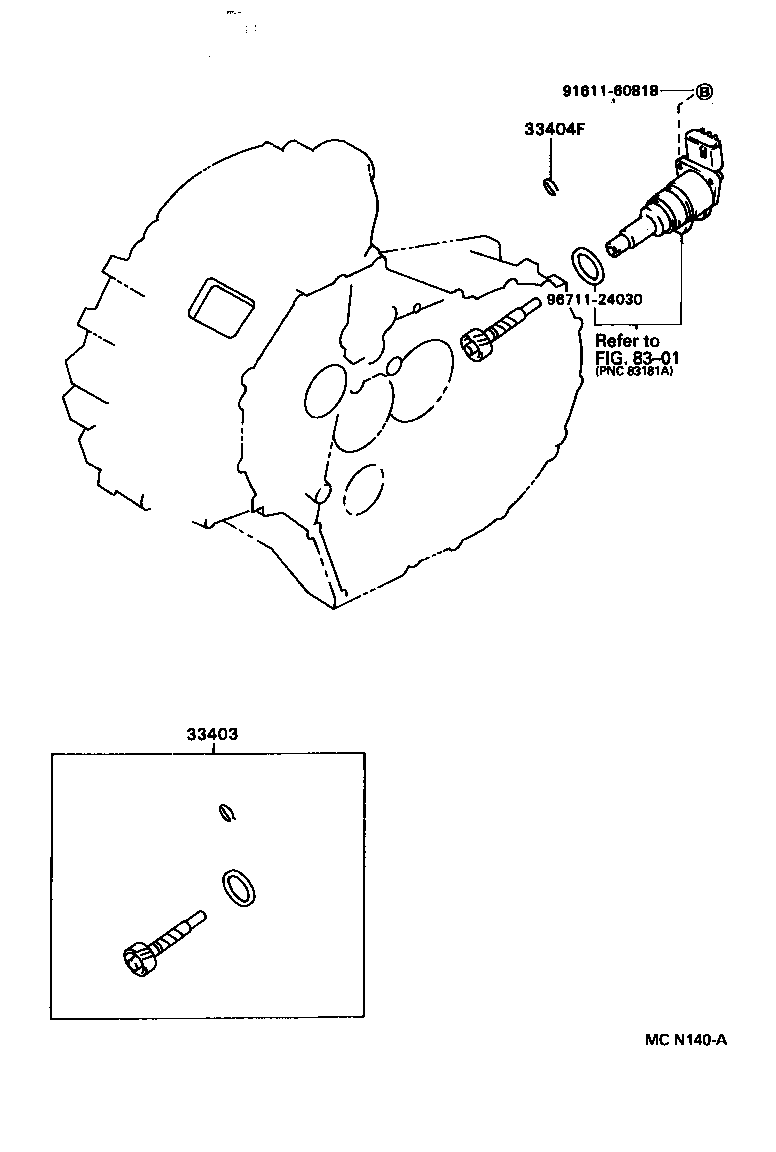

Click highlighted areas on diagram

E56F,E57F

diagram 33403 33404F 8301 9161160818 9671124030
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19476

CT195,ST195..MTM

歯数=30,ﾏｰｸ 30:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT19#,CT19#,ST19#..MTM

 1
Common parts
91611-60818
96711-24030
Linked diagrams
8301
