ST195-CEMEK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )3SFE

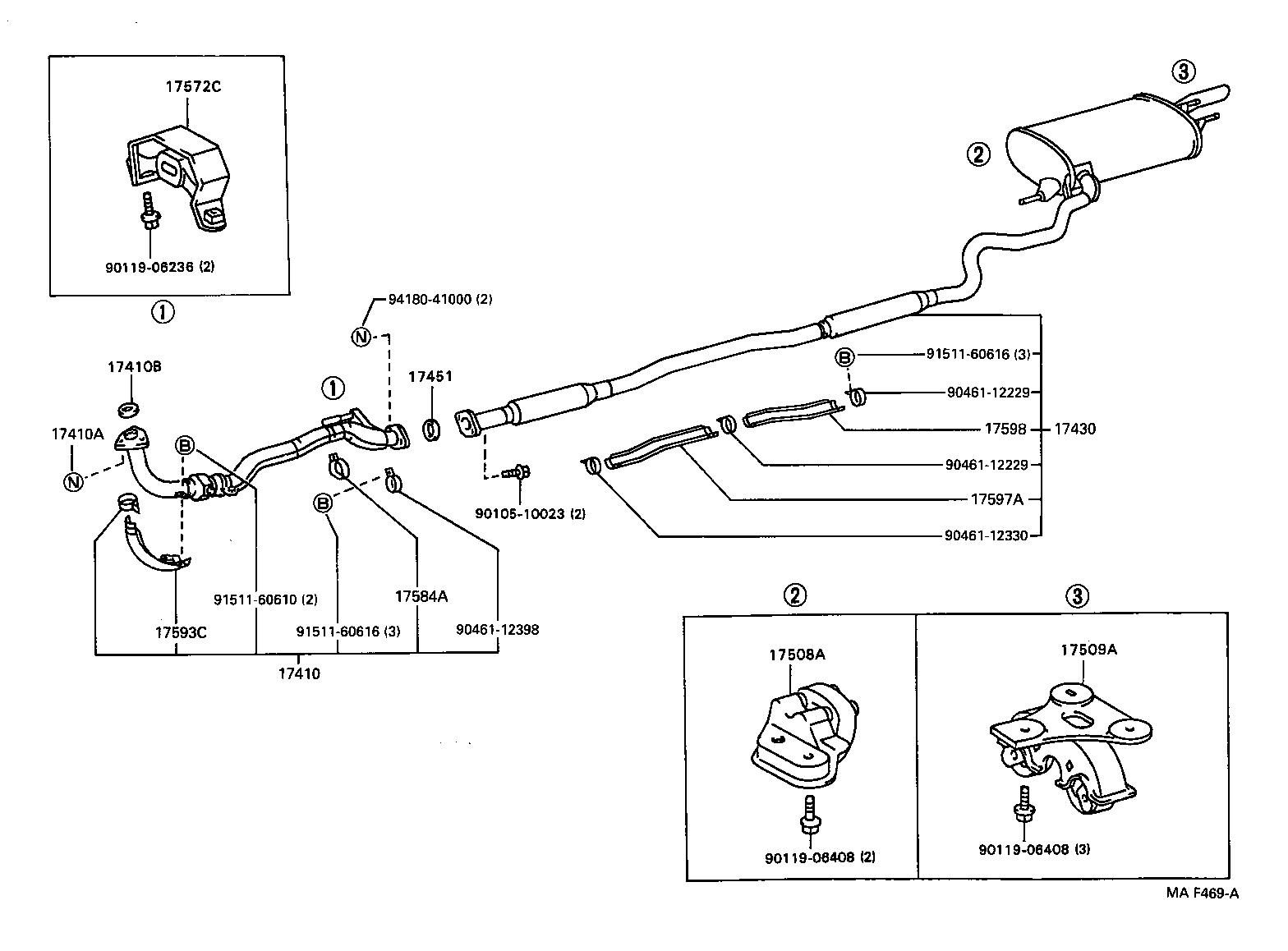

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17451 17508A 17509A 17572C 17584A 17593C 17597A 17598 9010510023 9011906236 9011906408 9011906408 9046112229 9046112229 9046112330 9046112398 9151160610 9151160616 9151160616 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7A130

3SFE..ST195

 1
17410-7A131

3SFE..ST195

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,7AFE,3SFE..AT190,191,ST195

 3
90179-10070

3SFE,4SFE..ST19#

 3
17410B - GASKET, EXHAUST PIPE
90917-06066

3SFE,4SFE..ST19#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7A220

3SFE..ST195

 1
17430-7A480

3SFE..ST195

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

3SFE..ST195

 1
90917-06046

4AFE,3SFE,4SFE..AT190,ST19#

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74070

2C,3SFE..CT195,ST195

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74110

4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74340

3SFE..ST195

 1
17584A - STOPPER, EXHUST PIPE, NO.1
17584-74140

3SFE..ST195

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-74530

3SFE..ST195

 1
17597A - PROTECTOR, EXHAUST PIPE, LOWER NO.5
17597-74110

3SFE..ST195

 1
17598 - PROTECTOR, EXAUST PIPE, LOWER NO.6
17598-74010

3SFE..ST195

 1
Common parts
90105-10023
90119-06236
90119-06408
90461-12229
90461-12330
90461-12398
91511-60610
91511-60616
94180-41000
