ST190-CEPSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

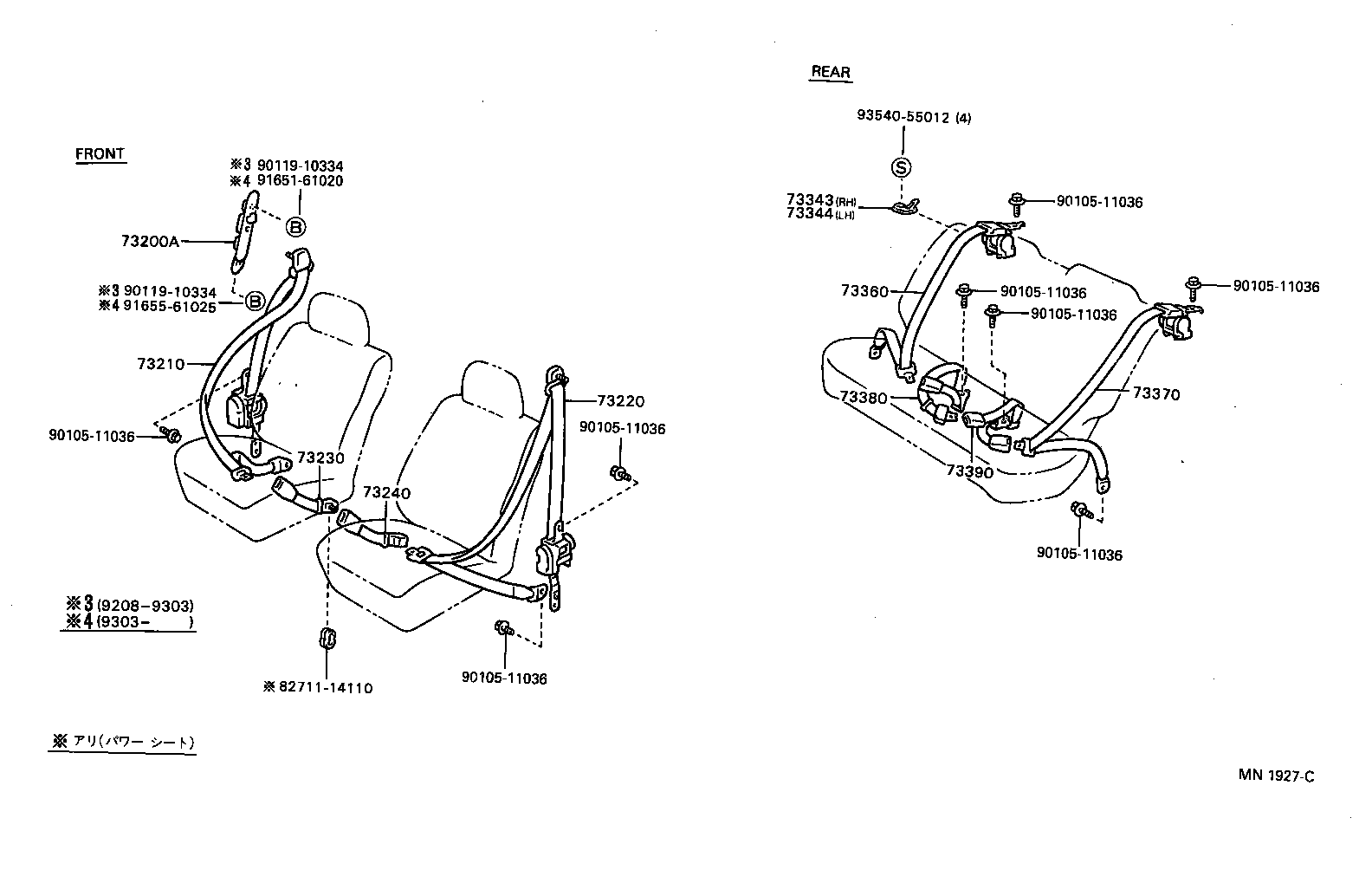

Click highlighted areas on diagram

diagram 73200A 73210 73220 73230 73240 73343 73344 73360 73370 73380 73390 8271114110 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9011910334 9011910334 9165161020 9165561025 9354055012
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-20030B1

AT19#,CT19#,ST19#

LIGHT GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20720B2

CT19#,ST19#..SE,SEEXT,SL

GRAY,TRIM1#

 1
73210-20721B2

CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 1
73210-20722B2

CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 1
73210-20723B2

CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20590B2

CT19#,ST19#..SE,SEEXT,SL

GRAY,TRIM1#

 1
73220-20591B2

CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 1
73220-20592B2

CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20551B2

CT19#,ST19#..SE,SL

GRAY,TRIM1#

 1
73230-20553B1

CT19#,ST19#..SE,SL

SHADOW GRAY,TRIM1#

 1
73230-20552B1

CT19#,ST19#..SE,SL

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20571B1

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
73230-20573B1

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
73230-20572B1

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-20020B1

AT190,CT19#,ST19#..SE,SEEXT,SL,SXI

SHADOW GRAY,TRIM1#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-20020B1

AT190,CT19#,ST19#..SE,SEEXT,SL,SXI

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20610B1

AT190,CT19#,ST19#..SE,SEEXT,SL,SXI

GRAY,TRIM1#

 1
73360-20611B1

AT190,CT19#,ST19#..SE,SEEXT,SL,SXI

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20390B1

AT190,CT19#,ST19#..SE,SEEXT,SL,SXI

GRAY,TRIM1#

 1
73370-20391B1

AT190,CT19#,ST19#..SE,SEEXT,SL,SXI

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20050B0

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
73470-20051B0

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20070B0

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
73480-20071B0

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
Common parts
82711-14110
90105-11036
90119-10334
91651-61020
91655-61025
93540-55012
