ST190-CEPGK (1992)
Toyota Carina Ff
(9208- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AT19#,CT19#,ST19# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80121 |
ST190..SEEXT |
1 | ||
| 84112-80120 |
ST190..SE;AT191,CT19#,ST195..SE,SEEXT |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12320 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H760 |
CT19#,ST19#..SE ｱﾘ(*RW) |
1 | ||
| 84310-2H770 |
ST190..SEEXT |
1 | ||
| 84310-2H750 |
CT19#,ST19#..SE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12020 |
AT190,CT19#,ST19#..SE,SEEXT,SL,SXI MATSUSHITA |
1 | ||
| 84329-12020 |
CT19#,ST19#..SE,SEEXT,SL MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AT19#,CT19#,ST19# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G230 |
CT19#,ST19#..SE ｱﾘ(*RW) |
1 | ||
| 84652-2G230 |
ST190..SEEXT |
1 | ||
| 84652-2G220 |
CT19#,ST19#..SE |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-20050 |
AT19#,CT190,ST19#..ATM |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90463-12570 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
(9208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,5AFE,2C,3SFE,4SFE..AT19#,CT190,ST19#..ATM |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT19#,CT19#,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
ST19# 15A |
5 | ||
| 90982-09005 |
AT19#,CT19#,ST19# 7.5A |
3 | ||
| 90982-09002 |
AT19#,CT19#,ST19# 10A |
3 | ||
| 90982-09004 |
AT19#,CT19#,ST19# 20A,黄 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT19#,CT19#,ST19# 30A,ﾋﾟﾝｸ |
2 | ||
| 90982-10002 |
AT19#,CT19#,ST19# 40A,緑 |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20011 |
ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20011 |
ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20011 |
ST19# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20080 |
AT19#,CT19#,ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20301 |
ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20301 |
ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20301 |
ST19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST19# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-20070 |
AT19#,ST19# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20010 |
ST19# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20010 |
ST19# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20010 |
ST19# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT19#,CT19#,ST19# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT19#,CT19#,ST19# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AT19#,CT19#,ST19# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04003 |
AT19#,CT19#,ST19# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT19#,CT19#,ST19# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 89492 - SENSOR, ELECTROLYTE LEVEL | ||||
| 89492-12010 |
ST19#..ATM..(SE,SEEXT,SL) |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 90119-06171 | ||||
| 90119-06595 | ||||
| 90179-05032 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 91635-60616 | ||||
| 91651-40614 | ||||
| 91652-B0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
(9208- )ST19#

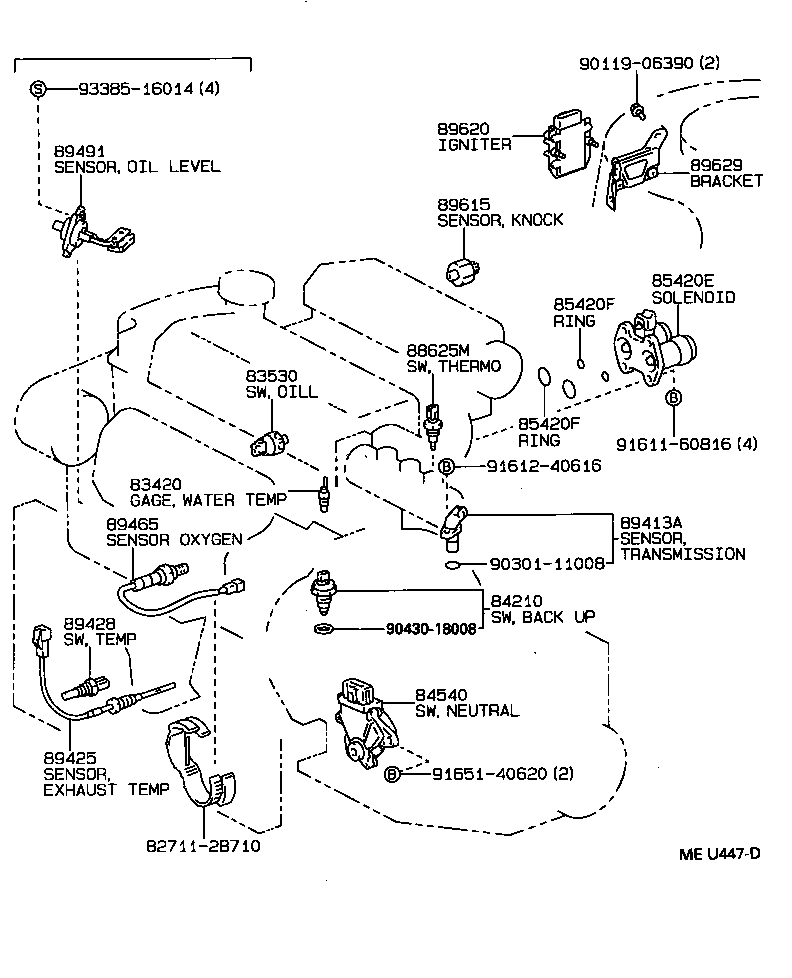

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20030 |
ST19# YAZAKI |
1 | ||
| 83420-16040 |
ST19# NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
ST19# YAZAKI |
1 | ||
| 83530-14060 |
ST19# NIPPONDENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16040 |
CT190,ST190..ATM |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-20410 |
CT19#,ST19# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-20210 |
ST19# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
CT19#,ST19# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20270 |
ST19# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33020 |
ST19#..SE,SEEXT,SL |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
ST19# TOYOTA |
1 | ||
| 89615-33020 |
ST19# NIPPONDENSO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
ST19# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20140 |
AT190,191,ST19# |
1 | ||
| Common parts | ||||
| 82711-2B710 | ||||
| 90119-06390 | ||||
| 90301-11008 | ||||
| 90430-18008 | ||||
| 91611-60816 | ||||
| 91612-40616 | ||||
| 91651-40620 | ||||
| 93385-16014 | ||||
(9208- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
CT19#,ST19#..SE,SEEXT |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20310 |
AT19#,CT19#,ST19# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT19#,CT19#,ST19# 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040C0 |
AT19#,CT19#,ST19#..SE,SEEXT,SX,SXI BLACK,TRIM1#,4# |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-20110 |
AT190,CT19#,ST19#..SE,SEEXT,SXI |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
AT190,CT19#,ST19#..SE,SEEXT,SXI 12V 0.87W |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20440 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ｶﾝﾚｲﾁ ｼﾖｳ,ｱﾘ(ﾜｲﾊﾟﾃﾞｱｲｻ-) |
1 | ||
| 84790-20430 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT19#,CT19#,ST19# 12V 0.7W |
1 | ||
| 84999-10320 |
AT19#,CT19#,ST19# 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT19#,CT19#,ST19# 12V 0.7W |
1 | ||
| 84999-10320 |
AT19#,CT19#,ST19# 14V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22310 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22310 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20140 |
CT19#,ST19#..SE SCﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(*57) OR ｱﾘ(*88) |
1 | ||
| 84870-20140 |
CT19#,ST19#..SE SCﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(*88) |
1 | ||
| 84870-20140 |
AT191,ST190..SEEXT |
1 | ||
| 84870-20080 |
AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-20020 |
CT19#,ST19#..SE,SEEXT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20230 |
AT19#,CT19#,ST19# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
AT19#,CT19#,ST19# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT19#,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 93540-44012 | ||||
| 93560-53010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
(9208- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT19#,CT19#,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AT19#,CT19#,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
ST19# 15A |
5 | ||
| 90982-09005 |
AT19#,CT19#,ST19# 7.5A |
3 | ||
| 90982-09002 |
AT19#,CT19#,ST19# 10A |
3 | ||
| 90982-09004 |
AT19#,CT19#,ST19# 20A,黄 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20070 |
AT19#,CT19#,ST19# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82605-20010 |
AT19#,CT19#,ST19# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-20250 |
AT19#,CT19#,ST19# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-20330 |
AT19#,CT19#,ST19# |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-20270 |
AT19#,CT19#,ST19# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-2B040 |
AT192..SX;AT192..MTM..SG;AT190,CT19#,ST19# |
1 | ||
| 82672-2B041 |
AT192..SX;AT192..MTM..SG;AT190,CT19#,ST19# |
1 | ||
| 82672-2B040 |
AT19#,CT19#,ST19# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-20200 |
AT19#,CT19#,ST19# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT19#,CT19#,ST19# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT19#,CT19#,ST19# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT19#,CT19#,ST19# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT19#,CT19#,ST19# |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-33010 |
AT19#,CT190,ST19#..ATM |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02009 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
CT195;ST195..SE,SX;AT190,CT190,ST190..SE,SEEXT,SGI,SL,SXI |
1 | ||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 90987-02009 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02009 |
AT190,CT19#,ST19#..SE,SEEXT,SL,SXI |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AT19#,CT19#,ST19# |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-20070 |
AT19#,CT190,ST19#..ATM |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-20050 |
AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20330 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-20050 |
ST190..SEEXT |
1 | ||
| 87989-20050 |
AT192,ST19#..SEEXT,SL,SX |
1 | ||
| 87989-20050 |
CT190;AT19#,CT195,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 87989-20050 |
CT19#,ST19#..SE |
1 | ||
| 87989-20050 |
CT19#,ST19#..SE |
1 | ||
| 87989-20050 |
AT19#,ST19#..SEEXT,SL,SX,SXI |
1 | ||
| 87989-20050 |
ST190..SEEXT,SL |
1 | ||
| 89140 - COMPUTER,ASSY MIRROR VIBLATION CONTROL | ||||
| 89140-20080 |
CT19#,ST19#..SE,SEEXT |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06070 | ||||
| 91635-60616 | ||||
| 91651-40616 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
(9208- )

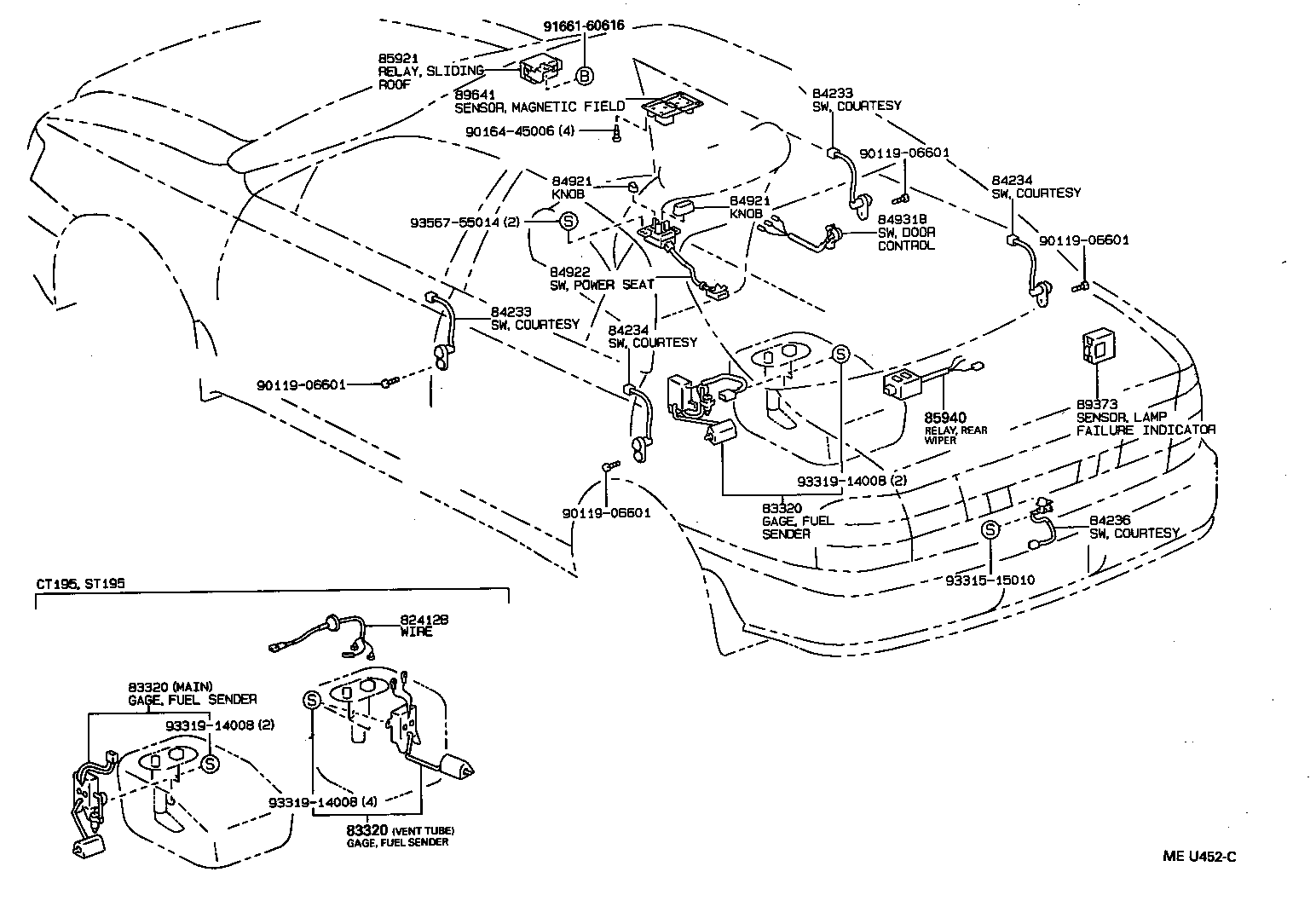

ROOF,DOOR,SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
ST190 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
ST190 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
ST190 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT19#,CT19#,ST19# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20360 |
AT19#,CT19#,ST19# |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-12010E1 |
ST190..SEEXT DK.ROSE,TRIM4#,SLIDE |
1 | ||
| 84921-22010B3 |
ST190..SEEXT BLUISH GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-12010P0 |
ST190..SEEXT SHADOW GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-22010E3 |
ST190..SEEXT DK.ROSE,TRIM4#,RECLINING |
1 | ||
| 84921-22010P0 |
ST190..SEEXT SHDOW GRAY,TRIM1#,RECLINING |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-12010E1 |
ST190..SEEXT DK.ROSE,TRIM4#,SLIDE |
1 | ||
| 84921-22010B3 |
ST190..SEEXT BLUISH GRAY,TRIM1#,RECLINING |
1 | ||
| 84921-12010P0 |
ST190..SEEXT SHADOW GRAY,TRIM1#,SLIDE |
1 | ||
| 84921-22010E3 |
ST190..SEEXT DK.ROSE,TRIM4#,RECLINING |
1 | ||
| 84921-22010P0 |
ST190..SEEXT SHDOW GRAY,TRIM1#,RECLINING |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-12010 |
ST190..SEEXT |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20240 |
AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20090 |
AT190,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20190 |
AT190,ST190..SEEXT,SL,SXI |
1 | ||
| 85940-20190 |
CT19#,ST19#..SE |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-20170 |
AT190..S;ST190..SE,SEEXT,SL;AT191,CT19#,ST195..SE,SEEXT ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 89373-20210 |
AT190..S;ST190..SE,SEEXT,SL;AT191,CT19#,ST195..SE,SEEXT |
1 | ||
| 89641 - SENSOR, MAGNETIC FIELD | ||||
| 89641-20060 |
AT190,ST19#..SE,SEEXT,SL,SXI |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90164-45006 | ||||
| 91661-60616 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
| 93567-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
