ST190-CEPEK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

Click highlighted areas on diagram

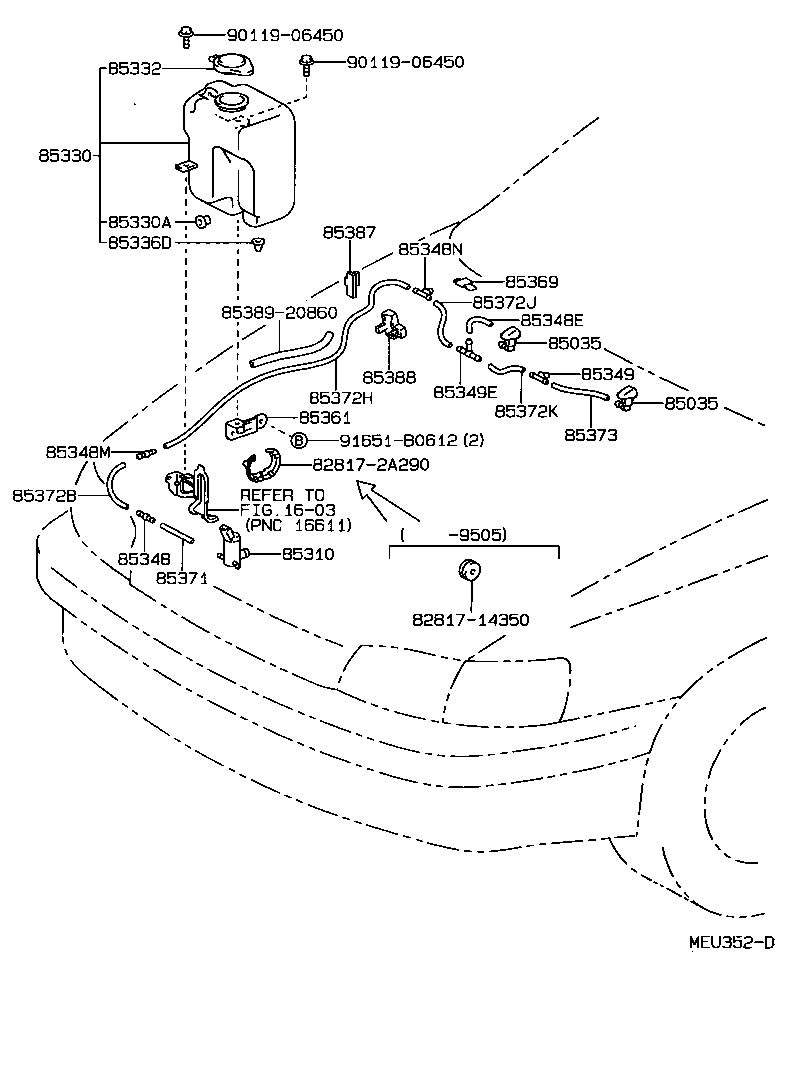

diagram 1603 8281714350 828172A290 85035 85035 85310 85330 85330A 85332 85336D 85348 85348E 85348M 85348N 85349 85349E 85361 85369 85371 85372B 85372H 85372J 85372K 85373 85387 85388 8538920860 9011906450 9011906450 91651B0612
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85382-20030

AT19#,CT19#,ST19#

左側

 1
85381-20050

AT19#,CT19#,ST19#

右側

 1
85035 - NOZZLE SUB-ASSY, WASHER
85382-20030

AT19#,CT19#,ST19#

左側

 1
85381-20050

AT19#,CT19#,ST19#

右側

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-12280

AT190,CT19#,ST19#..SE,SL,SXI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳｵﾂｼﾔ)

 1
85310-20210

AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20470

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

 1
85315-20480

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AT19#,CT19#,ST19#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-20340

AT19#,CT19#,ST19#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-20340

AT19#,CT19#,ST19#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AT19#,CT19#,ST19#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

AT19#,CT19#,ST19#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

AT19#,CT19#,ST19#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-20800

AT19#,CT19#,ST19#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-17050

AT19#,CT19#,ST19#

 1
85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5
85375-28110

AT19#,CT19#,ST19#

 1
85361 - HOLDER, WINDSHIELD WASHER
85361-20840

AT19#,CT19#,ST19#

 1
85361-20830

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85369 - CLAMP
85369-50030

AT19#,CT19#,ST19#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AT19#,CT19#,ST19#

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AT19#,CT19#,ST19#

L=1450

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AT19#,CT19#,ST19#

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

AT19#,CT19#,ST19#

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-59027

AT19#,CT19#,ST19#

*H,L=230

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT19#,CT19#,ST19#

L=1450

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-20860

AT19#,CT19#,ST19#

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85388-20860

AT19#,CT19#,ST19#

 1
Common parts
82817-14350
82817-2A290
85389-20860
90119-06450
91651-B0612
Linked diagrams
1603

(9208- )

Click highlighted areas on diagram

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

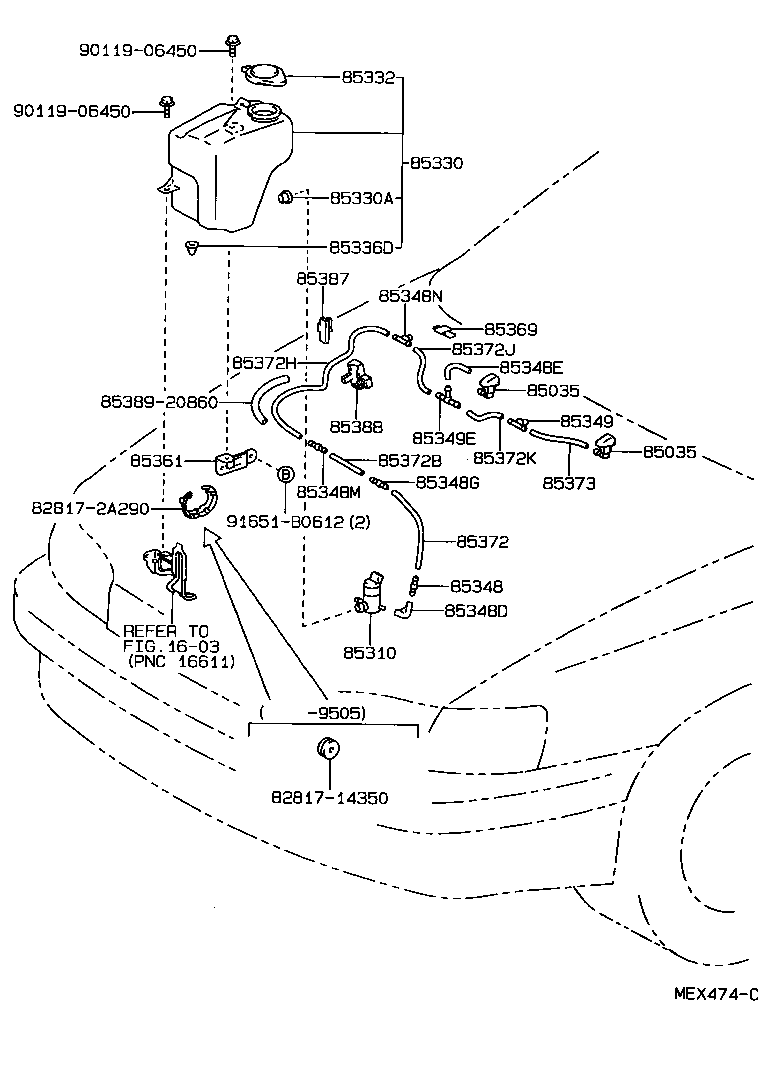

diagram 1603 8281714350 828172A290 85035 85035 85310 85330 85330A 85332 85336D 85348 85348D 85348E 85348G 85348M 85348N 85349 85349E 85361 85369 85372 85372B 85372H 85372J 85372K 85373 85387 85388 8538920860 9011906450 9011906450 91651B0612
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85382-20030

AT19#,CT19#,ST19#

左側

 1
85381-20050

AT19#,CT19#,ST19#

右側

 1
85035 - NOZZLE SUB-ASSY, WASHER
85382-20030

AT19#,CT19#,ST19#

左側

 1
85381-20050

AT19#,CT19#,ST19#

右側

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-12280

AT190,CT19#,ST19#..SE,SL,SXI

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳｵﾂｼﾔ)

 1
85310-20210

AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20470

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

 1
85315-20480

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AT19#,CT19#,ST19#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-20340

AT19#,CT19#,ST19#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-20340

AT19#,CT19#,ST19#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AT19#,CT19#,ST19#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

AT19#,CT19#,ST19#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

AT19#,CT19#,ST19#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-20800

AT19#,CT19#,ST19#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-17050

AT19#,CT19#,ST19#

 1
85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5
85375-28110

AT19#,CT19#,ST19#

 1
85361 - HOLDER, WINDSHIELD WASHER
85361-20840

AT19#,CT19#,ST19#

 1
85361-20830

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85369 - CLAMP
85369-50030

AT19#,CT19#,ST19#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

CT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AT19#,CT19#,ST19#

L=1450

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AT19#,CT19#,ST19#

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

AT19#,CT19#,ST19#

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-59027

AT19#,CT19#,ST19#

*H,L=230

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT19#,CT19#,ST19#

L=1450

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-20860

AT19#,CT19#,ST19#

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85388-20860

AT19#,CT19#,ST19#

 1
Common parts
82817-14350
82817-2A290
85389-20860
90119-06450
91651-B0612
Linked diagrams
1603
