ST190-CEPEK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )3SFE,4SFE..ATM

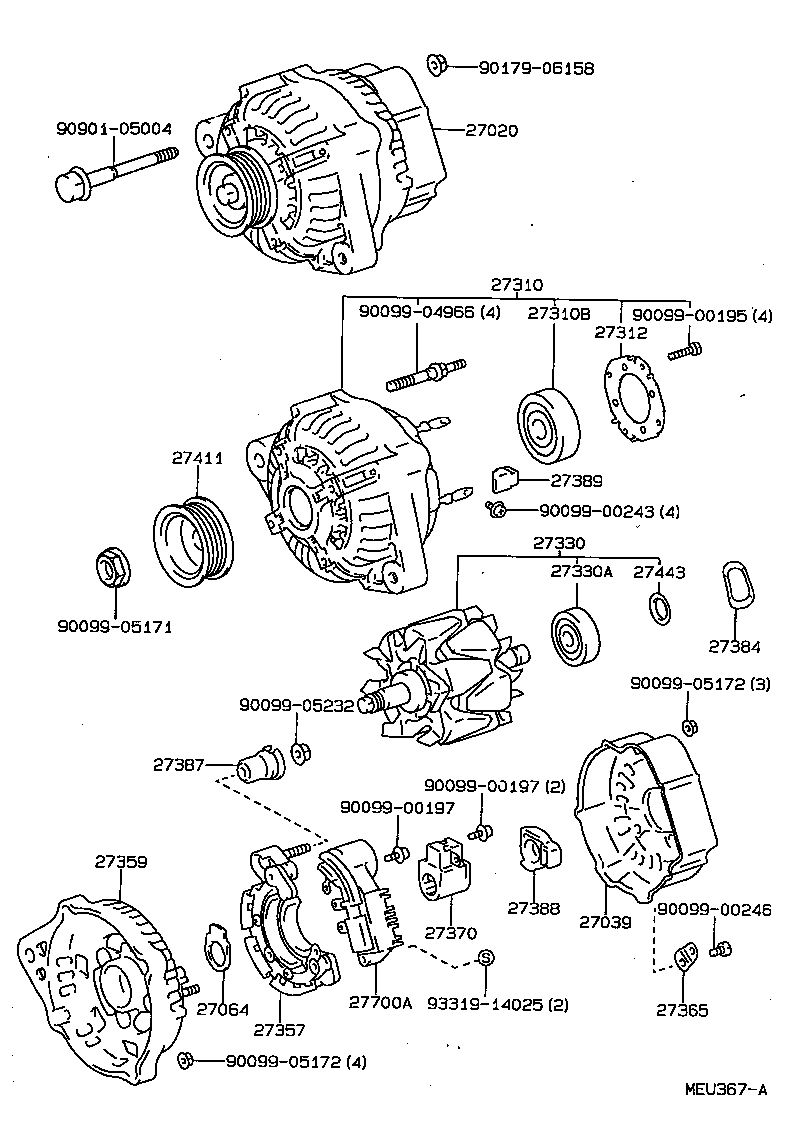

Click highlighted areas on diagram

12V 80A

diagram 27020 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905171 9009905172 9009905172 9009905232 9017906158 9090105004 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74390

3SFE,4SFE..ST19#..ATM

12V 80A

 1
27039 - COVER, ALTERNATOR REAR END
27039-74390

3SFE,4SFE..ST19#..ATM

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74120

3SFE,4SFE..ST19#..ATM

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27312 - PLATE, RETAINER
27312-42010

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

2C..CT19#;4AFE,5AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,5AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-74260

3SFE,4SFE..ST19#..ATM

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74140

3SFE,4SFE..ST19#..ATM

 1
27365 - PLATE, TERMINAL
27365-55080

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27384 - WASHER
27384-50030

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27387 - INSULATOR, TERMINAL
27387-74290

3SFE,4SFE..ST19#..ATM

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27389 - INSULATOR, TERMINAL
27389-42010

2C..CT19#;4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 4
27411 - PULLEY, ALTERNATOR
27411-42030

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#..ATM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE,5AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

4AFE,5AFE,7AFE,3SFE,4SFE..AT19#,ST19#

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05232
90179-06158
90901-05004
93319-14025
