ST190-CEMSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

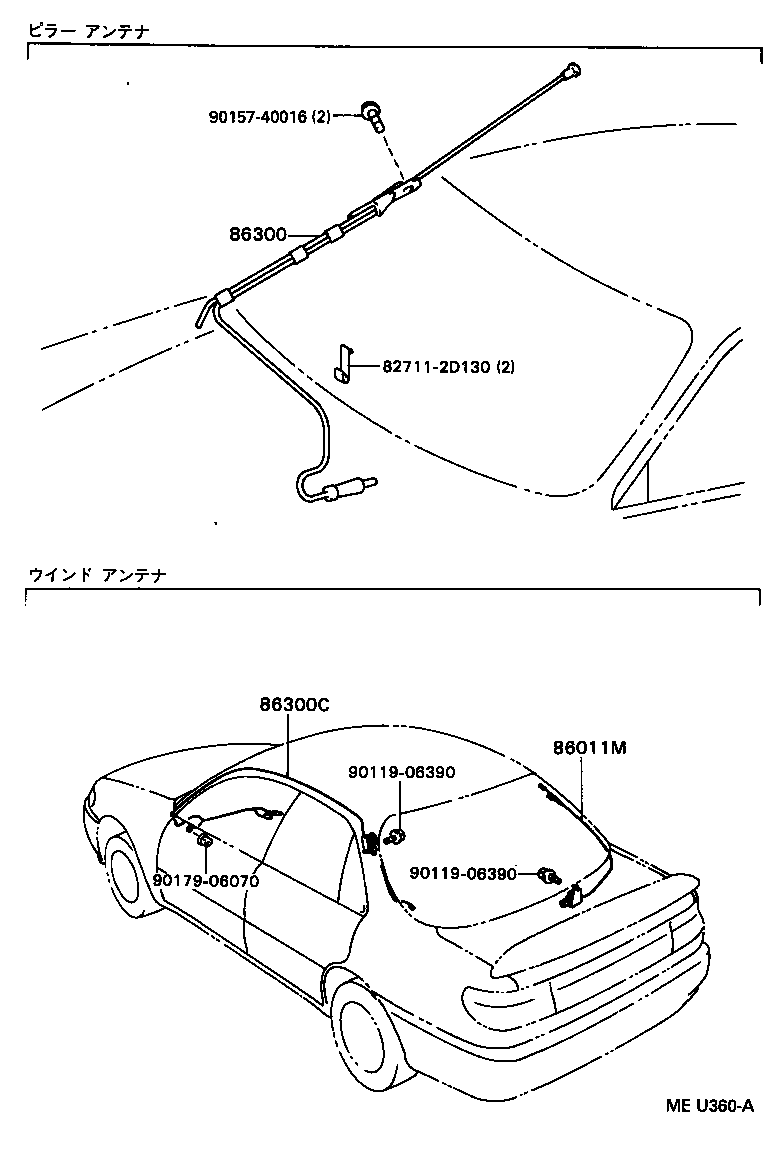

Click highlighted areas on diagram

diagram 827112D130 86011M 86300 86300C 9011906390 9011906390 9015740016 9017906070
Part # Description Qty Price
86011M - FILTER, NOISE
90980-05249

AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-2B140

AT190..S;ST190..SE,SL;AT191,CT19#,ST195..SE,SEEXT,SL

 1
86300-2B150

ST190..SL

ｱﾘ(CD ﾌﾟﾚ-ﾔ) OR ｱﾘ(DSP)

 1
Common parts
82711-2D130
90119-06390
90157-40016
90179-06070
