ST190-CEMSK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

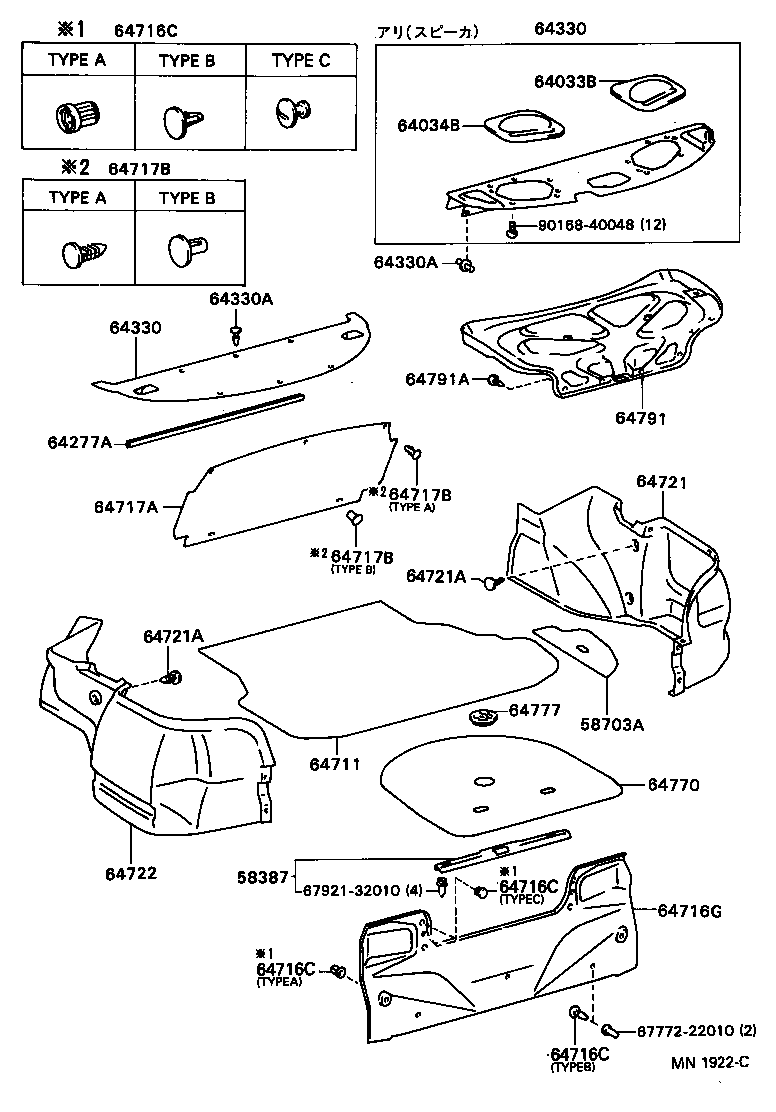

Click highlighted areas on diagram

diagram 58387 58703A 64033B 64034B 64277A 64330 64330 64330A 64330A 64711 64716C 64716C 64716C 64716C 64716G 64717A 64717B 64717B 64717B 64721 64721A 64721A 64722 64770 64777 64791 64791A 6777222010 6792132010 9016840048
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-20040C0

ST190..SL

BLACK,TRIM1#

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20160

AT19#,CT19#,ST19#

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-20310B1

ST190..SEEXT,SL

GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-20250B1

ST190..SEEXT,SL

GRAY,TRIM1#

 1
64277A - MOULDING, ROOM PARTITION TRIM
64277-20050C1

AT191,ST190..SL

BLACK,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B750B1

ST190..SL

ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#

 1
64330-2B710B1

ST190..SL

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) & ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#

 1
64330-2B770B1

ST190..SL

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) & ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#

 1
64330-2B760B1

AT190,ST190..SL,SXI

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),GRAY,TRIM1#

 1
64330-2B720B1

AT190,ST190..SL,SXI

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),GRAY,TRIM1#

 1
64330-2B660B1

AT190..S;AT191,CT19#,ST19#..SE,SL

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),GRAY,TRIM1#

 1
64330-2B740B1

AT190..S;AT191,CT19#,ST19#..SE,SL

GRAY,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B750B1

ST190..SL

ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#

 1
64330-2B710B1

ST190..SL

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) & ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#

 1
64330-2B770B1

ST190..SL

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) & ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#

 1
64330-2B760B1

AT190,ST190..SL,SXI

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),GRAY,TRIM1#

 1
64330-2B720B1

AT190,ST190..SL,SXI

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),GRAY,TRIM1#

 1
64330-2B660B1

AT190..S;AT191,CT19#,ST19#..SE,SL

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),GRAY,TRIM1#

 1
64330-2B740B1

AT190..S;AT191,CT19#,ST19#..SE,SL

GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-07041P0

AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 8
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-07041P0

AT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL

SHADOW GRAY,TRIM1#

 8
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2B010C0

AT191,ST190..SL

BLACK,TRIM1#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-06158C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ A

 2
90467-09032C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ B

 2
90904-67025

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

ﾀｲﾌﾟ C

 2
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-06158C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ A

 2
90467-09032C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ B

 2
90904-67025

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

ﾀｲﾌﾟ C

 2
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-06158C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ A

 2
90467-09032C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ B

 2
90904-67025

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

ﾀｲﾌﾟ C

 2
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-06158C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ A

 2
90467-09032C0

ST190..SL

BLACK,TRIM1#,ﾀｲﾌﾟ B

 2
90904-67025

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

ﾀｲﾌﾟ C

 2
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-20280C0

AT191,ST190..SL

BLACK,TRIM1#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07151

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 9
90467-07151

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 11
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07151

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 9
90467-07151

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 11
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-20250C0

AT191,ST190..SL

BLACK,TRIM1#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20190

AT19#,CT19#,ST19#

ｵｳｷﾕｳﾖｳ ﾀｲﾔ ｲｶﾞｲ

 1
64770-20180

AT19#,CT19#,ST19#

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

AT19#,CT19#,ST19#

 1
64791 - COVER, BACK DOOR TRIM
64791-20080

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64791A - CLIP(FOR BACK DOOR TRIM)
90467-07151C0

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,BLACK

 18
Common parts
67772-22010
67921-32010
90168-40048
