ST190-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

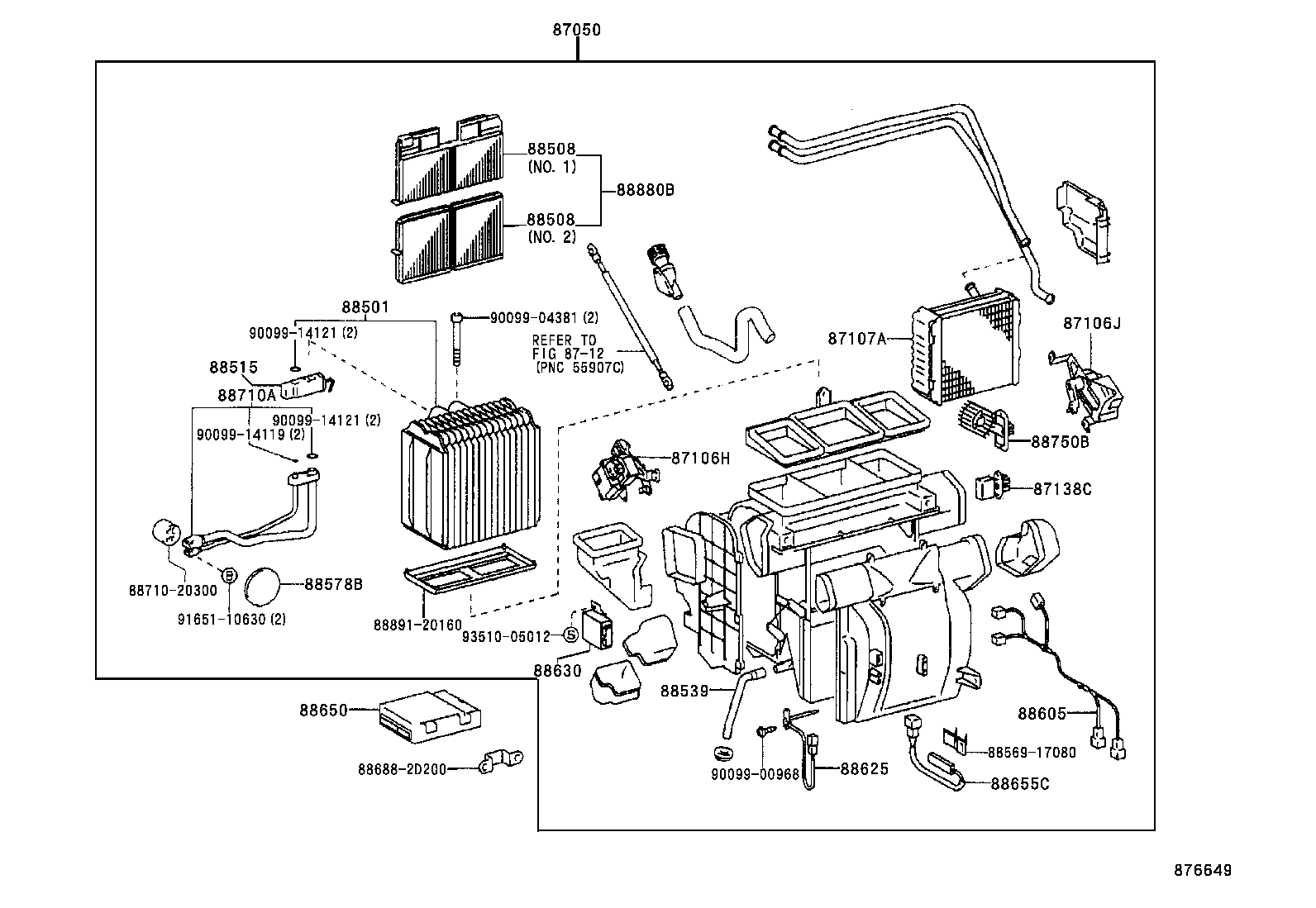

Click highlighted areas on diagram

diagram 87050 87106H 87106J 87107A 8712 87138C 88501 88508 88508 88515 88539 8856917080 88578B 88605 88625 88630 88650 88655C 886882D200 8871020300 88710A 88750B 88880B 8889120160 9009900968 9009904381 9009914119 9009914121 9009914121 9165110630 9351005012
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-20330

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
87050-20340

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87050-20360

AT190..M;AT191,192,ST19#..SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ)

 1
87050-20350

AT190..M;AT191,192,ST19#..SX,SXI

ﾅｼ(ｴｱｺﾝ)

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-20200

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20210

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-20570

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20600

AT19#,CT19#,ST19#

 1
87138C - RESISTOR, BLOWER
87138-20240

AT190..M;AT191,192,ST19#..SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138-20230

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20290

AT19#,CT19#,ST19#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.2

 1
88508-20020

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.1

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.2

 1
88508-20020

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.1

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AT19#,CT19#,ST19#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20490

AT19#,CT19#,ST19#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D220

AT190..M;AT191,192,ST19#..SX,SXI

ﾅｼ(ｴｱｺﾝ)

 1
88605-2D190

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20390

AT19#,CT19#,ST19#

 1
88630 - RELAY ASSY, COOLER
88630-20260

AT190..M;AT191,192,ST19#..SX,SXI

ﾅｼ(ｴｱｺﾝ)

 1
88630-20270

AT192,ST19#..SX

*AAC---ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ

 1
88655C - THERMO SWITCH ASSY
88655-20010

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
88655-20010

AT192,ST19#..SX

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20380

AT192,ST19#..SX

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20020

AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI

 1
88880B - FILTER ASSY, CLEAN AIR
88880-20010

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
88569-17080
88688-2D200
88710-20300
88891-20160
90099-00968
90099-04381
90099-14119
90099-14121
91651-10630
93510-05012
Linked diagrams
8712
