ST190-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )CT190,ST190..MTM

Click highlighted areas on diagram

S50

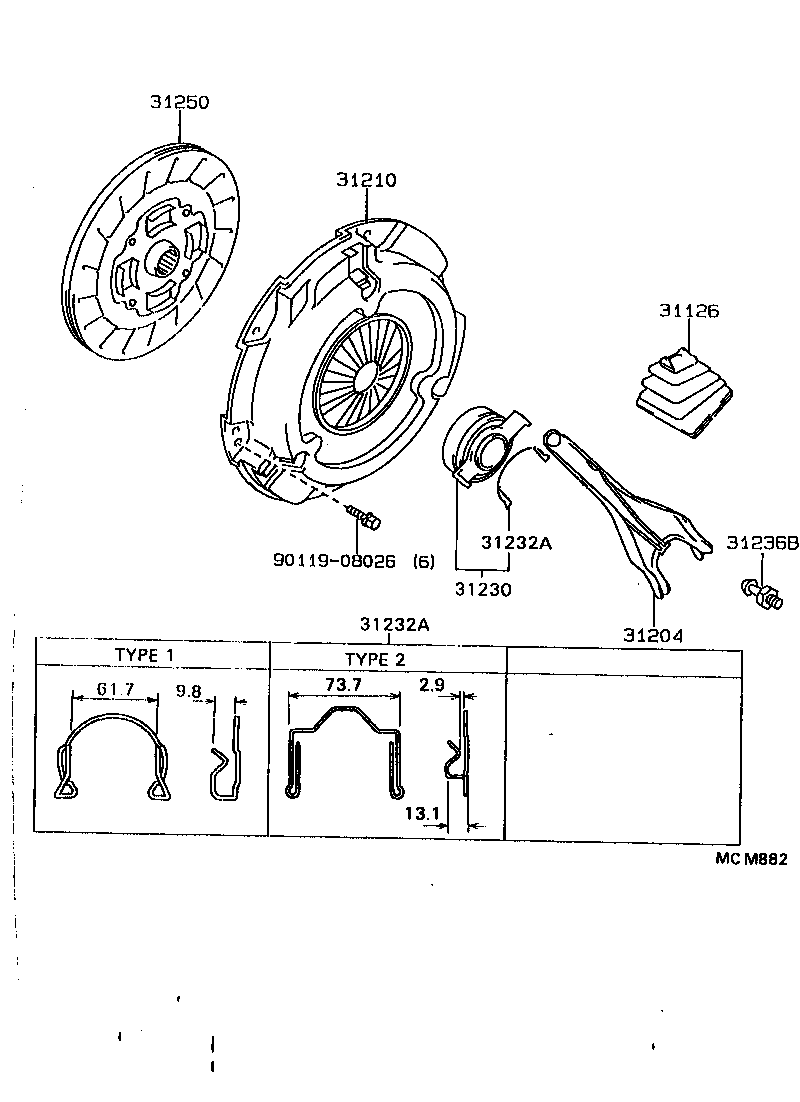

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-32010

CT19#,ST19#..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20100

CT19#,ST19#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-32051

ST190..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-32060

CT190,ST190..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20020

CT19#,ST19#..MTM

TYPE 1

 1
31232-32050

CT190,ST190..MTM

TYPE 2

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20020

CT19#,ST19#..MTM

TYPE 1

 1
31232-32050

CT190,ST190..MTM

TYPE 2

 1
31236B - SUPPORT, RELEASE FORK
31236-32010

CT190,ST190..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-32042

ST190..MTM

 1
Common parts
90119-08026
