ST190-CEMMK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

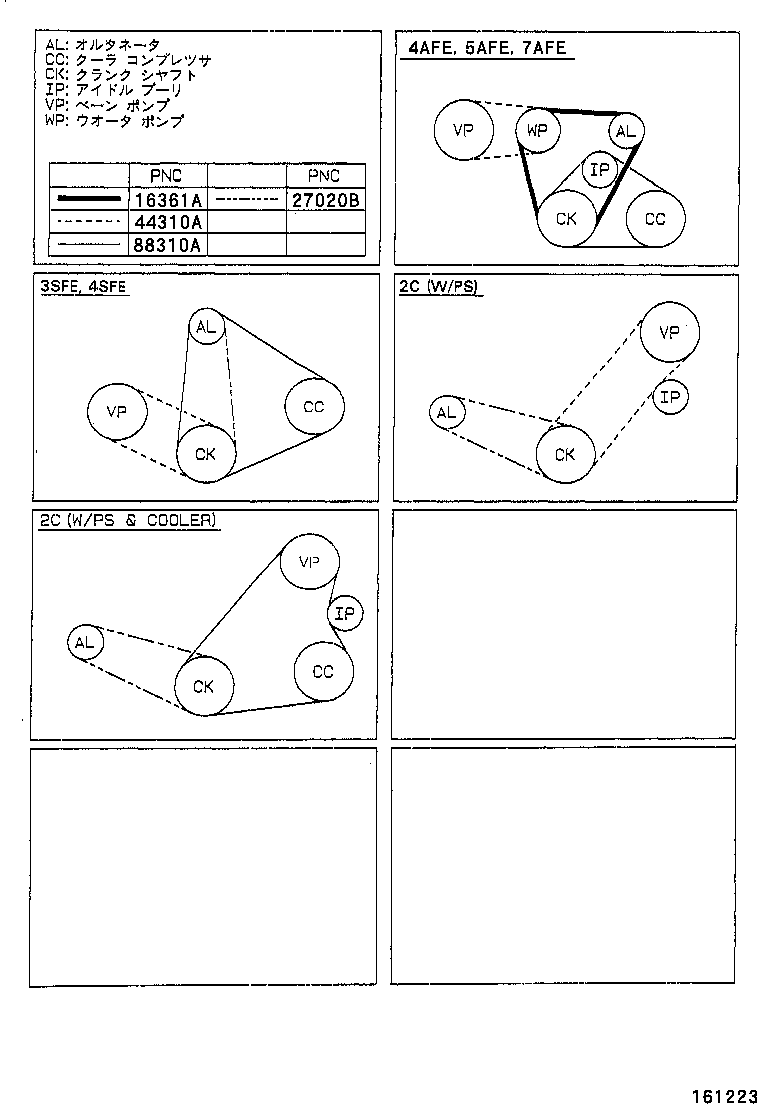

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02355

3SFE,4SFE..ST19#..MTM..(SG,SX)

MITSUBOSHI

 1
90916-02356

3SFE,4SFE..ST19#..MTM..(SG,SX)

BANDO

 1
90916-02356

3SFE,4SFE..ST19#..SG,SX

BANDO

 1
90916-02355

3SFE,4SFE..ST19#..SG,SX

MITSUBOSHI

 1
44310A - BELT, V(FOR VANE PUMP)
99363-70760

ST19#

長さ=760

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02345

ST19#

長さ=1115,MITSUBOSHI

 1
90916-02344

ST19#

長さ=1115,BANDO

 1
