ST190-CEMEK (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

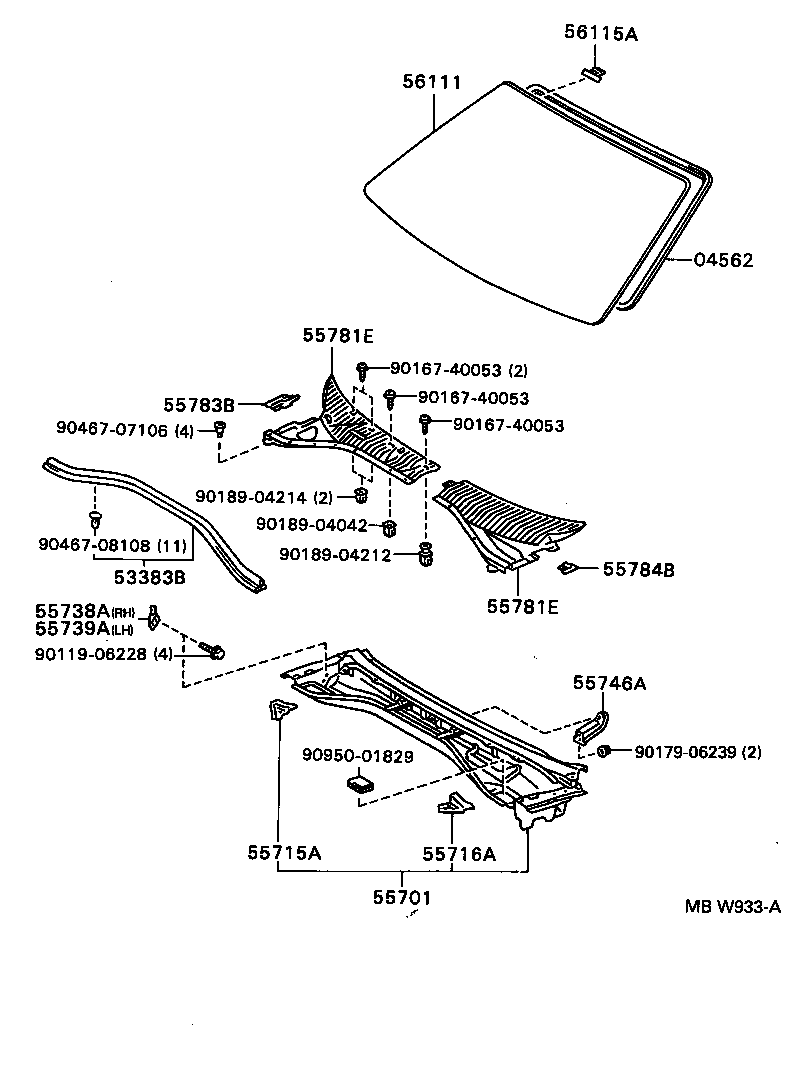

Click highlighted areas on diagram

diagram 04562 53383B 55701 55715A 55716A 55738A 55739A 55746A 55781E 55781E 55783B 55784B 56111 56115A 9011906228 9016740053 9016740053 9016740053 9017906239 9018904042 9018904212 9018904214 9046707106 9046708108 9095001829
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AT19#,CT19#,ST19#

 1
53383B - SEAL, HOOD TO COWL TOP
53383-20160

AT19#,CT19#,ST19#

 1
55701 - PANEL SUB-ASSY, COWL
55700-2B010

AT190,191,ST19#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-20120

AT19#,CT19#,ST19#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-20090

AT19#,CT19#,ST19#

 1
55738A - STOPPER, HOOD, RH
55738-20060

AT19#,CT19#,ST19#

 1
55739A - STOPPER, HOOD, LH
55739-20060

AT19#,CT19#,ST19#

 1
55746A - REINFORCEMENT, COWL TOP, INNER LOWER
55746-20100

AT19#,CT19#,ST19#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55709-20100

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,左側

 1
55708-20170

AT19#,CT19#,ST19#

右側

 1
55709-20090

AT19#,CT19#,ST19#

左側

 1
55708-20180

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,右側

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55709-20100

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,左側

 1
55708-20170

AT19#,CT19#,ST19#

右側

 1
55709-20090

AT19#,CT19#,ST19#

左側

 1
55708-20180

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,右側

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-20160

AT19#,CT19#,ST19#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-20090

AT19#,CT19#,ST19#

 1
56111 - GLASS, WINDSHIELD
56111-2B260

CT19#,ST19#..SE,SEEXT

*EHTL,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-2B270

CT19#,ST19#..SE,SEEXT

*LAM,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56111-2B330

CT19#,ST19#..SE,SEEXT

*LAM,T=4.7,ﾌﾞﾙｰ

 1
56111-2B460

CT19#,ST19#..SE,SEEXT

*EHTL,T=4.7,ﾌﾞﾙｰ

 1
56111-2B340

CT19#,ST19#..SE,SEEXT

*EHTL,T=4.7,ﾌﾞﾙｰ

 1
56111-2B480

CT19#,ST19#..SE,SEEXT

*EHTL,T=4.7,ﾌﾞﾛﾝｽﾞ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-20040

AT19#,CT19#,ST19#

 2
Common parts
90119-06228
90167-40053
90179-06239
90189-04042
90189-04212
90189-04214
90467-07106
90467-08108
90950-01829
