ST170G-CWPXM (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )ST170..4FC

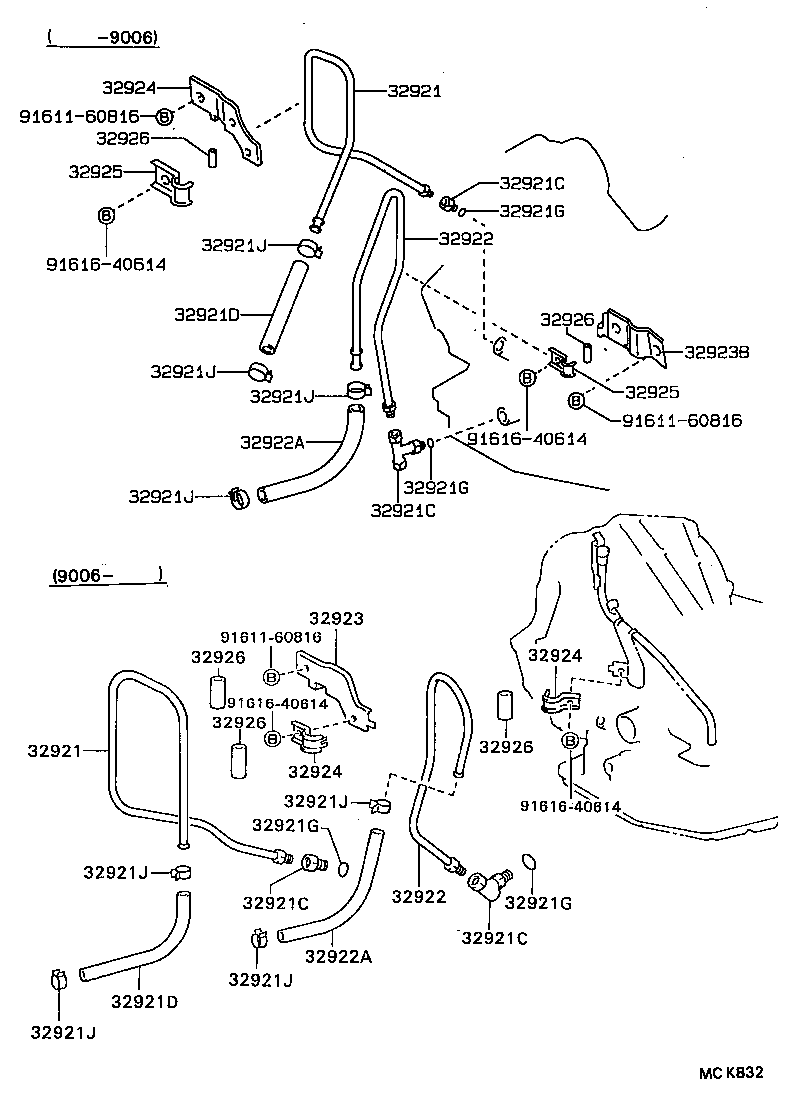

Click highlighted areas on diagram

A140L

diagram 32921 32921 32921C 32921C 32921C 32921C 32921D 32921D 32921G 32921G 32921G 32921G 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32922 32922 32922A 32922A 32923 32923B 32924 32924 32924 32925 32925 32926 32926 32926 32926 32926 9161160816 9161160816 9161160816 9161640614 9161640614 9161640614 9161640614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20290

ST170..4FC

 1
32921-20291

ST170..4FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20290

ST170..4FC

 1
32921-20291

ST170..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

AT175,ET176,ST170..ATM

INLET

 1
32901-32010

ST170..4FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

AT175,ET176,ST170..ATM

INLET

 1
32901-32010

ST170..4FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

AT175,ET176,ST170..ATM

INLET

 1
32901-32010

ST170..4FC

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

AT175,ET176,ST170..ATM

INLET

 1
32901-32010

ST170..4FC

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15042

ST170..4FC

 1
90445-16026

ST170..4FC

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15042

ST170..4FC

 1
90445-16026

ST170..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT170,171,CT17#,ET176,ST170..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT170,171,CT17#,ET176,ST170..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT170,171,CT17#,ET176,ST170..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AT170,171,CT17#,ET176,ST170..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AT17#,CT17#,ET176,ST170..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-32040

ST170..4FC

 1
32922-32041

ST170..4FC

 1
32922-32042

ST170..4FC

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-32040

ST170..4FC

 1
32922-32041

ST170..4FC

 1
32922-32042

ST170..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-16026

CT17#,ST170..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-16026

CT17#,ST170..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-20090

ST170..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-20110

ST170..4FC

 1
32923-32021

ST170..4FC

 1
32923-20111

ST170..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-20110

ST170..4FC

 1
32923-32021

ST170..4FC

 1
32923-20111

ST170..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-20110

ST170..4FC

 1
32923-32021

ST170..4FC

 1
32923-20111

ST170..4FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-10082

ST170..4FC

 2
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-10082

ST170..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST170..4FC

長さ=25,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST170..4FC

長さ=25,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST170..4FC

長さ=25,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST170..4FC

長さ=25,内径=8

 3
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

ST170..4FC

長さ=25,内径=8

 3
Common parts
91611-60816
91616-40614
