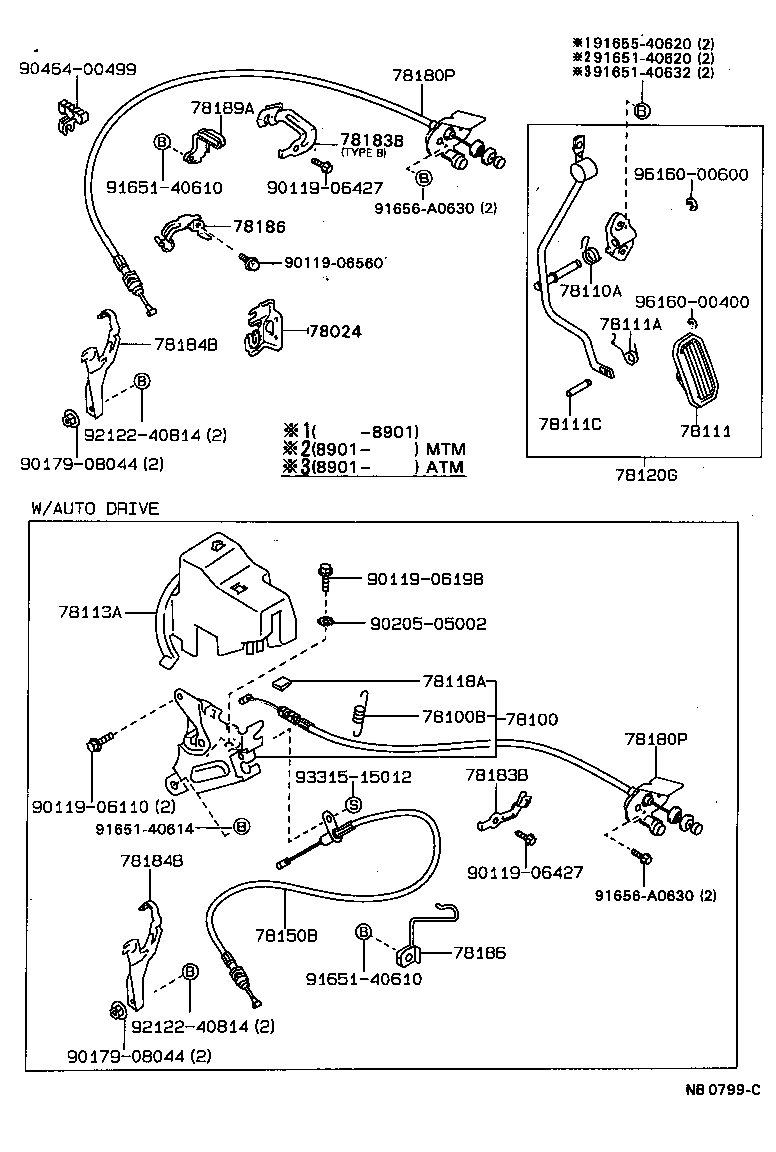

ST170G-CWMXM (1988)
Toyota Carina Ff
(8805- )ST170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-20030 |
ST170..SE,SX |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
ST170..SE,SX |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
AT17#,CT17#,ET176,ST170..MTM |
1 | ||
| 90508-18050 |
ET176,ST170..MTM |
1 | ||
| 90508-18050 |
CT17#,ET176,ST170..MTM |
1 | ||
| 90508-18050 |
ST170..5F..(SE,SX) ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT17#,CT17#,ET176,ST170..MTM |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18048 |
CT17#,ET176,ST170..MTM |
1 | ||
| 90508-18050 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 90508-18048 |
ET176,ST170..MTM |
1 | ||
| 90508-18048 |
ST170..5F..(SE,SX) ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-20141 |
ST170..SE,SX |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-12010 |
ST170..SE,SX |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20310 |
ET176,ST170..MTM |
1 | ||
| 78120-20300 |
AT17#,CT17#,ET176,ST170..MTM |
1 | ||
| 78120-20310 |
ST170..5F..(SE,SX) ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-20140 |
ST170..SE,SX |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B060 |
ST170 |
1 | ||
| 78180-2B370 |
ST170..SE,SX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B060 |
ST170 |
1 | ||
| 78180-2B370 |
ST170..SE,SX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20120 |
AT171,ST170 ﾀｲﾌﾟ B |
1 | ||
| 78183-20120 |
CT17#..5F;AT170,171,ST170 ﾀｲﾌﾟ B |
1 | ||
| 78183-20120 |
AT170,171,CT17#,ST170 ﾀｲﾌﾟ B |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20120 |
AT171,ST170 ﾀｲﾌﾟ B |
1 | ||
| 78183-20120 |
CT17#..5F;AT170,171,ST170 ﾀｲﾌﾟ B |
1 | ||
| 78183-20120 |
AT170,171,CT17#,ST170 ﾀｲﾌﾟ B |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-20160 |
ST170 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-20160 |
ST170 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-20100 |
ST170..SE,SX |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-20100 |
ST170..SE,SX |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-32040 |
ST170 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90119-06198 | ||||
| 90119-06427 | ||||
| 90119-06560 | ||||
| 90179-08044 | ||||
| 90205-05002 | ||||
| 90464-00499 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40632 | ||||
| 91655-40620 | ||||
| 91656-A0630 | ||||
| 92122-40814 | ||||
| 93315-15012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
