ST170G-CWMXM (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805-9005)4SFI ; (9005- )4SFE

Click highlighted areas on diagram

12V 70A

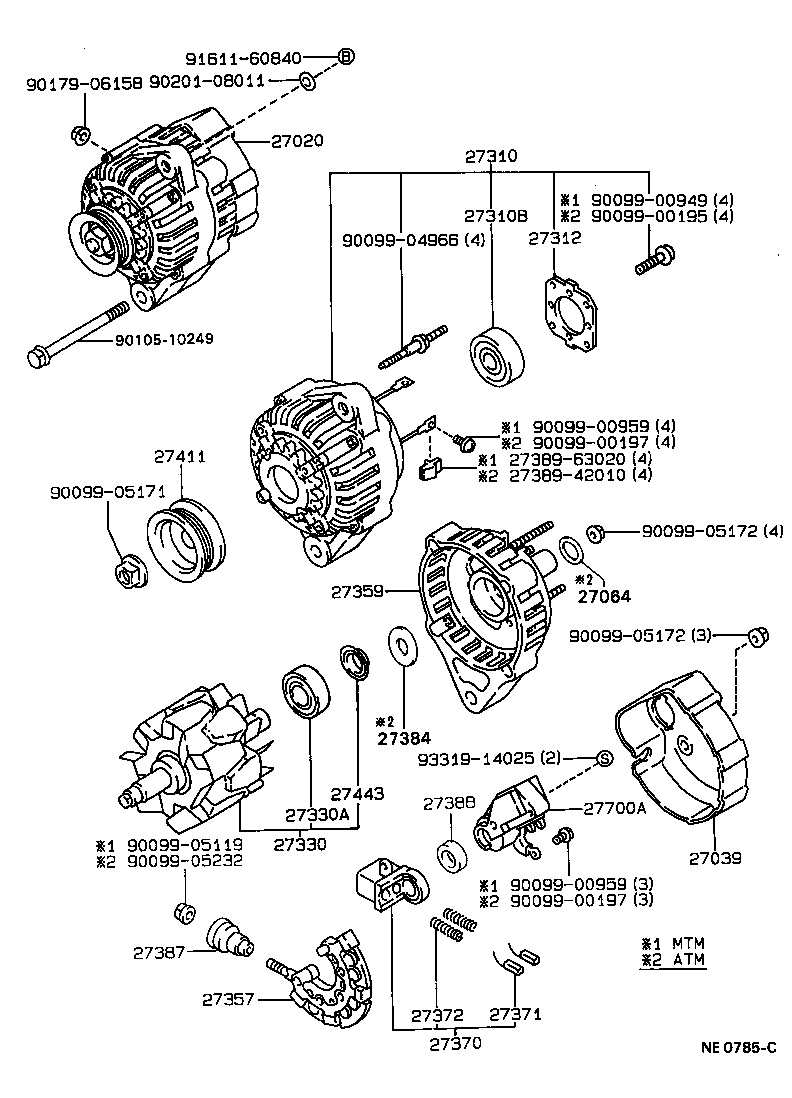

diagram 27020 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27384 27387 27388 2738942010 2738963020 27411 27443 27700A 9009900195 9009900197 9009900197 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905232 9010510249 9017906158 9020108011 9161160840 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74020

4SFI..ST170..5F

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

4A#,4SFI..AT171,175,ST170..5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70100

4SF#..ST170..5F

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4A#,4SFI..AT171,175,ST170..5F

 1
27312 - PLATE, RETAINER
27312-70200

4A#,4SFI..AT171,175,ST170..5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

4A#,4SFI..AT171,175,ST170..5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3E..ET176..3FC;4AF#,4AGE,5AF#,4SF#..AT17#,ST170

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4A#,4SFI..AT171,175,ST170..5F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43160

4SFI..ST170..5F

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

4AF#,5AF#,4SF#..AT17#,ST170..MTM

 1
27371 - BRUSH, ALTERNATOR
27371-63020

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..MTM

 2
27371-63020

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..3FC,4F,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..3FC,4F,5F

 2
27372-72100

4A#,5AF,3E,4SFI..AT17#,ET176,ST170..MTM

 2
27387 - INSULATOR, TERMINAL
27387-70170

3E..ET176..3FC;4AF#,4AGE,5AF#,4SFI..AT17#,ST170..MTM

 1
27411 - PULLEY, ALTERNATOR
27411-16180

4AF#,4AGE,5AFE,4SF#..AT17#,ST170..MTM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

5AF..AT170..4FC;4A#,3E,4SFI..AT171,175,ET176,ST170..4F,4FC,5F

 1
27700A - REGULATOR ASSY, GENERATOR
27700-16010

4SFI..ST170..5F;4AGE,4SFE..AT171,ST170

 1
Common parts
27389-42010
27389-63020
90099-00195
90099-00197
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90099-05232
90105-10249
90179-06158
90201-08011
91611-60840
93319-14025
