ST170G-CWMXK (1990)

Toyota Carina Ff

Production May 1990 - Nov 1992
Engine 4SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9005- )S,SGEXT,SX

Click highlighted areas on diagram

PUSH & LEVER CONTROL TYPE

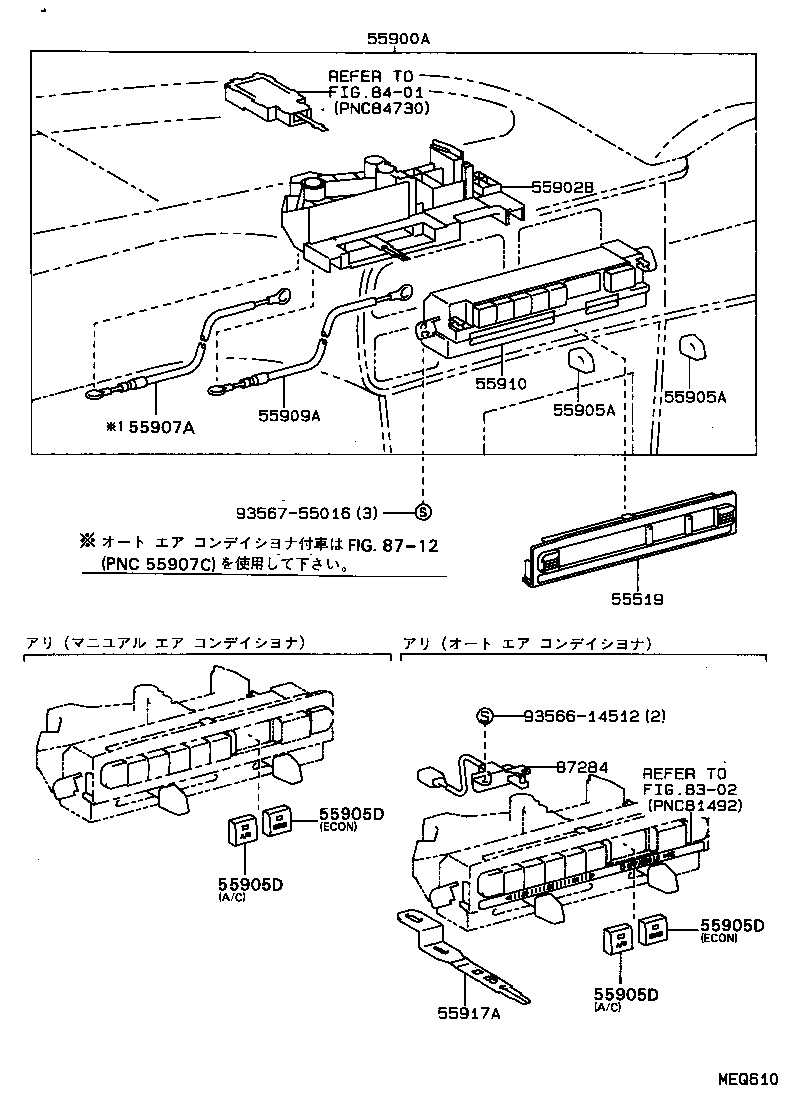

diagram 55519 55900A 55902B 55905A 55905A 55905D 55905D 55905D 55905D 55907A 55909A 55910 55917A 8302 8401 87284 9356614512 9356755016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-20270

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ

 1
55519-20300

AT17#,ST170..S,SGEXT,SX

 1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-20850

AT17#,ST170..S,SGEXT,SX

 1
55900-20600

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-20120

AT17#,ST170..S,SGEXT,SX

 1
55905A - KNOB, HEATER CONTROL
55905-20380

AT17#,ST170..S,SGEXT,SX

 2
55905A - KNOB, HEATER CONTROL
55905-20380

AT17#,ST170..S,SGEXT,SX

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20390

AT171,ST170..S,SX

A/C

 1
55905-20290

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ECON

 1
55905-20400

AT171,ST170..S,SX

ECON

 1
55905-20400

AT170,171,ST170..S,SGEXT,SX

ECON

 1
55905-20280

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,A/C

 1
55905-20300

AT171,ST170..(S,SX)..(EFI,EFIS)

ｵｰﾄ

 1
55905-20390

AT170,171,ST170..S,SGEXT,SX

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20390

AT171,ST170..S,SX

A/C

 1
55905-20290

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ECON

 1
55905-20400

AT171,ST170..S,SX

ECON

 1
55905-20400

AT170,171,ST170..S,SGEXT,SX

ECON

 1
55905-20280

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,A/C

 1
55905-20300

AT171,ST170..(S,SX)..(EFI,EFIS)

ｵｰﾄ

 1
55905-20390

AT170,171,ST170..S,SGEXT,SX

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20390

AT171,ST170..S,SX

A/C

 1
55905-20290

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ECON

 1
55905-20400

AT171,ST170..S,SX

ECON

 1
55905-20400

AT170,171,ST170..S,SGEXT,SX

ECON

 1
55905-20280

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,A/C

 1
55905-20300

AT171,ST170..(S,SX)..(EFI,EFIS)

ｵｰﾄ

 1
55905-20390

AT170,171,ST170..S,SGEXT,SX

A/C

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-20390

AT171,ST170..S,SX

A/C

 1
55905-20290

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,ECON

 1
55905-20400

AT171,ST170..S,SX

ECON

 1
55905-20400

AT170,171,ST170..S,SGEXT,SX

ECON

 1
55905-20280

AT171,ST170..(S,SX)..(EFI,EFIS)

S ﾘﾐﾃﾂﾄﾞ OR SX ﾘﾐﾃﾂﾄﾞ,A/C

 1
55905-20300

AT171,ST170..(S,SX)..(EFI,EFIS)

ｵｰﾄ

 1
55905-20390

AT170,171,ST170..S,SGEXT,SX

A/C

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20220

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55907-20270

AT17#,ST170..S,SGEXT,SX

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20090

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55909-20150

AT17#,ST170..S,SGEXT,SX

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20610

AT17#,ST170..S,SGEXT,SX

 1
55910-20540

ST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV

 1
55917A - LEVER, TEMPERATURE DAMPER CONTROL
55917-20130

AT17#,ST170..S,SGEXT,SX

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-20160

AT17#,ST170..S,SGEXT,SX

 1
Common parts
93566-14512
93567-55016
Linked diagrams
8302
8401
