ST170-CEPEM (1988)

Toyota Carina Ff

Production May 1988 - May 1990
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )4SF#

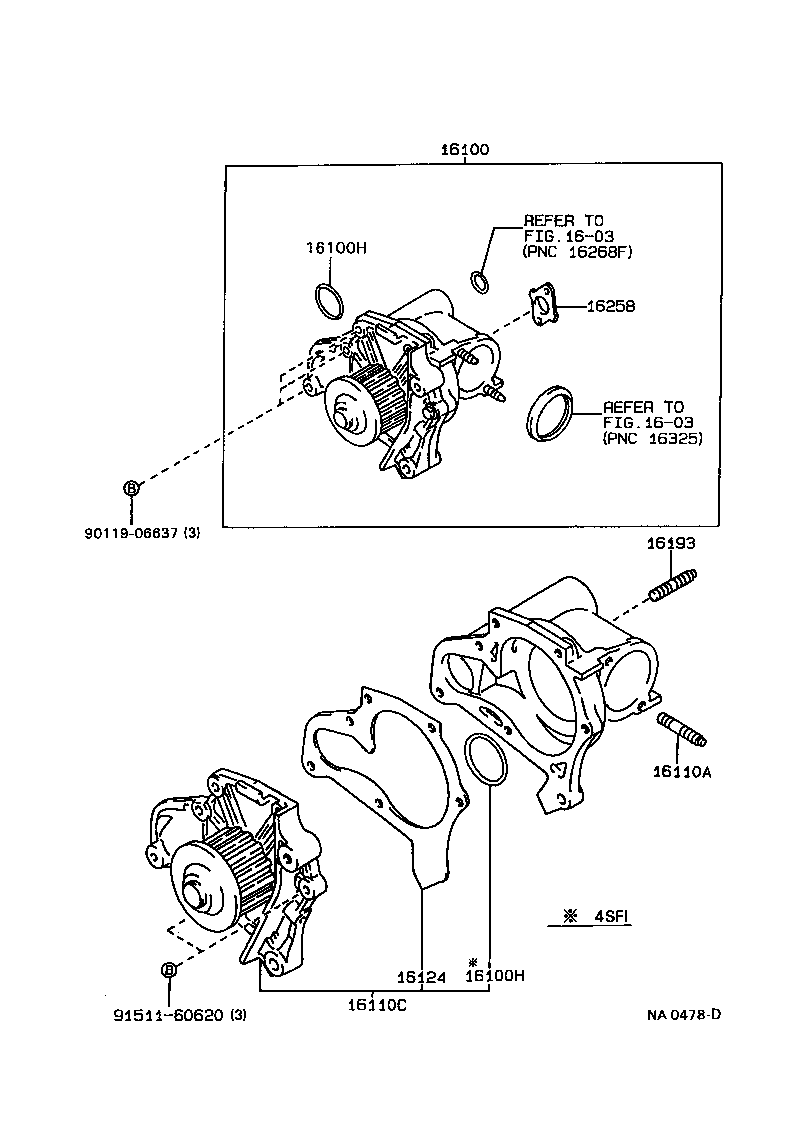

Click highlighted areas on diagram

diagram 1603 1603 16100 16100H 16100H 16110A 16110C 16124 16193 16258 9011906637 9151160620
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79075

4SF#..ST170

 1
16100H - RING, O(FOR WATER PUMP)
96711-24037

4SFI..ST170

 1
16100H - RING, O(FOR WATER PUMP)
96711-24037

4SFI..ST170

 1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-63010

4SF#..ST170

 2
16110C - PUMP ASSY, WATER, W/O COVER
16110-79025

4SF#..ST170

 1
16124 - GASKET, WATER PUMP COVER
16124-74010

4SFI..ST170

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90029-01500

4SF#..ST170

 2
16258 - GASKET(FOR HEATER RETURN)
16258-15011

4SFI..ST170

 1
Common parts
90119-06637
91511-60620
Linked diagrams
1603
