ST170-CEPEK (1990)

Toyota Carina Ff

Production May 1990 - Aug 1992
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )4SFE

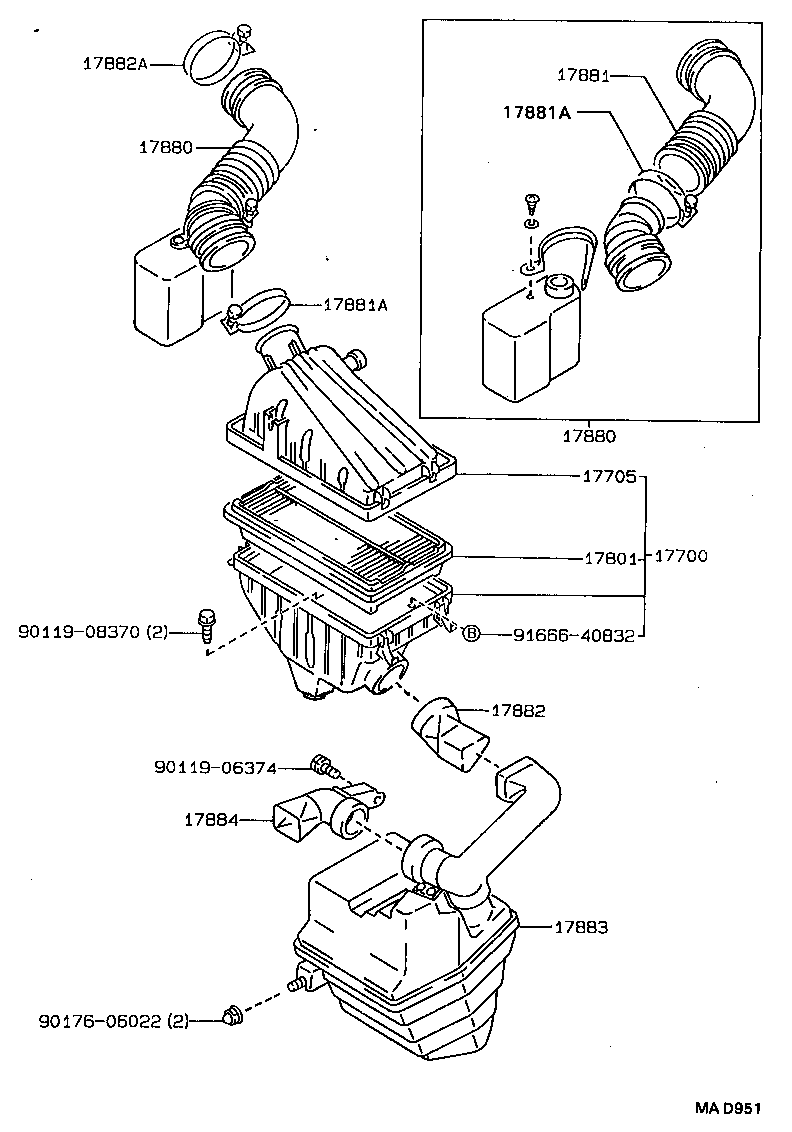

Click highlighted areas on diagram

diagram 17700 17705 17801 17880 17880 17881 17881A 17881A 17882 17882A 17883 17884 9011906374 9011908370 9017606022 9166640832
Part # Description Qty Price
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

4SF#..ST170

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74080

4SF#..ST170

NO.1

 1
17884 - HOSE, AIR CLEANER, NO.4
17884-74030

4SF#..ST170

 1
Common parts
90119-06374
90119-08370
90176-06022
91666-40832
