ST170-CEMMM (1988)
Toyota Carina Ff

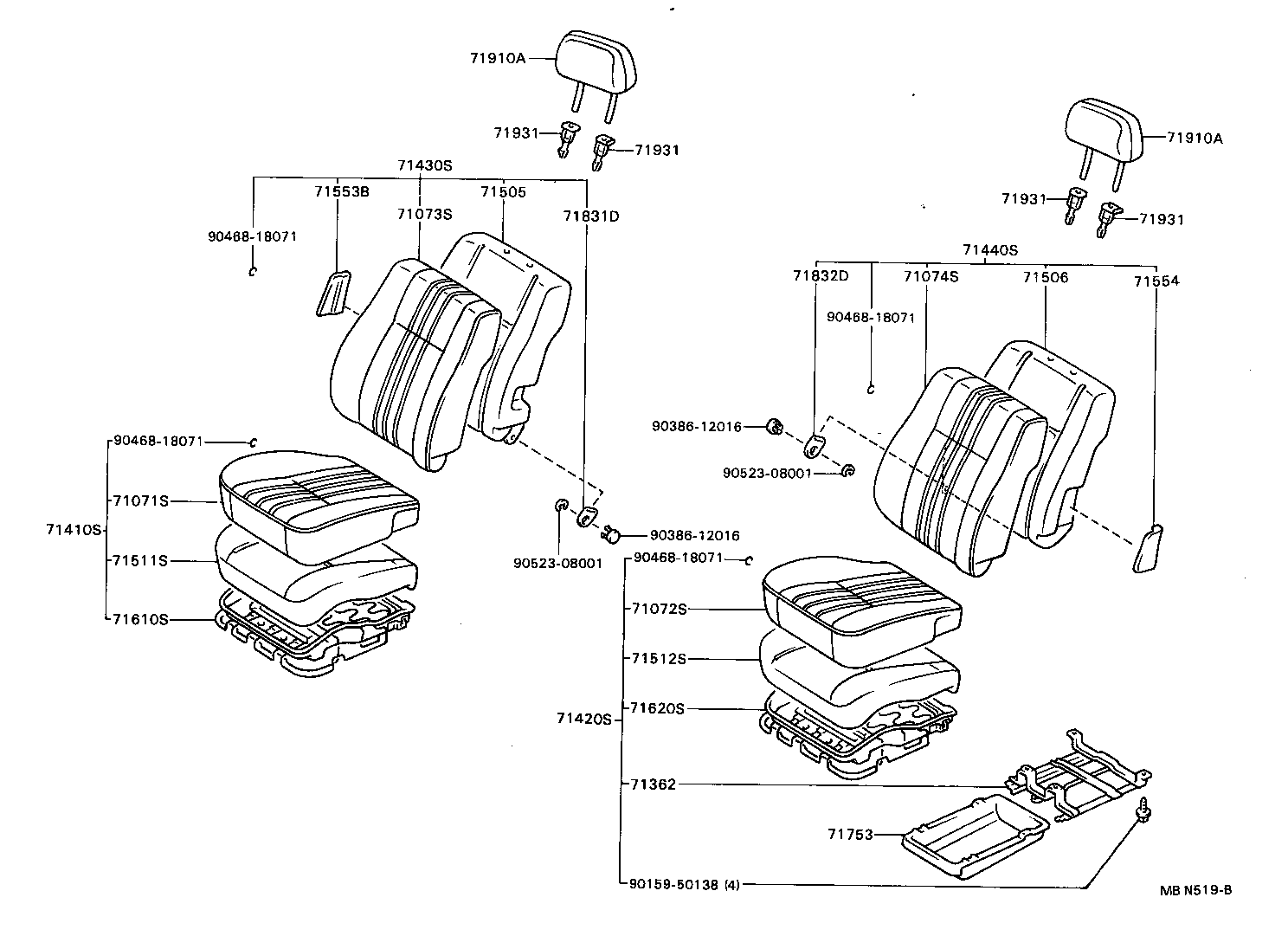

ILLUST NO. 1 OF 2(8805- )DX,SG,SGEXT,STD,SV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D34003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71071-2D34006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71071-2D34003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71071-2D34004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71071-2D32003 |
ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71071-2D32006 |
ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71071-2D34004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71071-2D33006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71071-2D32004 |
ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71071-2D34006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71071-2D33003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71071-2D37006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71071-2D82006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71071-2D83006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,BROWN,TRIM4# |
1 | ||
| 71071-2D82004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71071-2D83003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71071-2D82003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71071-2D37003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B74003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71072-2B74006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71072-2B74006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71072-2B72003 |
ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71072-2B74004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71072-2B74004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71072-2B72004 |
ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71072-2B73003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71072-2B72006 |
ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71072-2B73006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71072-2B74003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71072-2D38003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71072-2D38006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71072-2D38004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71072-2B52003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072-2B52006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71072-2B55006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71072-2B55003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D26006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71073-2D26004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71073-2D26003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71073-2D26006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71073-2D26003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71073-2D26004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71073-2D24004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71073-2D24003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71073-2D25003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71073-2D14003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2D24006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71073-2D16003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2D14006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71073-2D25006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71073-2D16006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71073-2D79004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71073-2D79003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71073-2D79006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B85003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71074-2B85006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074-2B85003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71074-2B85004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71074-2B83004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71074-2B85004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71074-2B85006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71074-2B84003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71074-2B83006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71074-2B84006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71074-2B71006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71074-2B83003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71074-2B73006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71074-2D49004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71074-2D49006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074-2D49003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71074-2B71003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71074-2B73003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT170,171,CT170,ST170..GLIM,SE,SGEXT |
1 | ||
| 71362-20080 |
ST170..SE SE ｴｸｽﾄﾗ |
1 | ||
| 71362-20080 |
AT171,ST170..GLIM,SGEXT |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D50004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71410-2D50003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71410-2D48003 |
ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71410-2D50006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71410-2D50006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71410-2D48006 |
ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71410-2D50004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71410-2D50003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71410-2D48004 |
ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71410-2D49006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71410-2D49003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71410-2G46006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71410-2D61006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71410-2G47003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71410-2D61003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71410-2G46004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71410-2G47006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71410-2G46003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B87004 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D14006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71420-2D14004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71420-2D14004 |
ST170..SE ***,SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71420-2D14006 |
ST170..SE ***,SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71420-2D14003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420-2B87006 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2B85003 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2087006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2D14003 |
ST170..SE ***,SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71420-2B85004 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2B87003 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B85006 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2087003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2B86003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71420-2D15003 |
ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71420-2D15004 |
ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71420-2D15006 |
ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71420-2B86006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71420-2D88004 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D88006 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2D89006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71420-2D89004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71420-2D88003 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2D34003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D21006 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2G01006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2087006 |
AT170,CT170,ST170..SG,SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2D34006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2G01003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D21003 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D89003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420-2087003 |
AT170,CT170,ST170..SG,SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2D51006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71430-2D51003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71430-2D51004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71430-2D51006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71430-2D51003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71430-2D50003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71430-2D49003 |
AT175,ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71430-2D50006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71430-2D49006 |
AT175,ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71430-2D49004 |
AT175,ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71430-2D40006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71430-2D41006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71430-2D51004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71430-2G37004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71430-2D41003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71430-2G37006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71430-2G37003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71430-2D40003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2D25004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71440-2D25003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71440-2D25004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71440-2D25003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71440-2D25006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71440-2D25006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71440-2D23004 |
AT175,ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71440-2D24003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71440-2D23006 |
AT175,ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71440-2D24006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71440-2D23003 |
AT175,ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71440-2D15006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71440-2D15003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440-2D07006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,BROWN,TRIM4# |
1 | ||
| 71440-2G01003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71440-2D07003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440-2G01006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71440-2G01004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20100 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71505-20100 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71505-20100 |
AT170,CT170,ST170..SE |
1 | ||
| 71505-20060 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71505-20100 |
AT170,CT170,ST170..SE |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20090 |
AT170,CT170,ST170..SE |
1 | ||
| 71506-20090 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71506-20040 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71506-20090 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71506-20090 |
AT170,CT170,ST170..SE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20560 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71511-20550 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71511-20540 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71511-20560 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20560 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20540 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20550 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71511-20560 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20150 |
ET176..STD;AT170,175,CT170,ST170..DX,SG,SGEXT,SV |
1 | ||
| 71553-20150 |
ST170..SE SE ｴｸｽﾄﾗ |
1 | ||
| 71553-20150 |
ET176..STD;AT170,175,CT170,ST170..DX,SE,SG,SGEXT,SV |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20130 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71554-20130 |
AT170,175,CT17#,ET176,ST170..DX,SE,SG,SGEXT,STD,SV |
1 | ||
| 71554-20130 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 71610-20430 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71610-20430 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SG,SGEXT,SX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
AT170,171,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71620-20230 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71620-20230 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20050 |
AT170,171,CT170,ST170..GLIM,SE,SGEXT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71831-12010 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 71831-12010 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B18003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
2 | ||
| 71910-2B18003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B18004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B18006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
2 | ||
| 71910-2B18004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
2 | ||
| 71910-2B17003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
2 | ||
| 71910-2B17006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
2 | ||
| 71910-2B18006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910-2B20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
2 | ||
| 71910-2B17004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
2 | ||
| 71910-2B20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
2 | ||
| 71910-2B44003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B12006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B44004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B12003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B45006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B45003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B44006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B18003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
2 | ||
| 71910-2B18003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B18004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B18006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
2 | ||
| 71910-2B18004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
2 | ||
| 71910-2B17003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
2 | ||
| 71910-2B17006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
2 | ||
| 71910-2B18006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910-2B20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
2 | ||
| 71910-2B17004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
2 | ||
| 71910-2B20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
2 | ||
| 71910-2B44003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B12006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B44004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B12003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B45006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B45003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B44006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||

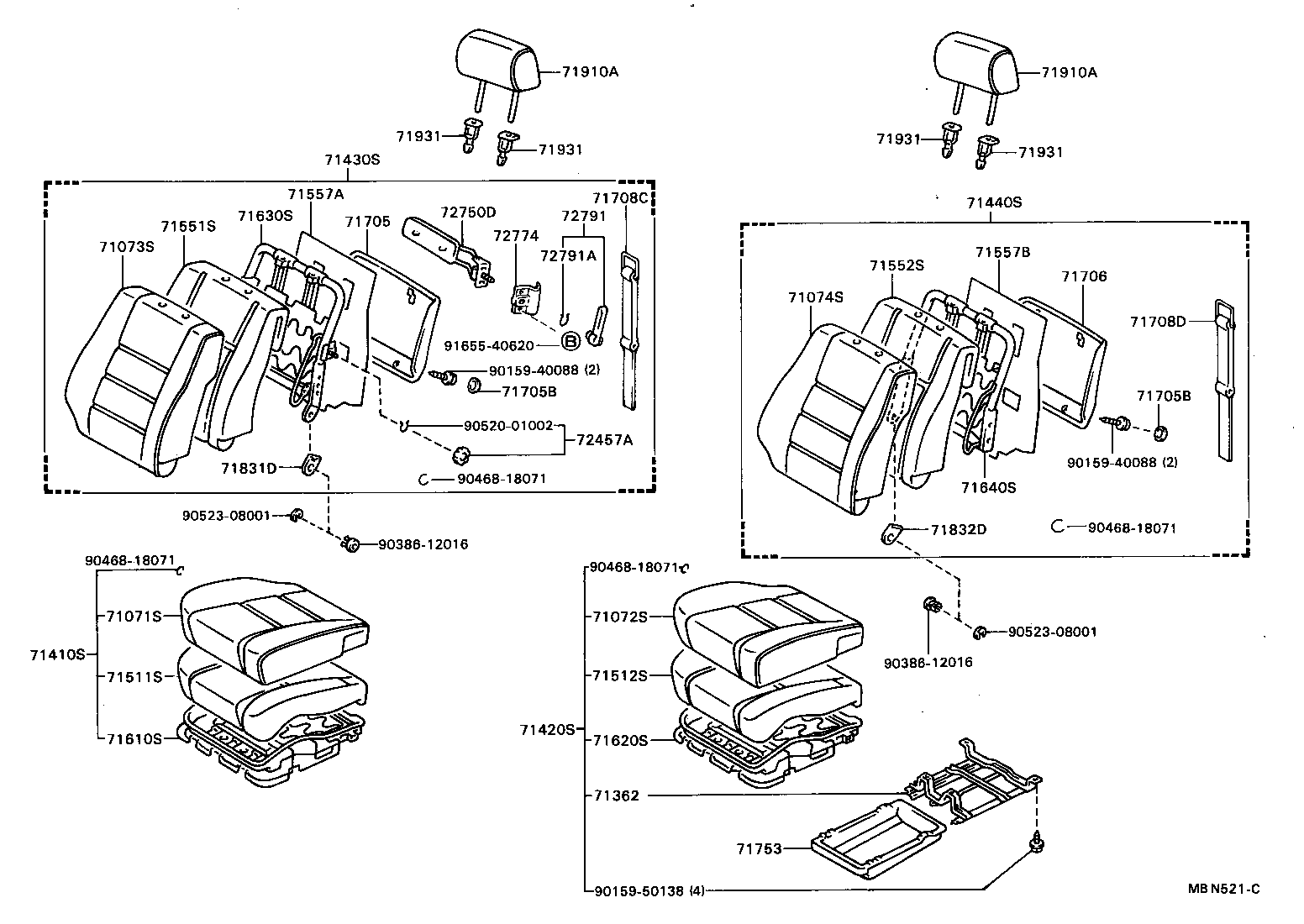

ILLUST NO. 1 OF 2(8805- )SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D34003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71071-2D34006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71071-2D34003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71071-2D34004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71071-2D32003 |
ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71071-2D32006 |
ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71071-2D34004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71071-2D33006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71071-2D32004 |
ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71071-2D34006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71071-2D33003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71071-2D37006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71071-2D82006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71071-2D83006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,BROWN,TRIM4# |
1 | ||
| 71071-2D82004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71071-2D83003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71071-2D82003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71071-2D37003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B74003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71072-2B74006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71072-2B74006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71072-2B72003 |
ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71072-2B74004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71072-2B74004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71072-2B72004 |
ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71072-2B73003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71072-2B72006 |
ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71072-2B73006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71072-2B74003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71072-2D38003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71072-2D38006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71072-2D38004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71072-2B52003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072-2B52006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71072-2B55006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71072-2B55003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D26006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71073-2D26004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71073-2D26003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71073-2D26006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71073-2D26003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71073-2D26004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71073-2D24004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71073-2D24003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71073-2D25003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71073-2D14003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2D24006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71073-2D16003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2D14006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71073-2D25006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71073-2D16006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71073-2D79004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71073-2D79003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71073-2D79006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B85003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71074-2B85006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074-2B85003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71074-2B85004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71074-2B83004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71074-2B85004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71074-2B85006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71074-2B84003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71074-2B83006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71074-2B84006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71074-2B71006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71074-2B83003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71074-2B73006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71074-2D49004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71074-2D49006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074-2D49003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71074-2B71003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71074-2B73003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT170,171,CT170,ST170..GLIM,SE,SGEXT |
1 | ||
| 71362-20080 |
ST170..SE SE ｴｸｽﾄﾗ |
1 | ||
| 71362-20080 |
AT171,ST170..GLIM,SGEXT |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D50004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71410-2D50003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71410-2D48003 |
ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71410-2D50006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71410-2D50006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71410-2D48006 |
ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71410-2D50004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71410-2D50003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71410-2D48004 |
ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71410-2D49006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71410-2D49003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71410-2G46006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71410-2D61006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71410-2G47003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71410-2D61003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71410-2G46004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71410-2G47006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71410-2G46003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||

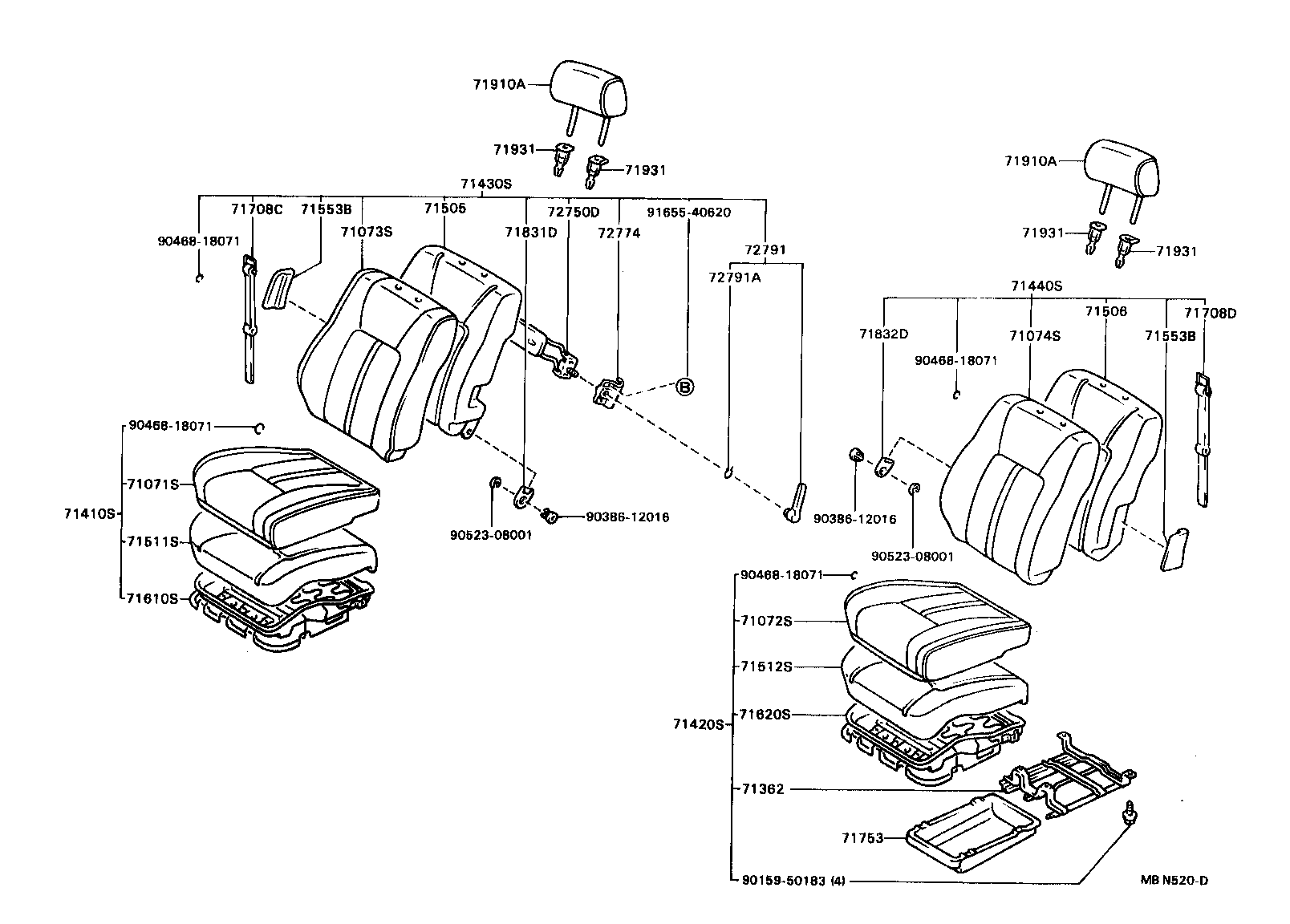

| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B87004 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D14006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71420-2D14004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71420-2D14004 |
ST170..SE ***,SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71420-2D14006 |
ST170..SE ***,SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71420-2D14003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420-2B87006 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2B85003 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2087006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2D14003 |
ST170..SE ***,SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71420-2B85004 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2B87003 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B85006 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2087003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2B86003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71420-2D15003 |
ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71420-2D15004 |
ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71420-2D15006 |
ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71420-2B86006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71420-2D88004 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D88006 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2D89006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71420-2D89004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71420-2D88003 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2D34003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D21006 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2G01006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2087006 |
AT170,CT170,ST170..SG,SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2D34006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2G01003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D21003 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D89003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420-2087003 |
AT170,CT170,ST170..SG,SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2D51006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71430-2D51003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71430-2D51004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71430-2D51006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71430-2D51003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71430-2D50003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71430-2D49003 |
AT175,ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71430-2D50006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71430-2D49006 |
AT175,ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71430-2D49004 |
AT175,ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71430-2D40006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71430-2D41006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71430-2D51004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71430-2G37004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71430-2D41003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71430-2G37006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71430-2G37003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71430-2D40003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2D25004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71440-2D25003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71440-2D25004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71440-2D25003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71440-2D25006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71440-2D25006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71440-2D23004 |
AT175,ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71440-2D24003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71440-2D23006 |
AT175,ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71440-2D24006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71440-2D23003 |
AT175,ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71440-2D15006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71440-2D15003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440-2D07006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,BROWN,TRIM4# |
1 | ||
| 71440-2G01003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71440-2D07003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440-2G01006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71440-2G01004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20100 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71505-20100 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71505-20100 |
AT170,CT170,ST170..SE |
1 | ||
| 71505-20060 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71505-20100 |
AT170,CT170,ST170..SE |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20090 |
AT170,CT170,ST170..SE |
1 | ||
| 71506-20090 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71506-20040 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71506-20090 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71506-20090 |
AT170,CT170,ST170..SE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20560 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71511-20550 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71511-20540 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71511-20560 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20560 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20540 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20550 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71511-20560 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20150 |
ET176..STD;AT170,175,CT170,ST170..DX,SG,SGEXT,SV |
1 | ||
| 71553-20150 |
ST170..SE SE ｴｸｽﾄﾗ |
1 | ||
| 71553-20150 |
ET176..STD;AT170,175,CT170,ST170..DX,SE,SG,SGEXT,SV |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20150 |
ET176..STD;AT170,175,CT170,ST170..DX,SG,SGEXT,SV |
1 | ||
| 71553-20150 |
ST170..SE SE ｴｸｽﾄﾗ |
1 | ||
| 71553-20150 |
ET176..STD;AT170,175,CT170,ST170..DX,SE,SG,SGEXT,SV |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 71610-20430 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71610-20430 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SG,SGEXT,SX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
AT170,171,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71620-20230 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71620-20230 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20050 |
AT170,171,CT170,ST170..GLIM,SE,SGEXT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71831-12010 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 71831-12010 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B18003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
2 | ||
| 71910-2B18003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B18004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B18006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
2 | ||
| 71910-2B18004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
2 | ||
| 71910-2B17003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
2 | ||
| 71910-2B17006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
2 | ||
| 71910-2B18006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910-2B20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
2 | ||
| 71910-2B17004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
2 | ||
| 71910-2B20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
2 | ||
| 71910-2B44003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B12006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B44004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B12003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B45006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B45003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B44006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B18003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
2 | ||
| 71910-2B18003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B18004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B18006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
2 | ||
| 71910-2B18004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
2 | ||
| 71910-2B17003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
2 | ||
| 71910-2B17006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
2 | ||
| 71910-2B18006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910-2B20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
2 | ||
| 71910-2B17004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
2 | ||
| 71910-2B20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
2 | ||
| 71910-2B44003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B12006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B44004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B12003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B45006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B45003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B44006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20090 |
AT170,171,CT170,ST170..GLIM,S,SE,SX |
1 | ||
| 72750-20090 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 72750-20090 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 72750-20090 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003014 |
AT170,171,CT170,ST170..S,SE DARK BLUE,TRIM8# |
1 | ||
| 72791-2003003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003003 |
AT170,171,CT170,ST170..GLIM,S,SE,SX SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003016 |
AT170,171,CT170,ST170..GLIM,S,SE,SX SABLE,TRIM4# |
1 | ||
| 72791-2003003 |
AT171,ST170..GLIM,S,SX SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003016 |
AT170,171,CT170,ST170..S,SE,SX SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
AT171,ST170..GLIM,S,SX SABLE,TRIM4# |
1 | ||
| 72791-2003003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003016 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
AT170,171,CT170,ST170..GLIM,S,SE,SX SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 72791-2003014 |
AT170,171,CT170,ST170..S,SE DARK BLUE,TRIM8# |
1 | ||
| 72791-2003014 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 90520-01274 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 90520-01274 |
AT170,171,CT170,ST170..GLIM,S,SE,SX |
1 | ||
| 90520-01274 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| Common parts | ||||
| 90159-50183 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||
ILLUST NO. 1 OF 2(8805- )GLIM,S,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D34003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71071-2D34006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71071-2D34003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71071-2D34004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71071-2D32003 |
ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71071-2D32006 |
ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71071-2D34004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71071-2D33006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71071-2D32004 |
ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71071-2D34006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71071-2D33003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71071-2D37006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71071-2D82006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71071-2D83006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,BROWN,TRIM4# |
1 | ||
| 71071-2D82004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71071-2D83003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71071-2D82003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71071-2D37003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B74003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71072-2B74006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71072-2B74006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71072-2B72003 |
ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71072-2B74004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71072-2B74004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71072-2B72004 |
ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71072-2B73003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71072-2B72006 |
ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71072-2B73006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71072-2B74003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71072-2D38003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71072-2D38006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71072-2D38004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71072-2B52003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71072-2B52006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71072-2B55006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71072-2B55003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D26006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71073-2D26004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71073-2D26003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71073-2D26006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71073-2D26003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71073-2D26004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71073-2D24004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71073-2D24003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71073-2D25003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71073-2D14003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2D24006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71073-2D16003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71073-2D14006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71073-2D25006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71073-2D16006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71073-2D79004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71073-2D79003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71073-2D79006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B85003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71074-2B85006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074-2B85003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71074-2B85004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71074-2B83004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
1 | ||
| 71074-2B85004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71074-2B85006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71074-2B84003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 71074-2B83006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
1 | ||
| 71074-2B84006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 71074-2B71006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71074-2B83003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
1 | ||
| 71074-2B73006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71074-2D49004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 71074-2D49006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 71074-2D49003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 71074-2B71003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71074-2B73003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT170,171,CT170,ST170..GLIM,SE,SGEXT |
1 | ||
| 71362-20080 |
ST170..SE SE ｴｸｽﾄﾗ |
1 | ||
| 71362-20080 |
AT171,ST170..GLIM,SGEXT |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D50004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71410-2D50003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71410-2D48003 |
ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71410-2D50006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71410-2D50006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71410-2D48006 |
ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71410-2D50004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71410-2D50003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71410-2D48004 |
ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71410-2D49006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71410-2D49003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71410-2G46006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71410-2D61006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71410-2G47003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71410-2D61003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71410-2G46004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71410-2G47006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71410-2G46003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B87004 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D14006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71420-2D14004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71420-2D14004 |
ST170..SE ***,SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71420-2D14006 |
ST170..SE ***,SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71420-2D14003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420-2B87006 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2B85003 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2087006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2D14003 |
ST170..SE ***,SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71420-2B85004 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2B87003 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B85006 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2087003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2B86003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71420-2D15003 |
ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71420-2D15004 |
ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71420-2D15006 |
ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71420-2B86006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71420-2D88004 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D88006 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2D89006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71420-2D89004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71420-2D88003 |
AT170,CT170,ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2D34003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D21006 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2G01006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2087006 |
AT170,CT170,ST170..SG,SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2D34006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71420-2G01003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D21003 |
ST170..SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71420-2D89003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71420-2087003 |
AT170,CT170,ST170..SG,SGEXT ***,ｶﾝﾚｲﾁ ｼﾖｳ & ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2D51006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71430-2D51003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71430-2D51004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71430-2D51006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71430-2D51003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71430-2D50003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71430-2D49003 |
AT175,ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71430-2D50006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71430-2D49006 |
AT175,ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71430-2D49004 |
AT175,ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71430-2D40006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71430-2D41006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71430-2D51004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71430-2G37004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71430-2D41003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71430-2G37006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71430-2G37003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71430-2D40003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2D25004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71440-2D25003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71440-2D25004 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
1 | ||
| 71440-2D25003 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
1 | ||
| 71440-2D25006 |
ST170..SE ***,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71440-2D25006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71440-2D23004 |
AT175,ST170..SGEXT ***,BLUE,TRIM8# |
1 | ||
| 71440-2D24003 |
AT171,ST170..S,SX ***,GRAY,TRIM1# |
1 | ||
| 71440-2D23006 |
AT175,ST170..SGEXT ***,SABLE,TRIM4# |
1 | ||
| 71440-2D24006 |
AT171,ST170..S,SX ***,SABLE,TRIM4# |
1 | ||
| 71440-2D23003 |
AT175,ST170..SGEXT ***,GRAY,TRIM1# |
1 | ||
| 71440-2D15006 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71440-2D15003 |
ST170..SGEXT ***,ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440-2D07006 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,BROWN,TRIM4# |
1 | ||
| 71440-2G01003 |
AT170,CT170,ST170..SE ***,GRAY,TRIM1# |
1 | ||
| 71440-2D07003 |
AT170,CT170,ST170..SG,SGEXT ***,ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
1 | ||
| 71440-2G01006 |
AT170,CT170,ST170..SE ***,SABLE,TRIM4# |
1 | ||
| 71440-2G01004 |
AT170,CT170,ST170..SE ***,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20560 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71511-20550 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71511-20540 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71511-20560 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20560 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20540 |
AT170,175,CT17#,ET176,ST170..DX,SG,SGEXT,STD,SV |
1 | ||
| 71511-20560 |
AT170,CT170,ST170..SE |
1 | ||
| 71511-20550 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71511-20560 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20450 |
AT171,ST170..S,SX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-20190 |
AT171,ST170..S,SX |
1 | ||
| 71557A - CLOTH, FRONT SEAT BACK UNDER, RH | ||||
| 71557-20140 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71557B - CLOTH, FRONT SEAT BACK UNDER, LH | ||||
| 71557-20140 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 71610-20430 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71610-20430 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SG,SGEXT,SX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
AT170,171,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71620-20230 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71620-20230 |
AT170,171,CT17#,ET176,ST170 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20600 |
AT171,ST170..S,SX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-20400 |
AT171,ST170..S,SX |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20050 |
AT170,171,CT170,ST170..GLIM,SE,SGEXT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71831-12010 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 71831-12010 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B18003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
2 | ||
| 71910-2B18003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B18004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B18006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
2 | ||
| 71910-2B18004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
2 | ||
| 71910-2B17003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
2 | ||
| 71910-2B17006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
2 | ||
| 71910-2B18006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910-2B20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
2 | ||
| 71910-2B17004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
2 | ||
| 71910-2B20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
2 | ||
| 71910-2B44003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B12006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B44004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B12003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B45006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B45003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B44006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B18003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,GRAY,TRIM1# |
2 | ||
| 71910-2B18003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B18004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B18006 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
2 | ||
| 71910-2B18004 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,BLUE,TRIM8# |
2 | ||
| 71910-2B17003 |
AT175,ST170..SGEXT GRAY,TRIM1# |
2 | ||
| 71910-2B17006 |
AT175,ST170..SGEXT SABLE,TRIM4# |
2 | ||
| 71910-2B18006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71910-2B20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
2 | ||
| 71910-2B17004 |
AT175,ST170..SGEXT BLUE,TRIM8# |
2 | ||
| 71910-2B20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
2 | ||
| 71910-2B44003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
2 | ||
| 71910-2B12006 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B44004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
2 | ||
| 71910-2B12003 |
AT170,CT170,ST170..SG,SGEXT ﾏｲ ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B45006 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
2 | ||
| 71910-2B45003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,GRAY,TRIM1# |
2 | ||
| 71910-2B44006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AT170,CT170,ST170..SE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205006 |
AT170,CT170,ST170..SE ﾛｯｸ付,SABLE,TRIM4# |
1 | ||
| 71931-1201004 |
AT170,CT170,ST170..SE ﾛｯｸ無,DARK BLUE,TRIM8# |
1 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AT170,CT170,ST170..SE ﾛｯｸ付,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
AT170,CT170,ST170..SE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT170,CT170,ST170..SE ﾛｯｸ無,SABLE,TRIM4# |
1 | ||
| 71930-1205003 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170..DX,GLIM,S,SG,SGEXT,STD,SV,SX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201003 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-1201004 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
ST170..SE ﾛｯｸ付,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71931-1201006 |
ST170..SE ﾛｯｸ無,ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 71930-1205006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT17#,CT17#,ET176,ST170 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403059 |
AT171,ST170..GLIM,S,SX SABLE,TRIM4# |
1 | ||
| 72457-1403023 |
AT171,ST170..GLIM,S,SX GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20090 |
AT170,171,CT170,ST170..GLIM,S,SE,SX |
1 | ||
| 72750-20090 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| 72750-20090 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 72750-20090 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003014 |
AT170,171,CT170,ST170..S,SE DARK BLUE,TRIM8# |
1 | ||
| 72791-2003003 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003003 |
AT170,171,CT170,ST170..GLIM,S,SE,SX SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003016 |
AT170,171,CT170,ST170..GLIM,S,SE,SX SABLE,TRIM4# |
1 | ||
| 72791-2003003 |
AT171,ST170..GLIM,S,SX SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003016 |
AT170,171,CT170,ST170..S,SE,SX SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
AT171,ST170..GLIM,S,SX SABLE,TRIM4# |
1 | ||
| 72791-2003003 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003016 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ,SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
AT170,171,CT170,ST170..GLIM,S,SE,SX SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,SABLE,TRIM4# |
1 | ||
| 72791-2003014 |
AT170,171,CT170,ST170..S,SE DARK BLUE,TRIM8# |
1 | ||
| 72791-2003014 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ,DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
ST170..SGEXT ｽ-ﾊﾟ- ﾛ-ﾄﾞ |
1 | ||
| 90520-01274 |
AT171,ST170..GLIM,S,SX |
1 | ||
| 90520-01274 |
AT170,171,CT170,ST170..GLIM,S,SE,SX |
1 | ||
| 90520-01274 |
ST170..SE ｶﾝﾚｲﾁ ｼﾖｳ OR SE ｴｸｽﾄﾗ |
1 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90159-50138 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||
ILLUST NO. 2 OF 2(8805- )AT170,171,CT17#,ET176,ST170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 71811-2016004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71811-2016003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 71811-2016004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71811-2016003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 71812-2011006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 71812-2011004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2005004 |
AT170,171,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71861-2005006 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 71861-2005003 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2005006 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 71862-2005004 |
AT170,171,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71862-2005003 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2002004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71873-2002003 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX GRAY,TRIM1# |
1 | ||
| 71873-2002006 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2001006 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 71874-2001004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 71874-2001003 |
AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20220 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20220 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-20280 |
AT170,171,CT170,ST170 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20260 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20260 |
AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT17#,CT17#,ET176,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20230 |
AT170,171,CT170,ST170 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20210 |
AT170,171,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2005004 |
AT17#,CT170,ST170..S,SE,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 72457-2005006 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 72457-2005003 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SX GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209016 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 72525-1209034 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209016 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 72525-1209034 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203034 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 72526-1203016 |
CT176,ET176..DX,SG;AT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 72526-1203003 |
AT17#,CT17#,ET176,ST170 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10290 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
