ST170-CEMEM (1988)
Toyota Carina Ff

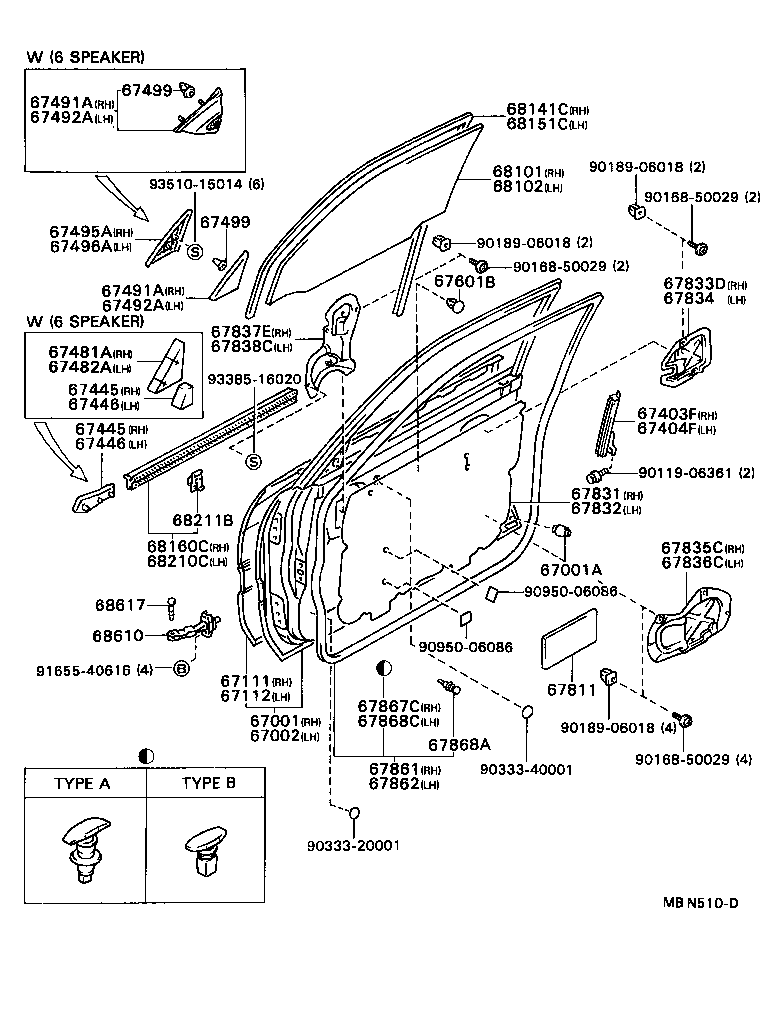

ILLUST NO. 1 OF 2(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20800 |
CT170;AT17#,ST170..GLIM,S,SE,SGEXT,SX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 67001-20810 |
ST170..SGEXT..CI;AT171,CT170,ST170..S,SG,SX |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09064 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20760 |
CT170;AT17#,ST170..GLIM,S,SE,SGEXT,SX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾄﾞｱ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 67002-20770 |
ST170..SGEXT..CI;AT171,CT170,ST170..S,SG,SX |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20280 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20290 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-20040 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-20040 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20180 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20180 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20200 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20200 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20080 |
ST170..SGEXT;AT170..SG..EFI;ST170..(SE,SX)..CI;AT170..DX,SE,SGEXT,SV;AT171,175,CT17#,ET176..GLIM,SE,SG,SGEXT,SV |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-20050 |
ST170..SGEXT;AT170..SG..EFI;ST170..(SE,SX)..CI;AT170..DX,SE,SGEXT,SV;AT171,175,CT17#,ET176..GLIM,SE,SG,SGEXT,SV |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 67499-30020 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 67499-30020 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
CT176..SG;CT176..5F..DX;AT17#,CT170,ET176,ST170 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20340 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20200 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20310 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20310 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20060 |
AT17#,CT170,ST170..SED ﾀｲﾌﾟ A |
18 | ||
| 67868-30040 |
AT17#,CT170,ST170..SED ﾀｲﾌﾟ B |
1 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-20020 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20060 |
AT17#,CT17#,ET176,ST170 |
19 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20440 |
CT176,ET176..SG;AT17#,CT170,ST170 *TT,厚さ=3.5 |
1 | ||
| 68111-20500 |
AT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68111-20450 |
AT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20360 |
CT176,ET176..SG;AT17#,CT170,ST170 *TT,厚さ=3.5 |
1 | ||
| 68112-20420 |
AT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68112-20370 |
AT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-20180 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-20050 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-89102 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
AT17#,CT17#,ET176,ST170 |
2 | ||
| Common parts | ||||
| 90119-06361 | ||||
| 90168-50029 | ||||
| 90189-06018 | ||||
| 90333-20001 | ||||
| 90333-40001 | ||||
| 90950-06086 | ||||
| 91655-40616 | ||||
| 93385-16020 | ||||
| 93510-15014 | ||||
ILLUST NO. 2 OF 2(8805-9005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D19003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 67610-2D19004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67610-2D20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 67610-2D19006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 67610-2D20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D19003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 67610-2D19004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67610-2D20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 67610-2D19006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 67610-2D20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D19003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 67610-2D19004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67610-2D20003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 67610-2D19006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 67610-2D20006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0150314 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 90950-0150326 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 90950-0150303 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0150314 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
2 | ||
| 90950-0150326 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
2 | ||
| 90950-0150303 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G40006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 67620-2G41003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 67620-2G40003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 67620-2G40004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67620-2G41006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G40006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 67620-2G41003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 67620-2G40003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 67620-2G40004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67620-2G41006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G40006 |
AT170,CT170,ST170..SE SABLE,TRIM4# |
1 | ||
| 67620-2G41003 |
AT171,ST170..S,SX GRAY,TRIM1# |
1 | ||
| 67620-2G40003 |
AT170,CT170,ST170..SE GRAY,TRIM1# |
1 | ||
| 67620-2G40004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67620-2G41006 |
AT171,ST170..S,SX SABLE,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CT176,ET176..SG;AT17#,CT170,ST170 |
9 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2012004 |
AT171,ST170..S,SGEXT BLUE,TRIM8# |
1 | ||
| 67777-2011004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT170,171,CT170,ST170..GLIM,SE SABLE,TRIM4# |
1 | ||
| 67777-2011003 |
AT170,171,CT170,ST170..GLIM,SE GRAY,TRIM1# |
1 | ||
| 67777-2012004 |
AT17#,CT170,ST170..S,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 67777-2012006 |
AT17#,CT17#,ET176,ST170..S,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2012004 |
AT171,ST170..S,SGEXT BLUE,TRIM8# |
1 | ||
| 67777-2011004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT170,171,CT170,ST170..GLIM,SE SABLE,TRIM4# |
1 | ||
| 67777-2011003 |
AT170,171,CT170,ST170..GLIM,SE GRAY,TRIM1# |
1 | ||
| 67777-2012004 |
AT17#,CT170,ST170..S,SG,SGEXT BLUE,TRIM8# |
1 | ||
| 67777-2012006 |
AT17#,CT17#,ET176,ST170..S,SG,SGEXT,SX SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2005003 |
AT170,171,CT170,ST170..GLIM,SE GRAY,TRIM1# |
1 | ||
| 67778-2005004 |
AT170,CT170,ST170..SE BLUE,TRIM8# |
1 | ||
| 67778-2005006 |
AT170,171,CT170,ST170..GLIM,SE SABLE,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-2006036 |
AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX SABLE,TRIM4# |
1 | ||
| 69751-2006003 |
CT176,ET176..SG;AT17#,CT170,ST170 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006044 |
AT17#,CT170,ST170..S,SE,SG,SGEXT DARK BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20270 |
CT176,ET176..SG;AT17#,CT170,ST170 左側 |
1 | ||
| 68170-20360 |
CT176,ET176..SG;AT17#,CT170,ST170 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20270 |
CT176,ET176..SG;AT17#,CT170,ST170 左側 |
1 | ||
| 68170-20360 |
CT176,ET176..SG;AT17#,CT170,ST170 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20270 |
CT176,ET176..SG;AT17#,CT170,ST170 左側 |
1 | ||
| 68170-20360 |
CT176,ET176..SG;AT17#,CT170,ST170 右側 |
1 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90168-40068 | ||||
| 90189-06010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
