Toyota Carina ff ST170 STEERING WHEEL

ST170-CEMEM (1988)

Toyota Carina Ff

Production May 1988 - May 1990

Engine 4SFI

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8805-9005) ; (8903-9005)

Click highlighted areas on diagram

SG ｴｸｽﾄﾗ;ｼﾞﾕﾝ;ﾏｲﾛ-ﾄﾞ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2058006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45100-2058006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45102-2051006	ST170..SE SABLE,TRIM4#	02/1989 - 03/1989	1
45100-2058004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45100-2058003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45102-2051006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	05/1988 - 02/1989	1
45102-2051004	ST170..SE ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),BLUE,TRIM8#	05/1988 - 05/1990	1
45102-2051003	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),GRAY,TRIM1#	05/1988 - 05/1990	1
45102-2051006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	08/1989 - 05/1990	1
45100-2058006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20210	AT17#,CT170,ST170..S,SE,SGEXT,SX	05/1988 - 05/1990	1
45105-20220	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ)	05/1988 - 05/1990	1
45125 - MARK, STEERING WHEEL PAD
45125-20410	AT17#,CT170,ST170..S,SE,SGEXT,SX	05/1988 - 05/1990	1
45130 - BUTTON ASSY, HORN
45130-2061006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45130-2061003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45130-2061006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45130-2061006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45130-2061004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45184-2020006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	05/1988 - 02/1989	1
45180-2007006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45184-2020006	ST170..SE SABLE,TRIM4#	02/1989 - 03/1989	1
45180-2007003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45180-2007004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45184-2020003	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),GRAY,TRIM1#	05/1988 - 05/1990	1
45184-2020004	ST170..SE ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),BLUE,TRIM8#	05/1988 - 05/1990	1
45180-2007006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45180-2007006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45184-2020006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	08/1989 - 05/1990	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AT17#,CT17#,ET176,ST170	05/1988 - 11/1992	1
Common parts
90159-50229

(8805-9005)ST170..SE,SX

Click highlighted areas on diagram

ｵ-ﾄﾄﾞﾗｲﾌﾞ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2058006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45100-2058006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45102-2051006	ST170..SE SABLE,TRIM4#	02/1989 - 03/1989	1
45100-2058004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45100-2058003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45102-2051006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	05/1988 - 02/1989	1
45102-2051004	ST170..SE ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),BLUE,TRIM8#	05/1988 - 05/1990	1
45102-2051003	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),GRAY,TRIM1#	05/1988 - 05/1990	1
45102-2051006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	08/1989 - 05/1990	1
45100-2058006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20210	AT17#,CT170,ST170..S,SE,SGEXT,SX	05/1988 - 05/1990	1
45105-20220	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ)	05/1988 - 05/1990	1
45125 - MARK, STEERING WHEEL PAD
45125-20410	AT17#,CT170,ST170..S,SE,SGEXT,SX	05/1988 - 05/1990	1
45130 - BUTTON ASSY, HORN
45130-2061006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45130-2061003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45130-2061006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45130-2061006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45130-2061004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45184-2020006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	05/1988 - 02/1989	1
45180-2007006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45184-2020006	ST170..SE SABLE,TRIM4#	02/1989 - 03/1989	1
45180-2007003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45180-2007004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45184-2020003	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),GRAY,TRIM1#	05/1988 - 05/1990	1
45184-2020004	ST170..SE ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),BLUE,TRIM8#	05/1988 - 05/1990	1
45180-2007006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45180-2007006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45184-2020006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	08/1989 - 05/1990	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AT17#,CT17#,ET176,ST170	05/1988 - 11/1992	1
Common parts
90159-50229
93510-15014
Linked diagrams
8408

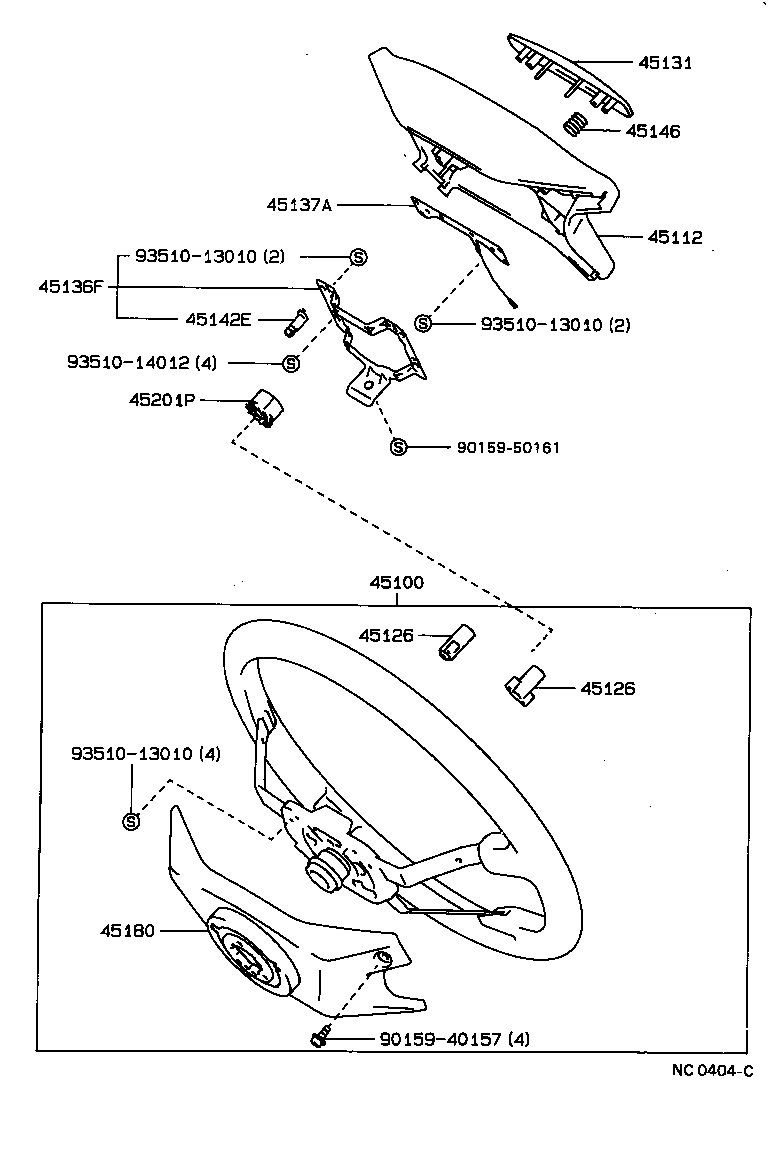

(8805-9005)GLIM ; (8805-9006)S ; (8812-9005)

Click highlighted areas on diagram

S ﾘﾐﾃﾂﾄﾞ; ｽ-ﾊﾟ- ﾛ-ﾄﾞ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-2058006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45100-2058006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45102-2051006	ST170..SE SABLE,TRIM4#	02/1989 - 03/1989	1
45100-2058004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45100-2058003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45102-2051006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	05/1988 - 02/1989	1
45102-2051004	ST170..SE ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),BLUE,TRIM8#	05/1988 - 05/1990	1
45102-2051003	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),GRAY,TRIM1#	05/1988 - 05/1990	1
45102-2051006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	08/1989 - 05/1990	1
45100-2058006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45184-2020006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	05/1988 - 02/1989	1
45180-2007006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	05/1988 - 02/1989	1
45184-2020006	ST170..SE SABLE,TRIM4#	02/1989 - 03/1989	1
45180-2007003	AT17#,CT170,ST170..S,SE,SGEXT,SX GRAY,TRIM1#	05/1988 - 05/1990	1
45180-2007004	AT17#,CT170,ST170..S,SE,SGEXT BLUE,TRIM8#	05/1988 - 05/1990	1
45184-2020003	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),GRAY,TRIM1#	05/1988 - 05/1990	1
45184-2020004	ST170..SE ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),BLUE,TRIM8#	05/1988 - 05/1990	1
45180-2007006	AT171,175,ST170..S,SGEXT,SX SABLE,TRIM4#	02/1989 - 08/1989	1
45180-2007006	AT17#,CT170,ST170..S,SE,SGEXT,SX SABLE,TRIM4#	08/1989 - 05/1990	1
45184-2020006	ST170..SE,SX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ),SABLE,TRIM4#	08/1989 - 05/1990	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AT17#,CT17#,ET176,ST170	05/1988 - 11/1992	1
Common parts
90159-40157
90159-50161
93510-13010
93510-14012

ST170-CEMEM (1988)

(8805-9005) ; (8903-9005)

(8805-9005)ST170..SE,SX

(8805-9005)GLIM ; (8805-9006)S ; (8812-9005)
