ST162-AEPVF (1985)

Toyota Carina Ff

Production Aug 1985 - Apr 1988
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AT160,ST162

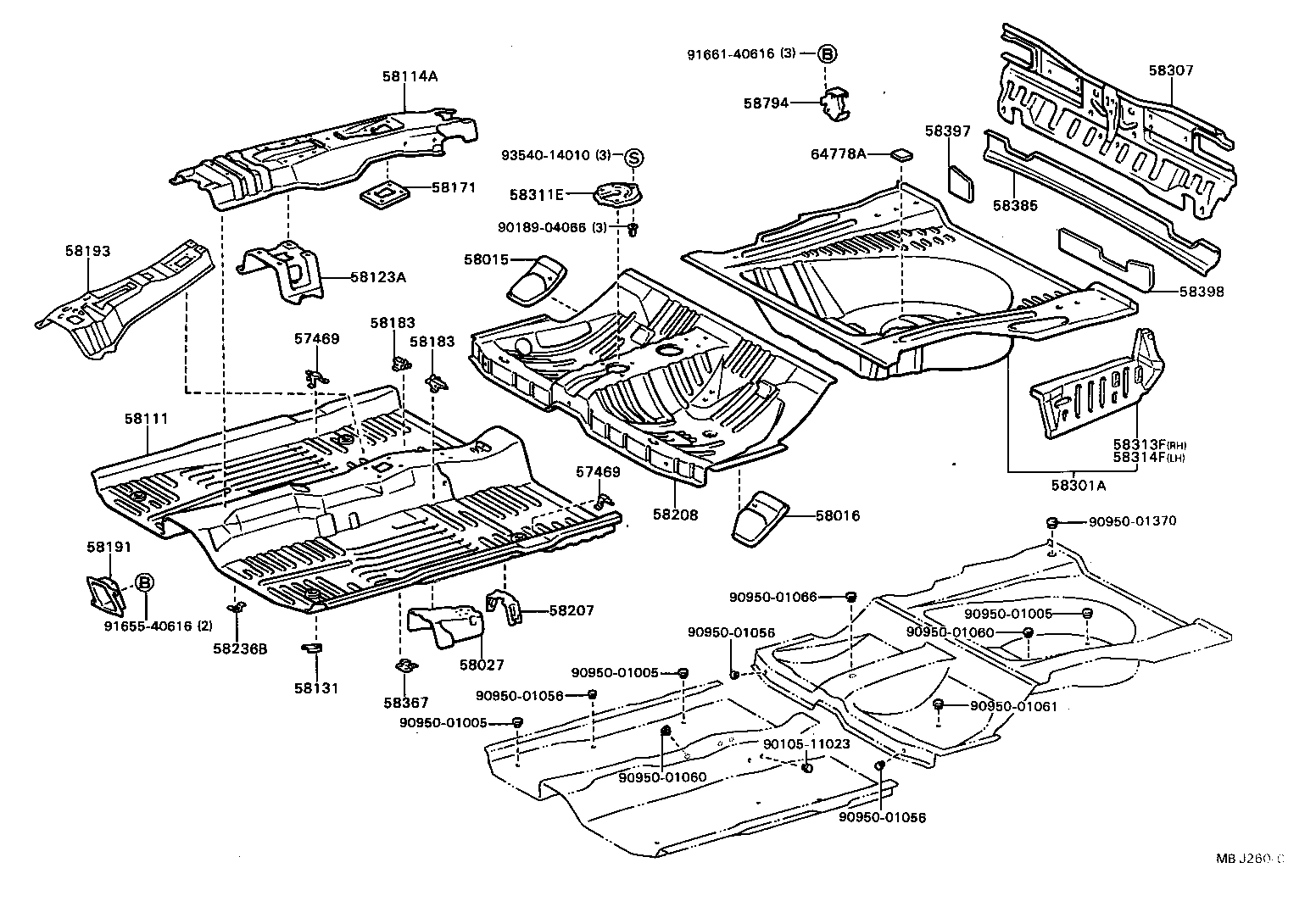

Click highlighted areas on diagram

diagram 57469 57469 58015 58016 58027 58111 58114A 58123A 58131 58171 58183 58183 58191 58193 58207 58208 58236B 58301A 58307 58311E 58313F 58314F 58367 58385 58397 58398 58794 64778A 9010511023 9018904066 9095001005 9095001005 9095001005 9095001056 9095001056 9095001056 9095001060 9095001060 9095001061 9095001066 9095001370 9165540616 9166140616 9354014010
Part # Description Qty Price
57469 - BRACKET, FRONT SEAT, OUTSIDE
57469-20030

AT15#,160,CT150,ST150,162

LH

 1
57468-20030

AT15#,160,CT150,ST150,162

RH

 1
57469 - BRACKET, FRONT SEAT, OUTSIDE
57469-20030

AT15#,160,CT150,ST150,162

LH

 1
57468-20030

AT15#,160,CT150,ST150,162

RH

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-20020

AT160,ST162

 1
58015-20021

AT160,ST162

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58016-20020

AT160,ST162

 1
58016-20021

AT160,ST162

 1
58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58027-20021

AT15#,160,CT150,ST150,162

 1
58111 - PAN, FRONT FLOOR
58111-20061

AT15#,160,CT150,ST150,162

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20011

AT15#,160,CT150,ST150,162

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20010

AT15#,160,CT150,ST150,162

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-20040

AT15#,160,CT150,ST150,162

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20040

AT15#,160,CT150,ST150,162

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-20040

AT15#,160,CT150,ST150,162

LH

 1
58183-20040

AT15#,160,CT150,ST150,162

RH

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-20040

AT15#,160,CT150,ST150,162

LH

 1
58183-20040

AT15#,160,CT150,ST150,162

RH

 1
58191 - FOOTREST, FRONT FLOOR
58191-20010

AT15#,160,CT150,ST150,162

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-20050

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

 1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-20080

AT15#,160,CT150,ST150,162

 1
58208 - PAN, CENTER FLOOR
58211-20190

AT160,ST162

 1
58211-20191

AT160,ST162

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT15#,160,CT150,ST150,162

 5
58301A - PANEL SUB-ASSY, REAR FLOOR
58301-20530

AT160,ST162

W/O SUN ROOF

 1
58301-20540

AT160,ST162

W/SUN ROOF

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20430

AT15#,160,CT150,ST150,162

 1
58307-20540

AT15#,160,CT150,ST150,162

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-20030

AT160,ST162

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-20200

AT160,ST162

W/SUN ROOF

 1
58313-20190

AT160,ST162

 1
58313-20190

AT160,ST162

W/O SUN ROOF

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-20180

AT160,ST162

W/SUN ROOF

 1
58314-20170

AT160,ST162

W/O SUN ROOF

 1
58314-20170

AT160,ST162

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-20030

AT15#,160,CT150,ST150,162

 1
58385 - PANEL, REAR VALANCE
58308-20060

AT15#,160,CT150,ST150,162

 1
58397 - COVER, LOWER BACK, OUTER RH
58397-20020

AT15#,160,CT150,ST150,162

 1
58398 - COVER, LOWER BACK, OUTER LH
58398-20010

AT15#,160,CT150,ST150,162

 1
58794 - CARRIER, JACK
58791-20030

AT15#,160,CT150,ST150,162

 1
64778A - PROTECTOR, SPARE WHEEL
64778-20020

AT15#,160,CT150,ST150,162

 3
Common parts
90105-11023
90189-04066
90950-01005
90950-01056
90950-01060
90950-01061
90950-01066
90950-01370
91655-40616
91661-40616
93540-14010
