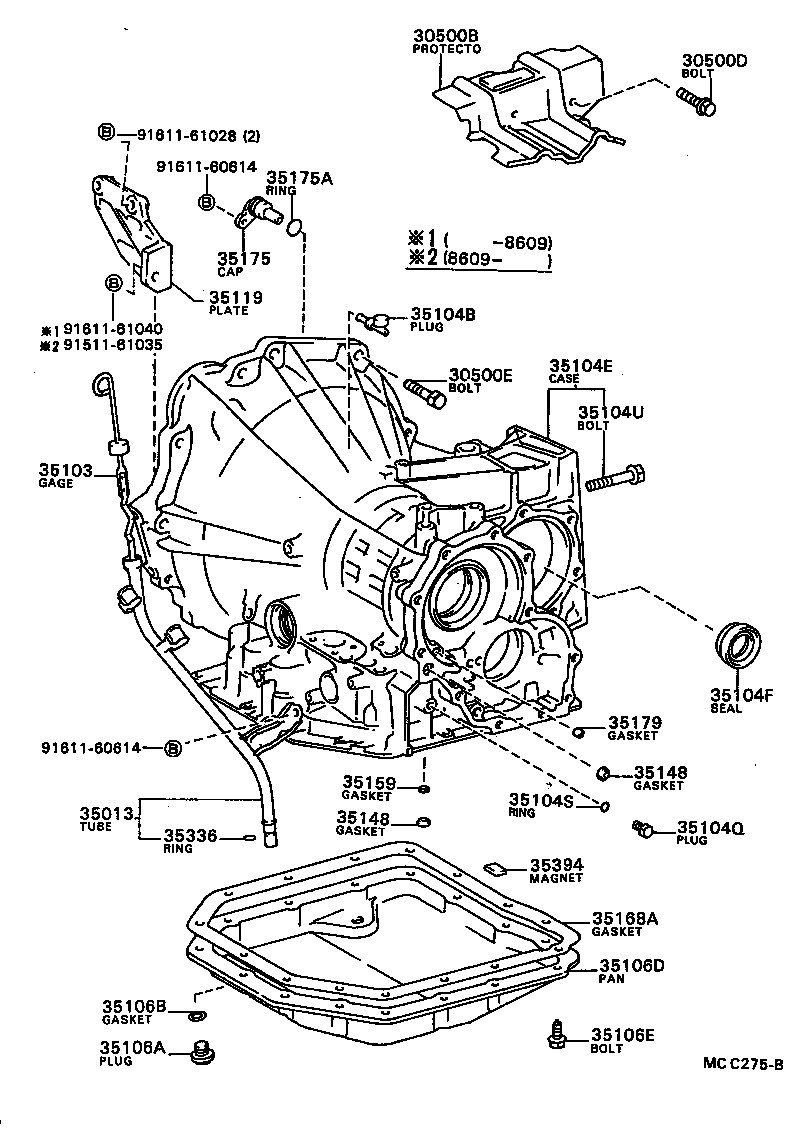

Toyota Carina ff ST162 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
30500B - PROTECTOR, TRANSAXLE CASE
33117-20010	ST162..4FC	08/1985 - 12/1985	1
33117-32022	ST162..4FC	12/1985 - 04/1988	1
30500D - BOLT(FOR TRANSAXLE CASE PROTECTOR)
90105-08040	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	2
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90105-10077	AT15#,160,CT150,ST150,162..ATM 10−1.25PX43−26,10-1.25PX43-26	05/1984 - 04/1988	1
91619-61245	AT15#,160,CT150,ST150,162..ATM 12−1.25PX45−30,12-1.25PX45-30	05/1984 - 04/1988	3
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-20220	ST162..4FC	08/1985 - 10/1985	1
35013-20240	ST162..4FC	10/1985 - 04/1988	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-20120	ST162..4FC	09/1986 - 04/1988	1
35103-32010	ST162..4FC	08/1985 - 09/1986	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03089	ST162..4FC	08/1985 - 04/1988	1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-32031	ST162..4FC	08/1985 - 07/1986	1
35104-32052	ST162..4FC	02/1988 - 04/1988	1
35104-32051	ST162..4FC	03/1987 - 02/1988	1
35104-32050	ST162..4FC	07/1986 - 03/1987	1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-35010	ST162..4FC	08/1985 - 09/1987	1
90311-35019	ST162..4FC	09/1987 - 04/1988	1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	3
35104U - BOLT (FOR TRANSAXLE CASE)
90105-12052	ST162..4FC *12−1.25PX54−24	08/1985 - 04/1988	2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016	ST162..4FC	08/1985 - 04/1988	1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008	ST162..4FC	08/1985 - 04/1988	1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-10020	ST162..4FC	08/1985 - 02/1986	1
35106-10021	ST162..4FC	02/1986 - 04/1988	1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	15
35119 - PLATE, STIFENER, LH (ATM)
33119-20070	ST162..4FC	08/1985 - 09/1986	1
33119-32030	ST162..4FC	09/1986 - 04/1988	1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	2
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	2
35159 - GASKET, BRAKE DRUM
35159-32011	ST162..4FC	10/1985 - 04/1988	1
35159-32010	AT15#,160,CT150,ST150,162..ATM	05/1984 - 10/1985	1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-32010	ST162..4FC	08/1985 - 04/1988	1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010	ST162..4FC	08/1985 - 04/1988	1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-21002	ST162..4FC	08/1985 - 04/1988	1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010	ST162..4FC	08/1985 - 04/1988	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	3
Common parts
91511-61035
91611-60614
91611-61028
91611-61040

ST162-AEPVF (1985)

(8508- )ST162..4FC
