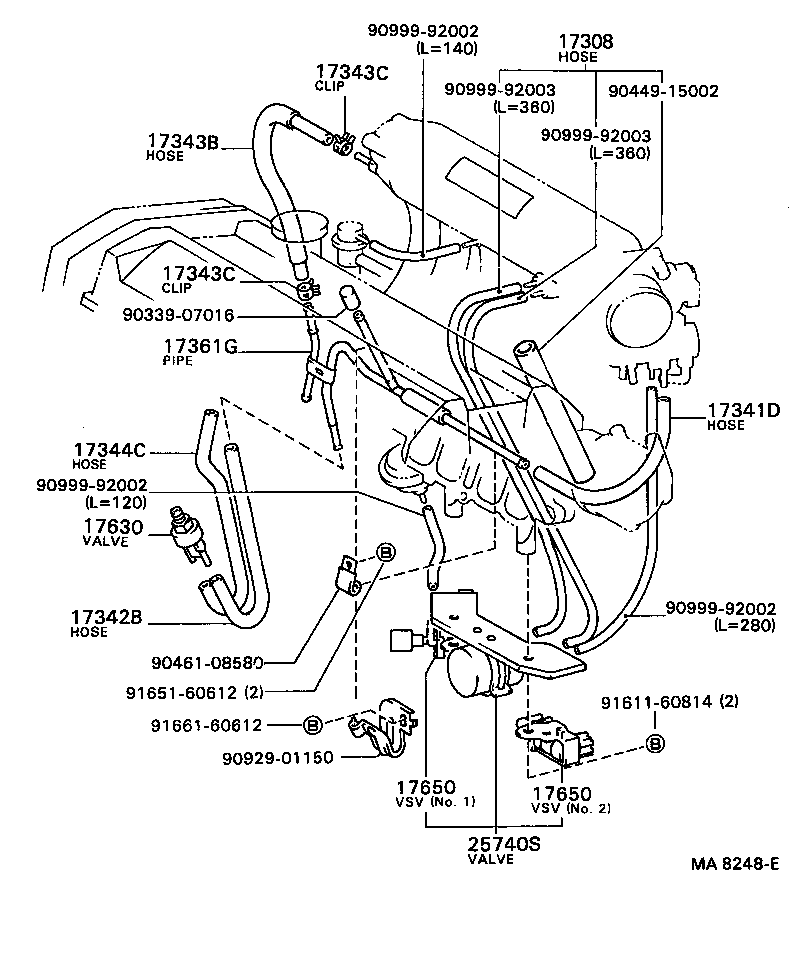

Toyota Carina ff ST162 VACUUM PIPING

Part #	Description	Period	Qty
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74010	3SGELU..ST162 *53	08/1985 - 04/1988	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-88360	3SGELU..ST162 *53	09/1986 - 02/1987	1
17341-88361	3SGELU..ST162 *54	09/1986 - 02/1987	1
17341-88361	3SGELU..ST162	02/1987 - 04/1988	1
17341-88360	3SGELU..ST162	08/1985 - 09/1986	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-88360	3SGELU..ST162	08/1985 - 04/1988	1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-88361	3SGELU..ST162	08/1985 - 04/1988	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	3SGELU..ST162 W/PS	08/1985 - 11/1987	4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	3SGELU..ST162 W/PS	08/1985 - 11/1987	4
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-88360	3SGELU..ST162	08/1985 - 04/1988	1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-88361	3SGELU..ST162	08/1985 - 04/1988	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1SILU,3SGELU..ST150,162	05/1984 - 04/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-88360	3SGELU..ST162 NO.1	08/1985 - 04/1988	1
89570-88365	3SGELU..ST162 NO.2	08/1985 - 04/1988	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-88360	3SGELU..ST162 NO.1	08/1985 - 04/1988	1
89570-88365	3SGELU..ST162 NO.2	08/1985 - 04/1988	1
25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL)
25740-88360	3SGELU..ST162	08/1985 - 04/1988	1
Common parts
90339-07016
90449-15002
90461-08580
90929-01150
90999-92002
90999-92003
91611-60814
91651-60612
91661-60612

ST162-AEPVF (1985)
