ST162-AEPVF (1985)
Toyota Carina Ff
(8508- )3SGELU

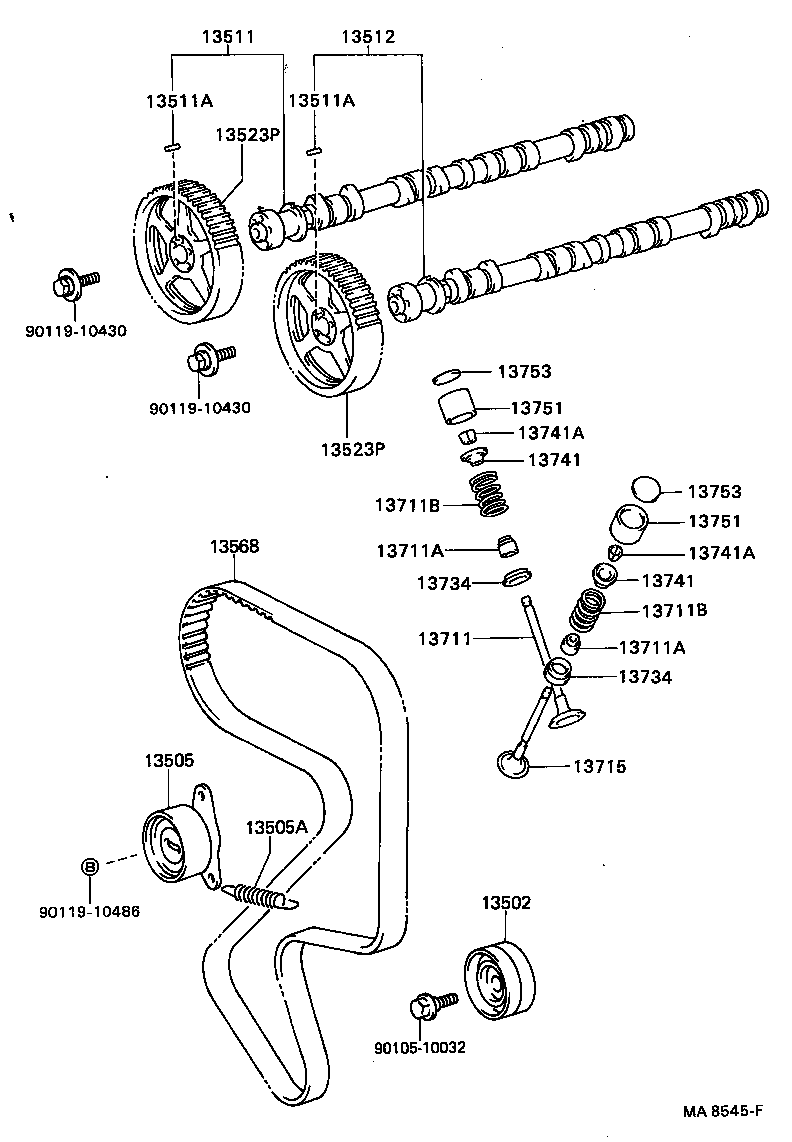

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-88380 |
3SGELU..ST162 *54 |
1 | ||
| 13503-63010 |
3SGELU..ST162 *53 |
1 | ||
| 13503-88360 |
3SGELU..ST162 *54 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-88360 |
3SGELU..ST162 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-18045 |
3SGELU..ST162 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-79015 |
3SGELU..ST162 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
3SGELU..ST162 長さ=13.8,外径=5.0 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
3SGELU..ST162 長さ=13.8,外径=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-79015 |
3SGELU..ST162 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88360 |
3SGELU..ST162 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88360 |
3SGELU..ST162 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-88381 |
3SGELU..ST162 |
1 | ||
| 13568-88361 |
3SGELU..ST162 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-88360 |
3SGELU..ST162 *53 |
8 | ||
| 13711-88361 |
3SGELU..ST162 *54 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
3SGELU..ST162 EXHAUST SIDE |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
3SGELU..ST162 EXHAUST SIDE |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33003 |
3SGELU..ST162 *53 |
16 | ||
| 90501-32016 |
3SGELU..ST162 *54 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33003 |
3SGELU..ST162 *53 |
16 | ||
| 90501-32016 |
3SGELU..ST162 *54 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-88360 |
3SGELU..ST162 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
3SGELU..ST162 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
3SGELU..ST162 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
3SGELU..ST162 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
3SGELU..ST162 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3SGELU..ST162 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3SGELU..ST162 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
3SGELU..ST162 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
3SGELU..ST162 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 90072-72764 |
3SGELU..ST162 厚さ=2.10,T=2.10 |
16 | ||
| 90072-72774 |
3SGELU..ST162 厚さ=2.35,T=2.35 |
16 | ||
| 90072-72788 |
3SGELU..ST162 厚さ=2.70,T=2.70 |
16 | ||
| 90072-72762 |
3SGELU..ST162 厚さ=2.05,T=2.05 |
16 | ||
| 90072-72770 |
3SGELU..ST162 厚さ=2.25,T=2.25 |
16 | ||
| 90072-72760 |
3SGELU..ST162 厚さ=2.00,T=2.00 |
16 | ||
| 90072-72772 |
3SGELU..ST162 厚さ=2.30,T=2.30 |
16 | ||
| 90072-72778 |
3SGELU..ST162 厚さ=2.45,T=2.45 |
16 | ||
| 90072-72786 |
3SGELU..ST162 厚さ=2.65,T=2.65 |
16 | ||
| 90072-72776 |
3SGELU..ST162 厚さ=2.40,T=2.40 |
16 | ||
| 90072-72766 |
3SGELU..ST162 厚さ=2.15,T=2.15 |
16 | ||
| 90072-72768 |
3SGELU..ST162 厚さ=2.20,T=2.20 |
16 | ||
| 90072-72794 |
3SGELU..ST162 厚さ=2.85,T=2.85 |
16 | ||
| 90072-72792 |
3SGELU..ST162 厚さ=2.80,T=2.80 |
16 | ||
| 90072-72780 |
3SGELU..ST162 厚さ=2.50,T=2.50 |
16 | ||
| 90072-72803 |
3SGELU..ST162 厚さ=3.05,T=3.05 |
16 | ||
| 90072-72801 |
3SGELU..ST162 厚さ=3.00,T=3.00 |
16 | ||
| 90072-72796 |
3SGELU..ST162 厚さ=2.90,T=2.90 |
16 | ||
| 90072-72784 |
3SGELU..ST162 厚さ=2.60,T=2.60 |
16 | ||
| 90072-72790 |
3SGELU..ST162 厚さ=2.75,T=2.75 |
16 | ||
| 90072-72782 |
3SGELU..ST162 厚さ=2.55,T=2.55 |
16 | ||
| 90072-72805 |
3SGELU..ST162 厚さ=3.10,T=3.10 |
16 | ||
| 90072-72813 |
3SGELU..ST162 厚さ=3.30,T=3.30 |
16 | ||
| 90072-72811 |
3SGELU..ST162 厚さ=3.25,T=3.25 |
16 | ||
| 90072-72798 |
3SGELU..ST162 厚さ=2.95,T=2.95 |
16 | ||
| 90072-72807 |
3SGELU..ST162 厚さ=3.15,T=3.15 |
16 | ||
| 90072-72809 |
3SGELU..ST162 厚さ=3.20,T=3.20 |
16 | ||
| 13753-16060 |
3SGELU..ST162 厚さ=2.60,T=2.60 |
16 | ||
| 13753-16040 |
3SGELU..ST162 厚さ=2.55,T=2.55 |
16 | ||
| 13753-16200 |
3SGELU..ST162 厚さ=2.95,T=2.95 |
16 | ||
| 13753-16140 |
3SGELU..ST162 厚さ=2.80,T=2.80 |
16 | ||
| 13753-16020 |
3SGELU..ST162 厚さ=2.50,T=2.50 |
16 | ||
| 13753-16220 |
3SGELU..ST162 厚さ=3.00,T=3.00 |
16 | ||
| 13753-16080 |
3SGELU..ST162 厚さ=2.65,T=2.65 |
16 | ||
| 13753-16100 |
3SGELU..ST162 厚さ=2.70,T=2.70 |
16 | ||
| 13753-16180 |
3SGELU..ST162 厚さ=2.90,T=2.90 |
16 | ||
| 13753-16260 |
3SGELU..ST162 厚さ=3.10,T=3.10 |
16 | ||
| 13753-16240 |
3SGELU..ST162 厚さ=3.05,T=3.05 |
16 | ||
| 13753-16120 |
3SGELU..ST162 厚さ=2.75,T=2.75 |
16 | ||
| 13753-16280 |
3SGELU..ST162 厚さ=3.15,T=3.15 |
16 | ||
| 13753-16690 |
3SGELU..ST162 厚さ=2.15,T=2.15 |
16 | ||
| 13753-16710 |
3SGELU..ST162 厚さ=2.25,T=2.25 |
16 | ||
| 13753-16340 |
3SGELU..ST162 厚さ=3.30,T=3.30 |
16 | ||
| 13753-16670 |
3SGELU..ST162 厚さ=2.05,T=2.05 |
16 | ||
| 13753-16680 |
3SGELU..ST162 厚さ=2.10,T=2.10 |
16 | ||
| 13753-16750 |
3SGELU..ST162 厚さ=2.45,T=2.45 |
16 | ||
| 13753-16300 |
3SGELU..ST162 厚さ=3.20,T=3.20 |
16 | ||
| 13753-16660 |
3SGELU..ST162 厚さ=2.00,T=2.00 |
16 | ||
| 13753-16700 |
3SGELU..ST162 厚さ=2.20,T=2.20 |
16 | ||
| 13753-16160 |
3SGELU..ST162 厚さ=2.85,T=2.85 |
16 | ||
| 13753-16720 |
3SGELU..ST162 厚さ=2.30,T=2.30 |
16 | ||
| 13753-16730 |
3SGELU..ST162 厚さ=2.35,T=2.35 |
16 | ||
| 13753-16740 |
3SGELU..ST162 厚さ=2.40,T=2.40 |
16 | ||
| 13753-16320 |
3SGELU..ST162 厚さ=3.25,T=3.25 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 90072-72764 |
3SGELU..ST162 厚さ=2.10,T=2.10 |
16 | ||
| 90072-72774 |
3SGELU..ST162 厚さ=2.35,T=2.35 |
16 | ||
| 90072-72788 |
3SGELU..ST162 厚さ=2.70,T=2.70 |
16 | ||
| 90072-72762 |
3SGELU..ST162 厚さ=2.05,T=2.05 |
16 | ||
| 90072-72770 |
3SGELU..ST162 厚さ=2.25,T=2.25 |
16 | ||
| 90072-72760 |
3SGELU..ST162 厚さ=2.00,T=2.00 |
16 | ||
| 90072-72772 |
3SGELU..ST162 厚さ=2.30,T=2.30 |
16 | ||
| 90072-72778 |
3SGELU..ST162 厚さ=2.45,T=2.45 |
16 | ||
| 90072-72786 |
3SGELU..ST162 厚さ=2.65,T=2.65 |
16 | ||
| 90072-72776 |
3SGELU..ST162 厚さ=2.40,T=2.40 |
16 | ||
| 90072-72766 |
3SGELU..ST162 厚さ=2.15,T=2.15 |
16 | ||
| 90072-72768 |
3SGELU..ST162 厚さ=2.20,T=2.20 |
16 | ||
| 90072-72794 |
3SGELU..ST162 厚さ=2.85,T=2.85 |
16 | ||
| 90072-72792 |
3SGELU..ST162 厚さ=2.80,T=2.80 |
16 | ||
| 90072-72780 |
3SGELU..ST162 厚さ=2.50,T=2.50 |
16 | ||
| 90072-72803 |
3SGELU..ST162 厚さ=3.05,T=3.05 |
16 | ||
| 90072-72801 |
3SGELU..ST162 厚さ=3.00,T=3.00 |
16 | ||
| 90072-72796 |
3SGELU..ST162 厚さ=2.90,T=2.90 |
16 | ||
| 90072-72784 |
3SGELU..ST162 厚さ=2.60,T=2.60 |
16 | ||
| 90072-72790 |
3SGELU..ST162 厚さ=2.75,T=2.75 |
16 | ||
| 90072-72782 |
3SGELU..ST162 厚さ=2.55,T=2.55 |
16 | ||
| 90072-72805 |
3SGELU..ST162 厚さ=3.10,T=3.10 |
16 | ||
| 90072-72813 |
3SGELU..ST162 厚さ=3.30,T=3.30 |
16 | ||
| 90072-72811 |
3SGELU..ST162 厚さ=3.25,T=3.25 |
16 | ||
| 90072-72798 |
3SGELU..ST162 厚さ=2.95,T=2.95 |
16 | ||
| 90072-72807 |
3SGELU..ST162 厚さ=3.15,T=3.15 |
16 | ||
| 90072-72809 |
3SGELU..ST162 厚さ=3.20,T=3.20 |
16 | ||
| 13753-16060 |
3SGELU..ST162 厚さ=2.60,T=2.60 |
16 | ||
| 13753-16040 |
3SGELU..ST162 厚さ=2.55,T=2.55 |
16 | ||
| 13753-16200 |
3SGELU..ST162 厚さ=2.95,T=2.95 |
16 | ||
| 13753-16140 |
3SGELU..ST162 厚さ=2.80,T=2.80 |
16 | ||
| 13753-16020 |
3SGELU..ST162 厚さ=2.50,T=2.50 |
16 | ||
| 13753-16220 |
3SGELU..ST162 厚さ=3.00,T=3.00 |
16 | ||
| 13753-16080 |
3SGELU..ST162 厚さ=2.65,T=2.65 |
16 | ||
| 13753-16100 |
3SGELU..ST162 厚さ=2.70,T=2.70 |
16 | ||
| 13753-16180 |
3SGELU..ST162 厚さ=2.90,T=2.90 |
16 | ||
| 13753-16260 |
3SGELU..ST162 厚さ=3.10,T=3.10 |
16 | ||
| 13753-16240 |
3SGELU..ST162 厚さ=3.05,T=3.05 |
16 | ||
| 13753-16120 |
3SGELU..ST162 厚さ=2.75,T=2.75 |
16 | ||
| 13753-16280 |
3SGELU..ST162 厚さ=3.15,T=3.15 |
16 | ||
| 13753-16690 |
3SGELU..ST162 厚さ=2.15,T=2.15 |
16 | ||
| 13753-16710 |
3SGELU..ST162 厚さ=2.25,T=2.25 |
16 | ||
| 13753-16340 |
3SGELU..ST162 厚さ=3.30,T=3.30 |
16 | ||
| 13753-16670 |
3SGELU..ST162 厚さ=2.05,T=2.05 |
16 | ||
| 13753-16680 |
3SGELU..ST162 厚さ=2.10,T=2.10 |
16 | ||
| 13753-16750 |
3SGELU..ST162 厚さ=2.45,T=2.45 |
16 | ||
| 13753-16300 |
3SGELU..ST162 厚さ=3.20,T=3.20 |
16 | ||
| 13753-16660 |
3SGELU..ST162 厚さ=2.00,T=2.00 |
16 | ||
| 13753-16700 |
3SGELU..ST162 厚さ=2.20,T=2.20 |
16 | ||
| 13753-16160 |
3SGELU..ST162 厚さ=2.85,T=2.85 |
16 | ||
| 13753-16720 |
3SGELU..ST162 厚さ=2.30,T=2.30 |
16 | ||
| 13753-16730 |
3SGELU..ST162 厚さ=2.35,T=2.35 |
16 | ||
| 13753-16740 |
3SGELU..ST162 厚さ=2.40,T=2.40 |
16 | ||
| 13753-16320 |
3SGELU..ST162 厚さ=3.25,T=3.25 |
16 | ||
| Common parts | ||||
| 90105-10032 | ||||
| 90119-10430 | ||||
| 90119-10486 | ||||
