ST162-AEMVF (1985)

Toyota Carina Ff

Production Aug 1985 - Apr 1988
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

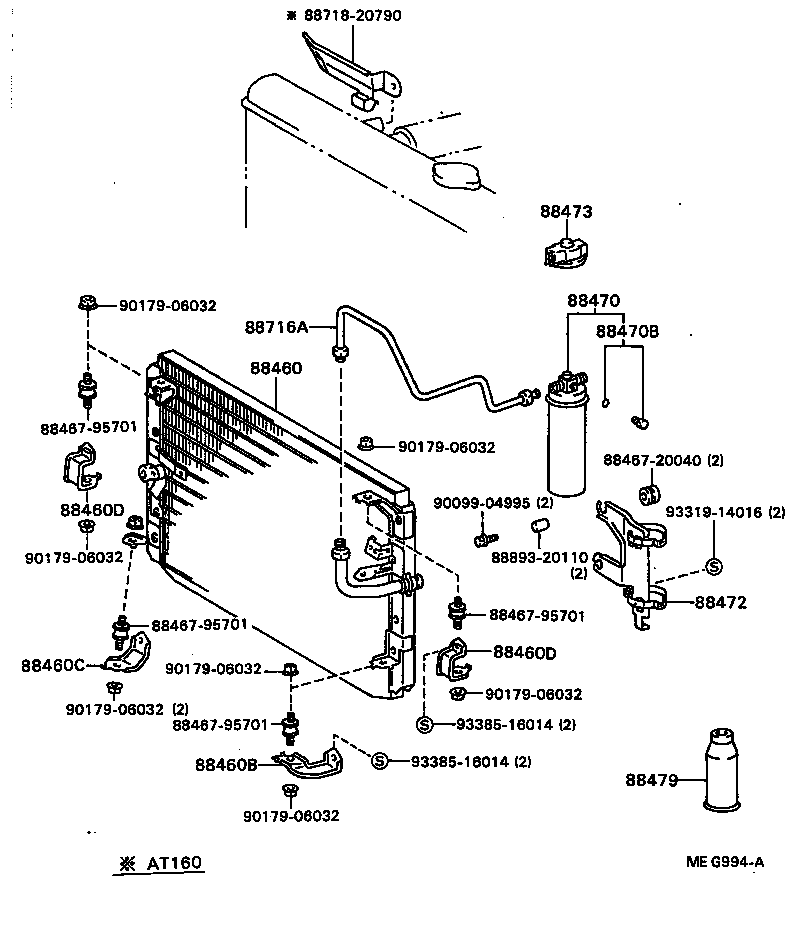

ILLUST NO. 1 OF 3(8508- )AT160,ST162

Click highlighted areas on diagram

diagram 88460 88460B 88460C 88460D 88460D 8846720040 8846795701 8846795701 8846795701 8846795701 88470 88470B 88472 88473 88479 88716A 8871820790 8889320110 9009904995 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9331914016 9338516014 9338516014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20230

AT160,ST162

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-20700

AT160,ST162

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-20720

AT160,ST162

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-20680

AT160,ST162

LH

 1
88688-20790

AT160,ST162

RH

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-20680

AT160,ST162

LH

 1
88688-20790

AT160,ST162

RH

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AT15#,160,CT150,ST150,162

 1
88470B - BOLT, FUSE
88475-12020

AT15#,160,CT150,ST150,162

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20020

AT160,ST162

 1
88473 - CAP, COOLER RECEIVER TANK
88894-12111

AT15#,160,CT150,ST150,162

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AT15#,160,CT150,ST150,162

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B160

AT160,ST162

 1
Common parts
88467-20040
88467-95701
88718-20790
88893-20110
90099-04995
90179-06032
93319-14016
93385-16014

ILLUST NO. 2 OF 3(8508- )AT160,ST162

Click highlighted areas on diagram

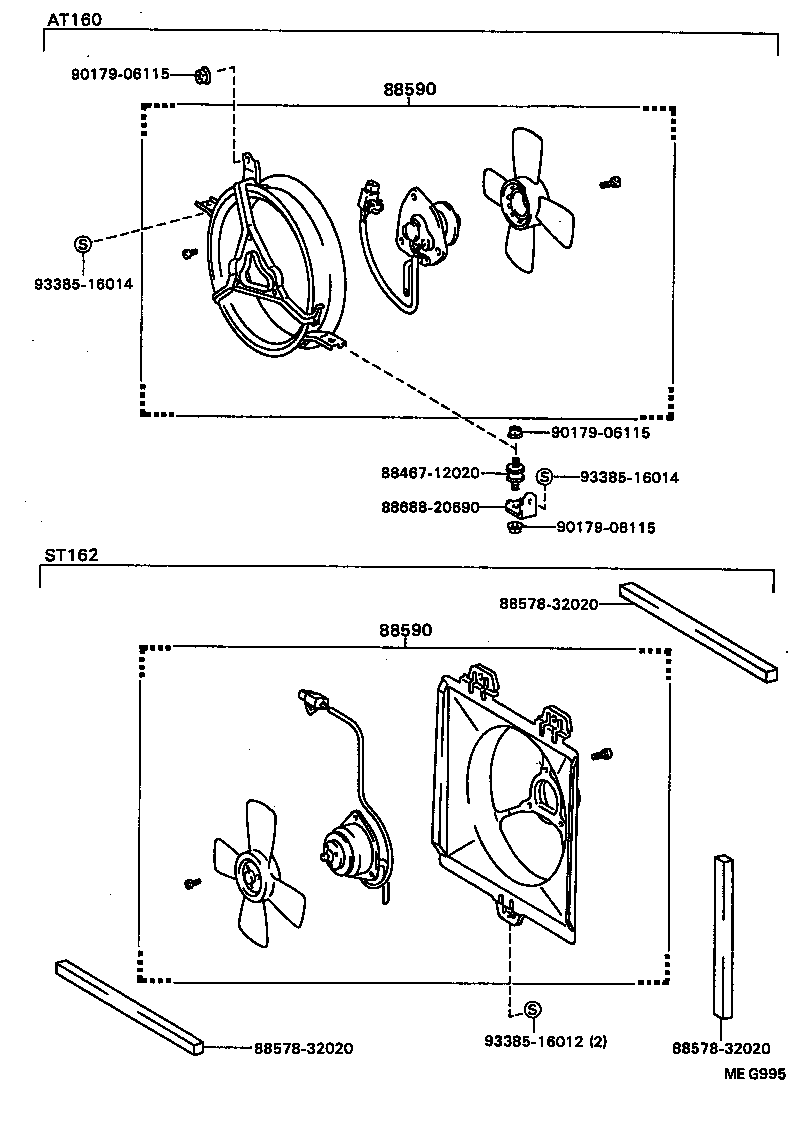

diagram 8846712020 8857832020 8857832020 8857832020 88590 88590 8868820690 9017906115 9017906115 9017906115 9338516012 9338516014 9338516014
Part # Description Qty Price
88590 - BLOWER ASSY, W/SHROUD
88590-20130

ST162

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20130

ST162

 1
Common parts
88467-12020
88578-32020
88688-20690
90179-06115
93385-16012
93385-16014

ILLUST NO. 3 OF 3(8508- )AT160,ST162

Click highlighted areas on diagram

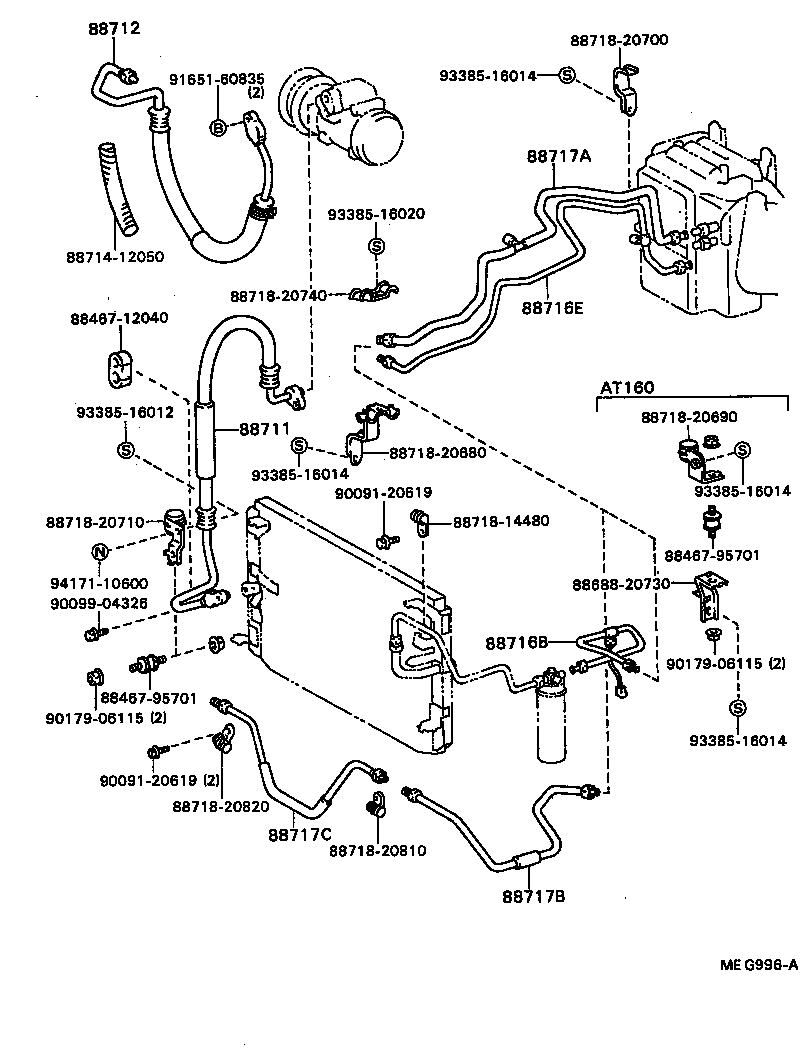

diagram 8846712040 8846795701 8846795701 8868820730 88711 88712 8871412050 88716B 88716E 88717A 88717B 88717C 8871814480 8871820680 8871820690 8871820700 8871820710 8871820740 8871820810 8871820820 9009120619 9009120619 9009904326 9017906115 9017906115 9165160835 9338516012 9338516014 9338516014 9338516014 9338516014 9338516020 9417110600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20500

ST162

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20630

ST162

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88710-20110

AT160,ST162

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B180

AT160,ST162

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20580

AT160,ST162

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20600

AT160,ST162

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20570

AT160,ST162

 1
Common parts
88467-12040
88467-95701
88688-20730
88714-12050
88718-14480
88718-20680
88718-20690
88718-20700
88718-20710
88718-20740
88718-20810
88718-20820
90091-20619
90099-04326
90179-06115
91651-60835
93385-16012
93385-16014
93385-16020
94171-10600
