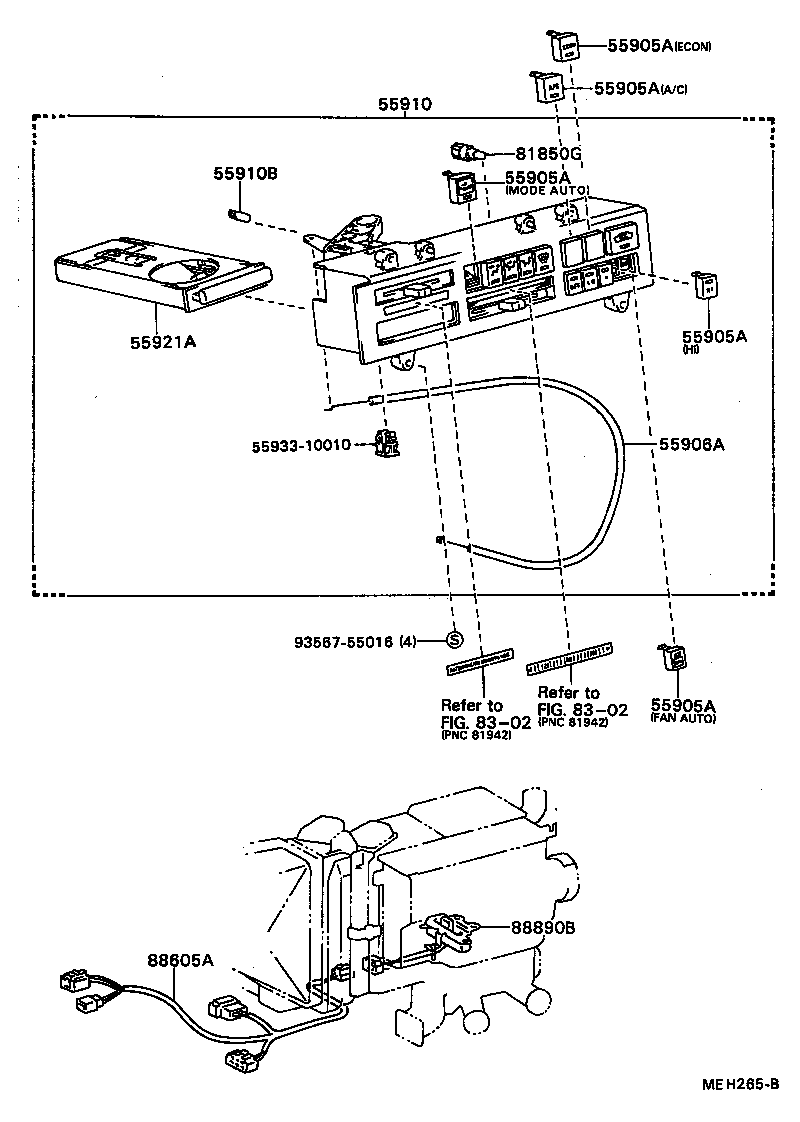

Toyota Carina ff ST162 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
55905A - KNOB, HEATER CONTROL
55905-20180	ST150,162..GTR,SE W/*PHC FAN-AUTO	05/1986 - 04/1988	1
55905-12060	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	5
55905-20150	ST150,162..GTR,SE W/*PHC A/C	05/1986 - 04/1988	1
55905-20240	ST150,162..GTR,SE W/*PHC HI	05/1986 - 04/1988	1
55905-20170	ST150,162..GTR,SE W/*PHC MODE-AUTO	05/1986 - 04/1988	1
55905-20160	ST150,162..GTR,SE W/*PHC ECON	05/1986 - 04/1988	1
55905A - KNOB, HEATER CONTROL
55905-20180	ST150,162..GTR,SE W/*PHC FAN-AUTO	05/1986 - 04/1988	1
55905-12060	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	5
55905-20150	ST150,162..GTR,SE W/*PHC A/C	05/1986 - 04/1988	1
55905-20240	ST150,162..GTR,SE W/*PHC HI	05/1986 - 04/1988	1
55905-20170	ST150,162..GTR,SE W/*PHC MODE-AUTO	05/1986 - 04/1988	1
55905-20160	ST150,162..GTR,SE W/*PHC ECON	05/1986 - 04/1988	1
55905A - KNOB, HEATER CONTROL
55905-20180	ST150,162..GTR,SE W/*PHC FAN-AUTO	05/1986 - 04/1988	1
55905-12060	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	5
55905-20150	ST150,162..GTR,SE W/*PHC A/C	05/1986 - 04/1988	1
55905-20240	ST150,162..GTR,SE W/*PHC HI	05/1986 - 04/1988	1
55905-20170	ST150,162..GTR,SE W/*PHC MODE-AUTO	05/1986 - 04/1988	1
55905-20160	ST150,162..GTR,SE W/*PHC ECON	05/1986 - 04/1988	1
55905A - KNOB, HEATER CONTROL
55905-20180	ST150,162..GTR,SE W/*PHC FAN-AUTO	05/1986 - 04/1988	1
55905-12060	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	5
55905-20150	ST150,162..GTR,SE W/*PHC A/C	05/1986 - 04/1988	1
55905-20240	ST150,162..GTR,SE W/*PHC HI	05/1986 - 04/1988	1
55905-20170	ST150,162..GTR,SE W/*PHC MODE-AUTO	05/1986 - 04/1988	1
55905-20160	ST150,162..GTR,SE W/*PHC ECON	05/1986 - 04/1988	1
55905A - KNOB, HEATER CONTROL
55905-20180	ST150,162..GTR,SE W/*PHC FAN-AUTO	05/1986 - 04/1988	1
55905-12060	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	5
55905-20150	ST150,162..GTR,SE W/*PHC A/C	05/1986 - 04/1988	1
55905-20240	ST150,162..GTR,SE W/*PHC HI	05/1986 - 04/1988	1
55905-20170	ST150,162..GTR,SE W/*PHC MODE-AUTO	05/1986 - 04/1988	1
55905-20160	ST150,162..GTR,SE W/*PHC ECON	05/1986 - 04/1988	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20250	ST150,162..GTR,SE W/*PHC,R-L CONTROL	05/1986 - 04/1988	1
55906-20160	AT15#,160,CT150,ST150,162 W/*LHC R-L CONTROL	05/1984 - 05/1986	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20360	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
55900-20421	ST150,162..GTR,SE *PHC	09/1986 - 04/1988	1
55900-20420	ST150,162..GTR,SE *PHC	05/1986 - 09/1986	1
55910B - BULB, HEATER CONTROL
90981-11014	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
55921A - RETAINER, HEATER CONTROL
55921-20090	ST150,162..GTR,SE	05/1986 - 04/1988	1
81850G - LAMP ASSY, INDICATOR
81850-20160	ST150,162..GTR,SE	05/1986 - 04/1988	1
88605A - HARNESS SUB-ASSY, COOLER WIRING
88605-20720	ST150,162..GTR,SE	05/1986 - 04/1988	1
88890B - SWITCH ASSY, THERMOSTAT
88890-20080	ST150,162..GTR,SE	05/1986 - 04/1988	1
Common parts
55933-10010
93567-55016
Linked diagrams
8302

ST162-AEMVF (1985)

(8605- )ST150,162..GTR,SE
