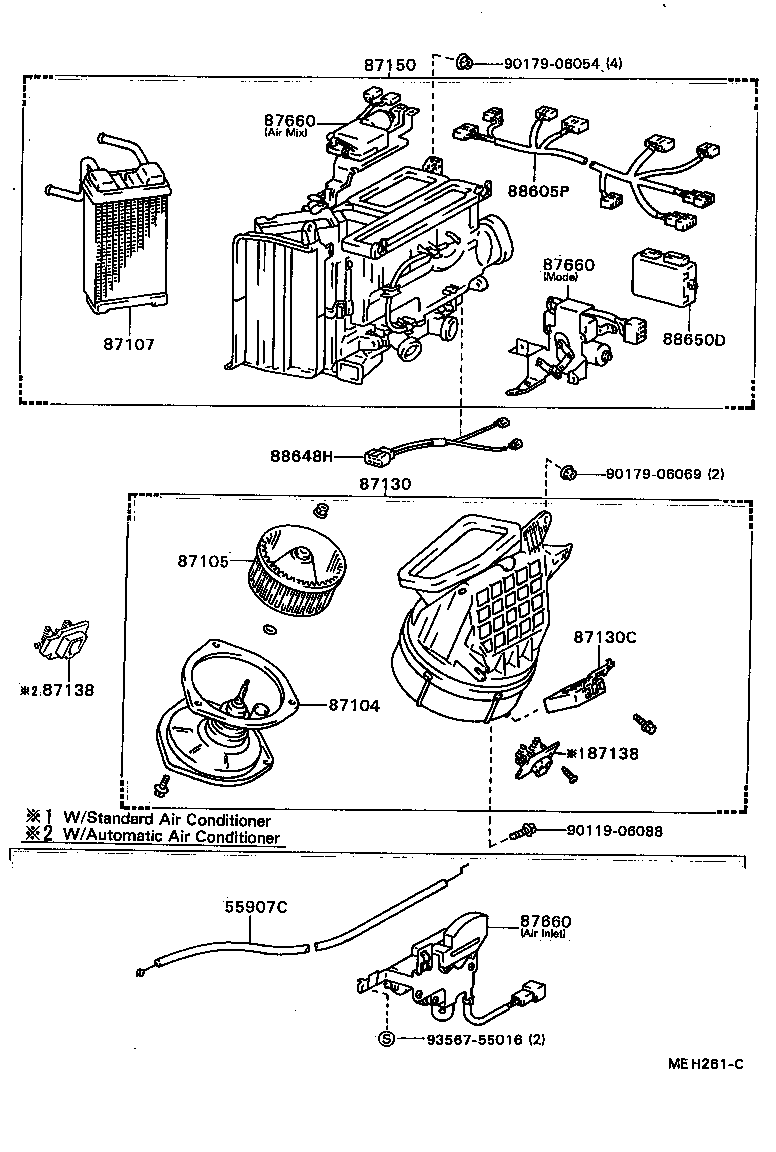

Toyota Carina ff ST162 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20050	ST150,162..GTR,SE	05/1986 - 04/1988	1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-20140	AT15#,160,CT150,ST150,162	05/1984 - 10/1985	1
87104-20200	AT15#,160,CT150,ST150,162	10/1985 - 04/1988	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20290	ST150,162..GTR,SE W/*PHC	05/1986 - 04/1988	1
87107-20290	AT15#,160,ST150,162 COLD SPEC	05/1984 - 05/1986	1
87107-20300	AT15#,160,ST150,162	05/1984 - 05/1986	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20140	AT15#,160,CT150,ST150,162	05/1984 - 10/1985	1
87130-20250	ST150,162..GTR,SE W/*PHC	05/1986 - 04/1988	1
87130-20240	AT15#,160,CT150,ST150,162	10/1985 - 05/1986	1
87130C - RELAY, HEATER BLOWER MOTOR
88630-20040	ST150,162..GTR,SE	05/1986 - 04/1988	1
87138 - RESISTOR, HEATER BLOWER
87138-20060	AT15#,160,CT150,ST150,162	05/1984 - 10/1985	1
88635-20070	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST *AAC	10/1985 - 04/1988	1
87138-20110	AT15#,160,CT150,ST150,162	10/1985 - 05/1986	1
88635-20050	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST *AAC	05/1984 - 10/1985	1
87138-20060	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
87138 - RESISTOR, HEATER BLOWER
87138-20060	AT15#,160,CT150,ST150,162	05/1984 - 10/1985	1
88635-20070	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST *AAC	10/1985 - 04/1988	1
87138-20110	AT15#,160,CT150,ST150,162	10/1985 - 05/1986	1
88635-20050	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST *AAC	05/1984 - 10/1985	1
87138-20060	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
87150 - RADIATOR ASSY, HEATER
87150-20290	AT15#,160,ST150,162	05/1984 - 05/1986	1
87150-20330	AT15#,160,ST150,162 COLD SPEC	05/1984 - 05/1986	1
87150-20490	ST150,162..GTR,SE W/*PHC	05/1986 - 04/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-20040	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST	05/1984 - 05/1986	1
87106-20010	ST150,162..GTR,SE W/*PHC,AIR INLET	05/1986 - 04/1988	1
88660-20160	ST150,162..GTR,SE W/*PHC,AIR MIX	05/1986 - 04/1988	1
88660-20140	ST150,162..GTR,SE W/*PHC,MODE	05/1986 - 04/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-20040	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST	05/1984 - 05/1986	1
87106-20010	ST150,162..GTR,SE W/*PHC,AIR INLET	05/1986 - 04/1988	1
88660-20160	ST150,162..GTR,SE W/*PHC,AIR MIX	05/1986 - 04/1988	1
88660-20140	ST150,162..GTR,SE W/*PHC,MODE	05/1986 - 04/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-20040	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST	05/1984 - 05/1986	1
87106-20010	ST150,162..GTR,SE W/*PHC,AIR INLET	05/1986 - 04/1988	1
88660-20160	ST150,162..GTR,SE W/*PHC,AIR MIX	05/1986 - 04/1988	1
88660-20140	ST150,162..GTR,SE W/*PHC,MODE	05/1986 - 04/1988	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-20800	ST150,162..GTR,SE	05/1986 - 04/1988	1
88648H - WIRE, AIR CONDITIONER
88648-20270	ST150,162..GTR,SE	05/1986 - 04/1988	1
88650D - AMPLIFIER ASSY
88650-20270	ST150,162..GTR,SE	05/1986 - 04/1988	1
Common parts
90119-06088
90179-06054
90179-06069
93567-55016

ST162-AEMVF (1985)

(8605- )ST150,162..GTR,SE
