ST162-AEMVF (1985)

Toyota Carina Ff

Production Aug 1985 - Apr 1988
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

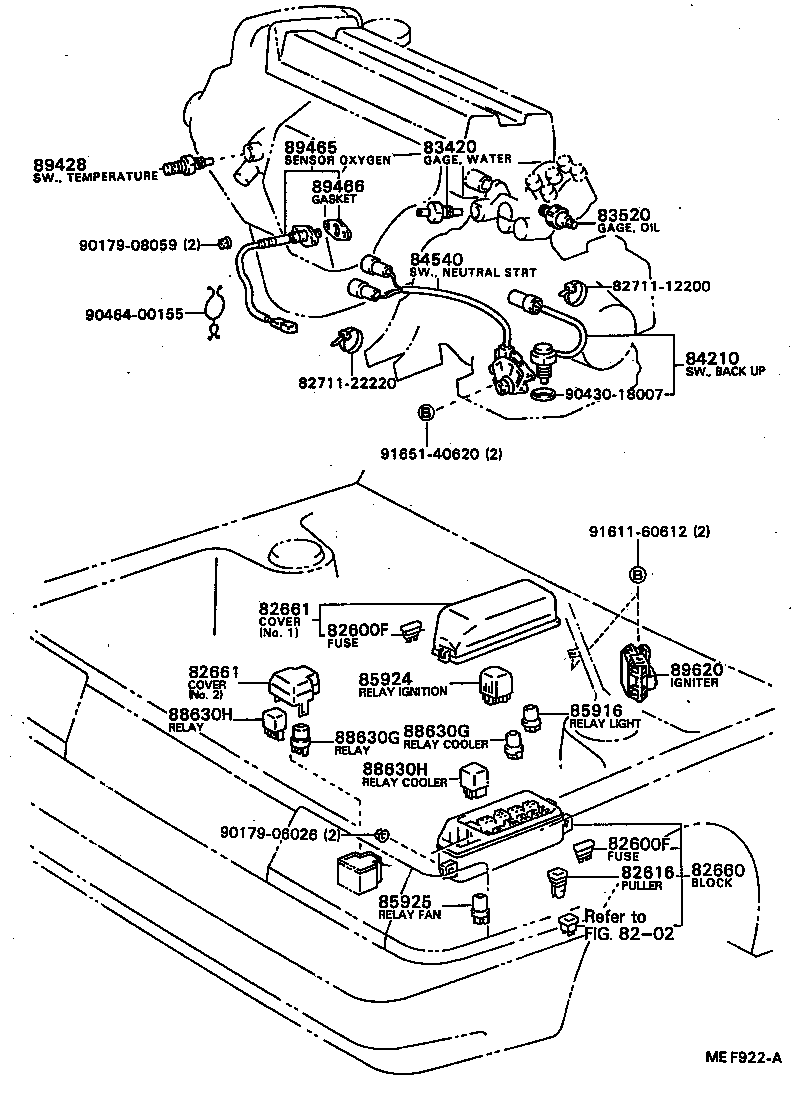

ILLUST NO. 1 OF 5(8508- )ST162

Click highlighted areas on diagram

diagram 8202 82600F 82600F 82616 82660 82661 82661 8271112200 8271122220 83420 83520 84210 84540 85916 85924 85925 88630G 88630G 88630H 88630H 89428 89465 89466 89620 9017906026 9017908059 9043018007 9046400155 9161160612 9165140620
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09002

AT15#,160,CT150,ST150,162

10A,10A

 1
90982-09003

AT15#,160,CT150,ST150,162

15A,15A

 6
90982-09004

AT15#,160,CT150,ST150,162

20A,黄,20A

 4
90982-09005

AT15#,160,CT150,ST150,162

7.5A,7.5A

 2
90982-07011

AT160,ST162

30A,緑,30A

 1
82600F - FUSE, FUSE BLOCK
90982-09002

AT15#,160,CT150,ST150,162

10A,10A

 1
90982-09003

AT15#,160,CT150,ST150,162

15A,15A

 6
90982-09004

AT15#,160,CT150,ST150,162

20A,黄,20A

 4
90982-09005

AT15#,160,CT150,ST150,162

7.5A,7.5A

 2
90982-07011

AT160,ST162

30A,緑,30A

 1
82616 - PULLER, FUSE
82616-12010

AT15#,160,CT150,ST150,162

 1
82616-12020

AT160,ST162

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-20180

AT160,ST162

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-20130

AT160,ST162

ENGINE ROOM,NO.2

 1
82672-20060

AT160,ST162

ENGINE ROOM,NO.1

 1
82661-32030

AT15#,160,CT150,ST150,162

COWL SIDE

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-20130

AT160,ST162

ENGINE ROOM,NO.2

 1
82672-20060

AT160,ST162

ENGINE ROOM,NO.1

 1
82661-32030

AT15#,160,CT150,ST150,162

COWL SIDE

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

AT15#,160,CT150,ST150,162

 1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-14043

ST150,162

 1
83520-14042

AT160,ST150,162

 1
83520-14042

ST150,162..GTR,SE

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

AT15#,160,CT150,ST150,162..MTM

 1
85916 - RELAY, LIGHT CONTROL
90987-02006

AT160,ST162

HEAD

 1
90987-01003

AT160,ST162

TAIL

 1
85924 - RELAY, IGNITION CONTROL
85913-30020

AT15#,160,CT150,ST150,162

 1
90987-04002

AT15#,160,CT150,ST150,162

 1
85925 - RELAY, RADIATOR FAN
90987-03001

AT15#,160,CT150,ST150,162

 1
88630G - RELAY ASSY, COOLER
90987-02004

AT15#,160,CT150,ST150,162

 1
88630G - RELAY ASSY, COOLER
90987-02004

AT15#,160,CT150,ST150,162

 1
88630H - RELAY ASSY, COOLER
88630-32010

AT15#,160,CT150,ST150,162

 1
88630H - RELAY ASSY, COOLER
88630-32010

AT15#,160,CT150,ST150,162

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-32010

ST150,162

 1
89428-20060

ST150,162

 1
89465 - SENSOR, OXYGEN
89465-29175

ST162

 1
89466 - GASKET, OXYGEN SENSOR
89466-32010

ST162

 1
89620 - IGNITER ASSY
89620-20230

ST162

 1
Common parts
82711-12200
82711-22220
90179-06026
90179-08059
90430-18007
90464-00155
91611-60612
91651-40620
Linked diagrams
8202
