Toyota Carina ff ST162 WIRING & CLAMP

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
86203-20150	AT15#,160,ST150,162 FENDER LH	05/1984 - 04/1988	1
90980-07239	ST162 ALTERNATOR BRACKET	08/1985 - 04/1988	1
90980-07271	AT15#,160,ST150,162 CLUTCH HOUSING	08/1985 - 04/1988	1
90980-07206	AT160,ST162 FENDER RH	08/1985 - 04/1988	1
90980-07307	ST162 ALTERNATOR BRACKET	04/1988 - 04/1988	1
82001 - CABLE, BOND, NO.1
86203-20150	AT15#,160,ST150,162 FENDER LH	05/1984 - 04/1988	1
90980-07239	ST162 ALTERNATOR BRACKET	08/1985 - 04/1988	1
90980-07271	AT15#,160,ST150,162 CLUTCH HOUSING	08/1985 - 04/1988	1
90980-07206	AT160,ST162 FENDER RH	08/1985 - 04/1988	1
90980-07307	ST162 ALTERNATOR BRACKET	04/1988 - 04/1988	1
82001 - CABLE, BOND, NO.1
86203-20150	AT15#,160,ST150,162 FENDER LH	05/1984 - 04/1988	1
90980-07239	ST162 ALTERNATOR BRACKET	08/1985 - 04/1988	1
90980-07271	AT15#,160,ST150,162 CLUTCH HOUSING	08/1985 - 04/1988	1
90980-07206	AT160,ST162 FENDER RH	08/1985 - 04/1988	1
90980-07307	ST162 ALTERNATOR BRACKET	04/1988 - 04/1988	1
82001 - CABLE, BOND, NO.1
86203-20150	AT15#,160,ST150,162 FENDER LH	05/1984 - 04/1988	1
90980-07239	ST162 ALTERNATOR BRACKET	08/1985 - 04/1988	1
90980-07271	AT15#,160,ST150,162 CLUTCH HOUSING	08/1985 - 04/1988	1
90980-07206	AT160,ST162 FENDER RH	08/1985 - 04/1988	1
90980-07307	ST162 ALTERNATOR BRACKET	04/1988 - 04/1988	1
82111 - WIRE, ENGINE ROOM MAIN
82111-20620	ST162	08/1985 - 05/1986	1
82111-20730	ST162	05/1986 - 04/1988	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-20030	AT160,ST162	08/1985 - 04/1988	1
82121 - WIRE, ENGINE
82121-20703	ST162..5F	09/1986 - 04/1988	1
82121-20700	ST162..5F	08/1985 - 10/1985	1
82121-20701	ST162..5F	10/1985 - 07/1986	1
82121-20702	ST162..5F	07/1986 - 09/1986	1
82122 - WIRE, ENGINE, NO.2
82122-20070	ST162	08/1985 - 05/1986	1
82122-20071	ST162	05/1986 - 04/1988	1
82131 - WIRE, COWL
82131-2D020	ST162 W/AUTO DRIVE	08/1985 - 09/1985	1
82131-2D010	AT160,ST162 W/PW OR SNR,W/O AUTO DRIVE	08/1985 - 09/1985	1
82131-2D021	ST162 W/AUTO DRIVE	09/1985 - 04/1988	1
82131-2D230	ST162..5F	05/1986 - 04/1988	1
82131-2D240	ST162..5F W/*AD	05/1986 - 04/1988	1
82131-2D011	AT160,ST162 W/PW OR SNR,W/O AUTO DRIVE	09/1985 - 04/1988	1
82210C - FUSIBLE LINK
90982-08203	AT160,CT150,ST162 80A,ｵｽ端子,黒,80A	05/1984 - 04/1988	1
90982-08188	AT15#,160,CT150,ST150,162 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE A	05/1984 - 04/1988	2
90982-08189	AT160,ST162 40A,ﾒｽ端子,緑,40A	08/1985 - 04/1988	1
90982-08223	AT160,ST162 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,TYPE B	08/1985 - 04/1988	1
82210C - FUSIBLE LINK
90982-08203	AT160,CT150,ST162 80A,ｵｽ端子,黒,80A	05/1984 - 04/1988	1
90982-08188	AT15#,160,CT150,ST150,162 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE A	05/1984 - 04/1988	2
90982-08189	AT160,ST162 40A,ﾒｽ端子,緑,40A	08/1985 - 04/1988	1
90982-08223	AT160,ST162 30A,ｵｽ端子,ﾋﾟﾝｸ,30A,TYPE B	08/1985 - 04/1988	1
82345 - DIODE
82345-20040	AT150,160,ST162 NO.2	09/1986 - 04/1988	2
82345-32010	AT151,160,CT150,ST150,162..GT,GTR,SE,ST NO.1	09/1986 - 04/1988	3
82823 - CAP, TERMINAL, NO.1
82823-22060	ST162 ALTERNATOR	07/1986 - 04/1988	1
Common parts
90119-06005
90119-06008
90179-06088
94180-40600
Linked diagrams
8201

ST162-AEMVF (1985)

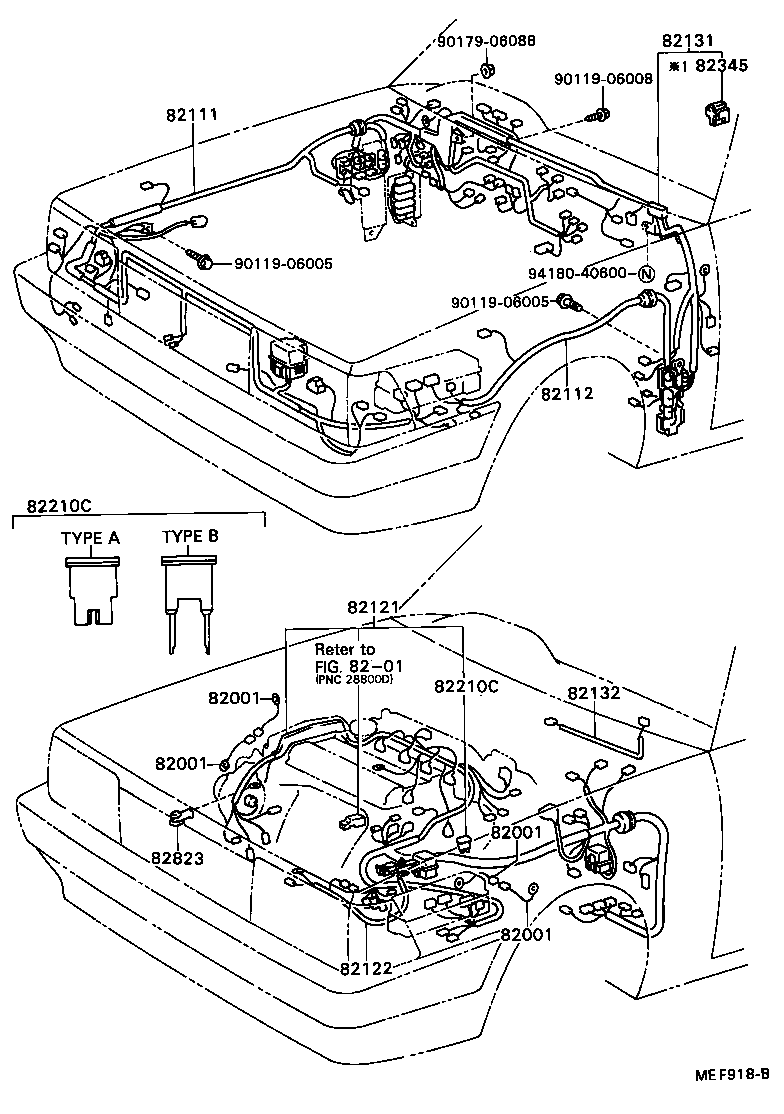

ILLUST NO. 1 OF 5(8508- )ST162
