ST162-AEMVF (1985)

Toyota Carina Ff

Production Aug 1985 - Apr 1988
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

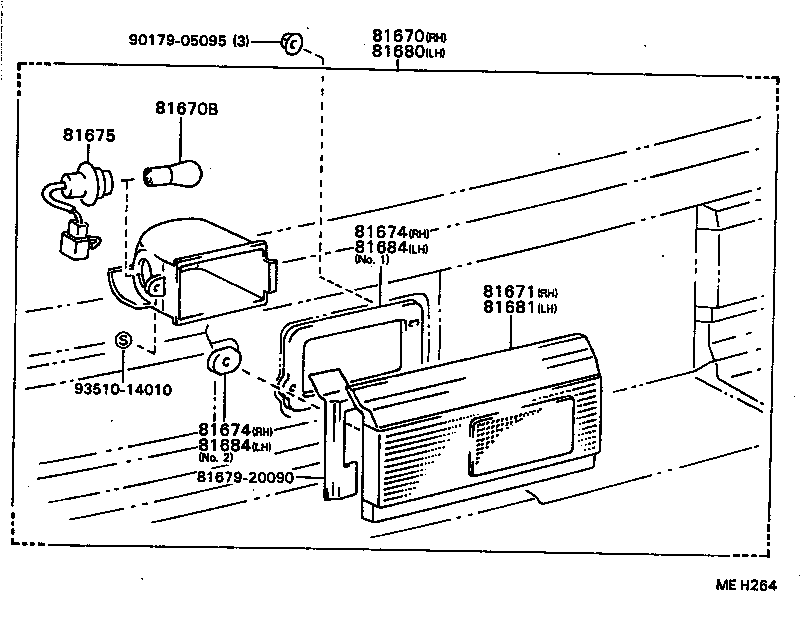

Click highlighted areas on diagram

diagram 81670 81670B 81671 81674 81674 81675 8167920090 81680 81681 81684 81684 9017905095 9351014010
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-20090

AT15#,160,CT150,ST150,162

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11230

AT15#,160,CT150,ST150,162

12V 23W,12V 23W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-20090

AT15#,160,CT150,ST150,162

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81672-20090

AT15#,160,CT150,ST150,162

NO.1

 1
81674-20090

AT15#,160,CT150,ST150,162

NO.2

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81672-20090

AT15#,160,CT150,ST150,162

NO.1

 1
81674-20090

AT15#,160,CT150,ST150,162

NO.2

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-20090

AT15#,160,CT150,ST150,162

 2
81680 - LAMP ASSY, BACK UP, LH
81680-20050

AT15#,160,CT150,ST150,162

 1
81681 - LENS, BACK-UP LAMP, LH
81681-20050

AT15#,160,CT150,ST150,162

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-20090

AT15#,160,CT150,ST150,162

NO.2

 1
81672-20090

AT15#,160,CT150,ST150,162

NO.1

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-20090

AT15#,160,CT150,ST150,162

NO.2

 1
81672-20090

AT15#,160,CT150,ST150,162

NO.1

 1
Common parts
81679-20090
90179-05095
93510-14010
